PSE M22 with cable PUR
PSE M30
Description
- Designed for IP67 applications
- Tight housing, potted PUR-Cable
- Switch with Ring Illumination
- PUR-Cable with 15m length
- RGB: flexible input voltage 5 - 28 VDC at constant brightness
- 7 possible colors with RGB configuration
Unique Selling Proposition
- Designed for IP67 applications
- Waterproof – from the front surface to the connection point
- High quality PUR cable 15m
- RGB illumination and variable input voltage
Characteristics
- Housing material: stainless steel 1.4462, ring illumination made of polyamide
- For use in harsh environments, both indoors and outdoors (see technical data)
Other versions on request
- Switch for longer switching signal duration, type: PSE IV
- Switch for explosion proof applications, type: PSE EX
- Switch with enhanced vandal proof protection, type: PSE HI
Electrical Data
Switching Function
momentary
Supply Voltage RGB
5 - 28 VDC
Switching Voltage
max. 42 / 60 VAC/DC
Switching current
max. 100 mA
Electrical Rating
1 W
Lifetime
20 million actuations at Rated Switching Capacity
Switch Resistance OFF
> 10 MΩ
Switch Resistance ON
< 20 Ω actuated (Ta = 25°C)
Capacity
5 nF
N.O. Closing Impulse Duration
20- 1000 ms depending on actuating force, time and speed
Contact Configuration
free polarity
RGB Illumination
Current Consumtion (max per color)
16.5 mA @ 5 VDC
8.2 mA @ 12 VDC
5.5 mA @ 24 VDC
4.8 mA @ 28 VDC
Mechanical Data
Actuating Force
≤ 3 N at ambient temperature
Actuating Travel
0.002 mm
Shock Protection
IK02
Mounting screw torque
2.5 Nm
Climatical Data
Operating Temperature
-40 to 85 °C
Storage Temperature
-40 to 85 °C
IP-Protection
IP67 acc. to IEC 60529, IP69K acc. to DIN 40050-9
Environmental Assessment
+55°C␣/ 93% r.h. acc. to DIN EN 60068-2-30
Salt Spray Test (acc. to DIN 50021-SS)
24 h / 48 h / 96 h Residence Time
Material
Housing (depending on type)
Stainless Steel 1.4462
Actuating Area / Insert (with Ring Illumination)
Stainless Steel 1.4462
Illuminated Ring (Ring Illumination)
Polyamide
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | EMC Directive: | EMC directive 2014/30/EU |
|
Suitable for applications acc. | MIL-STD: | 202F Method 107G, 202F Method 204D, 202F Method 213B, 416D Method RS103, 810E Method 501.3, 810E Method 502.3, 810E Method 507.3 |
|
Suitable for applications acc. | VDE Certificate Number: | DIN EN 61000-4-2, DIN EN 61000-4-4, DIN EN 61000-4-5 |
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Diagrams

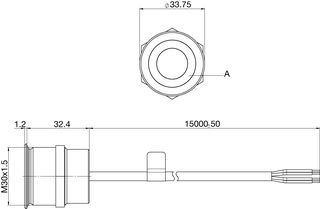

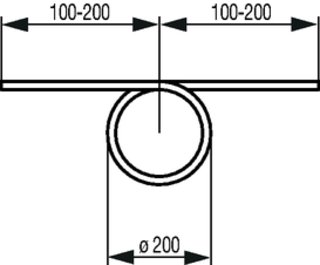

| PSE with cable |
|
| A)Pink cable - red LED B)Green cable - green LED C)Yellow cable - blue LEDD) Cable 4 brown E) Cable 5/6 white F) Cable 5/6 grey |
- Actuating elements in ESD safe packaging
- Screw nuts and sealing O-ring in a bag (enclosed in the box)
Short Table of Variants PSE with cable Open complete table PSE with cable
| Mounting Diameter [mm] | Terminal |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | PUR cable | 3-105-290 | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 30 | PUR cable | 3-102-521 | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Legend: Type: PSE NO = normaly open RI = Ring Illumination ES = Stainless steel F = Finger guidance E = without finger guidance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Nut with gasket are enclosed in the box. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Other mounting diameters, materials, colors, connections, supply voltages possible available on request. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging unit | 1 in box with insert or packed in air cushion bags |
