PSE M30 AE AI Indicator
3 Variants
Description
- The indicators are available with lettering, ring illumination or area illumination
- RGB, RGY: flexible input voltage from 5 - 28 VDC at constant brightness
- With color combination RGB and RGY
- 7 possible colors with RGB configuration
- 3 possible colors with RGY configuration
- Can be combined with the available piezo switch variants
- Flexible wire connection
Unique Selling Proposition
- Variety of design options regarding size, colour, material and connections
- High reliability, long lifetime
- With RGB or RGY ring illumination or area illumination
Characteristics
- For use in harsh environments, both indoors and outdoors (see technical data)
Electrical Data
ESD-protection-classs
8 kV Class 3B
Supply Voltage
Point Illumination without series resistor
Supply Voltage RGB
5 - 28 VDC
Mechanical Data
Mounting screw torque
2.5 Nm
Shock Protection
IK02
Climatical Data
Operating Temperature
-40 to 85 °C
Storage Temperature
-40 to 85 °C
IP-Protection
IP67 acc. to IEC 60529, IP69K acc. to DIN 40050-9
Environmental Assessment
+55°C␣/ 93% r.h. acc. to DIN EN 60068-2-30
Salt Spray Test (acc. to DIN 50021-SS)
24 h / 48 h / 96 h Residence Time
Material
Housing
Aluminium anodized
Seal Ring
NBR70
Nut
Steel galvanized
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | MIL-STD: | 202F Method 107G, 202F Method 204D, 202F Method 213B, 416D Method RS103, 810E Method 501.3, 810E Method 502.3, 810E Method 507.3 |
|
Suitable for applications acc. | VDE Certificate Number: | DIN EN 61000-4-2, DIN EN 61000-4-4, DIN EN 61000-4-5 |
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Diagrams
| Ring and Area Illumination 12/24 VDC |
|
| A) Cable 1 (color of the LEDs), Supply voltage first LED group B) Cable 3 (color of the LEDs), Supply voltage second LED group C) Cable 2 (black), Common mass of both LED groups |
| Ring and Area Illumination 5 VDC |
|
| A) Cable 1 (color of the LEDs), Supply voltage first LED group B) Cable 2 (black), Common mass of both LED groups C) Cable 3 (color of the LEDs), Supply voltage second LED group |
| PSE AE PI |
|
| A) Double-LED (2 colors, 3 pins) or simple LED (2 pins) B) Cable 1 (color 1 of the LED), Supply voltage C) Cable 2 (color 2 of the LED), Supply voltage D) Cable 3 (black), Mass |

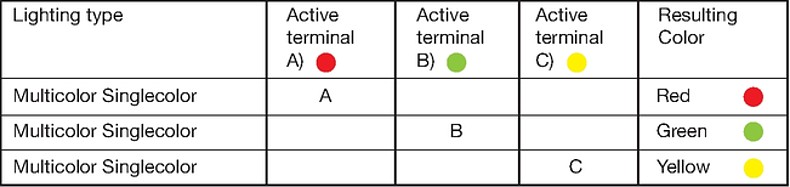

| PSE M22 / M30 RI RGY |
|
| A) Cable (color of the LED), Supply voltage B) Cable (color of the LED), Supply voltage C) Cable (color of the LED), Supply voltage D) Cable (black), Common mass E) Cable (white), Input and output MCS switch F) Cable (white), Input and output MCS switch |
| PSE AE RGB |
|
| A) Cable 1 (color of the LED), Supply voltage B) Cable 2 (color of the LED), Supply voltage C) Cable 3 (color of the LED), Supply voltage D) Cable 4 (black), Common mass |
Point Illumination
| Operating Data | Forward Current max. | Forward Voltage at 10 mA | Forward Voltage max. |
| LED red | 25 mA | 2.1 VDC | 2.5 VDC |
| LED green | 25 mA | 2.05 VDC | 2.5 VDC |
| LED yellow | 30 mA | 2.0 VDC | 2.5 VDC |
| Attentioin: Point illuminated Indicators are deliverd without series resistor. | |||
- Indicator elements in ESD safe packaging
- Screw nuts and sealing rings in a bag (enclosd in the box)
Short Table of Variants PSE AE 30 Open complete table PSE AE 30
| Mounting Diameter [mm] | Terminal |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | Flexible wire connection | 1241.3532 | ... | |||||||||||||
| 30 | Flexible wire connection | 1241.3671 | ... | |||||||||||||
| 30 | Flexible wire connection | 1241.3672 | ... | |||||||||||||
| Legende: Type: PSE AE = Indicator RU = PI = Point Illumination RI = Ring Illumination AI = Area Illumination Alu = Aluminium ES = Stainless stee lF = Finger guidance E = without finger guidance |
||||||||||||||||
| Nut with gasket are enclosed in the box. |
||||||||||||||||
| Other mounting diameters, materials, colors, connections, supply voltages possible available on request. Special materials e.g. Marine grade stainless steel for use in salt and chlorinated environment on request. |
||||||||||||||||
|
5 VDC and 12 VDC RI variants on request (MOQ 500 pieces) |
||||||||||||||||
| Packaging unit | 10 Pcs |
Accessories (1)
Power Supply
Power Supply IP42 for LED- and Illumination applications indoor 90~264 VAC => 24 VDC 0.34 A 8 W
