Piezo Switch with prolonged impulse
Standard version
Non-illuminated

Multicolor
Blue ring illumination

Series: PSE IV 22

Piezo Switch Prolonged Signal

4 Variants

Approvals and Compliances

CAD

Landing Page Multicolor Switches

Description

Available in version Standard, lettered, with Point Illumination or Ring Illumination
RGB, RGY: flexible input voltage from 5 - 28 VDC at constant brightness
With color combination RGB and RGY
7 possible colors with RGB configuration
3 possible colors with RGY configuration
Pins / Wire / Crimp Terminal male / Cable with Faston

Unique Selling Proposition

Variety of design options regarding size, colour, shape, connection or lettering
High reliability, long lifetime with more than 20 mill. actuations
Easy to clean due to a tightly closed surface (IP 69K)
With RGB or RGY ring illumination

Characteristics

Housing material types: aluminum or stainless steel, ring illuminated version additionally made of polyamide
Piezo switch for a longer switching signal duration
For use in harsh environments, both indoors and outdoors (see technical data)

Other versions on request

Switch with short switching pulse, type: PSE NO
Switch for explosion proof applications, type: PSE EX
Switch with enhanced vandal proof protection, type: PSE HI

Detailed request for product

Details PSE IV 22

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Switching Function

momentary

Supply Voltage

12 / 24 VDC Ring Illumination 24 VDC Point Illumination

5 VDC and 12 VDC variants on request (MOQ 500 pieces)

Supply Voltage RGB

5 - 28 VDC

Switching Voltage

max. 32 / 48 VAC/DC

Switching current

max. 1 A

Electrical Rating

10 W

Lifetime

20 million actuations at Rated Switching Capacity

Switch Resistance OFF

> 10 MΩ

Switch Resistance ON

< 1 Ω

Capacity

30 pF

N.O. Closing Impulse Duration

min. 15 sec depending on actuating force, time and speed. Longer impulse time up to min. 50 sec available on request.

Contact Configuration

free polarity

RGB Illumination

Current Consumtion (max per color)

16.5 mA @ 5 VDC

8.2 mA @ 12 VDC

5.5 mA @ 24 VDC

4.8 mA @ 28 VDC

Mechanical Data

Actuating Force

≤ 3 N at centric actuation

Actuating Travel

0.002 mm

Shock Protection

IK02

Mounting screw torque

2.5 Nm

Climatical Data

Operating Temperature

-20 to 60 °C

Storage Temperature

-20 to 60 °C

IP-Protection

IP67 acc. to IEC 60529, IP69K acc. to DIN 40050-9

Environmental Assessment

+55°C␣/ 93% r.h. acc. to DIN EN 60068-2-30

Salt Spray Test (acc. to DIN 50021-SS)

24 h / 48 h / 96 h Residence Time

Material

Housing (depending on type)

Stainless Steel, Aluminum anodized

Actuating Area / Insert (with Ring Illumination)

Stainless Steel, Aluminum anodized

Illuminated Ring (Ring Illumination)

Polyamide

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Application standards

Application standards where the product can be used

Design	Standard	Description
Suitable for applications acc.	EMC Directive:	EMC directive 2014/30/EU
Suitable for applications acc.	MIL-STD:	202F Method 107G, 202F Method 204D, 202F Method 213B, 416D Method RS103, 810E Method 501.3, 810E Method 502.3, 810E Method 507.3
Suitable for applications acc.	VDE Certificate Number:	DIN EN 61000-4-2, DIN EN 61000-4-4, DIN EN 61000-4-5
Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

Dimension [mm]

	PSE 22 with Pins

	Version available on request

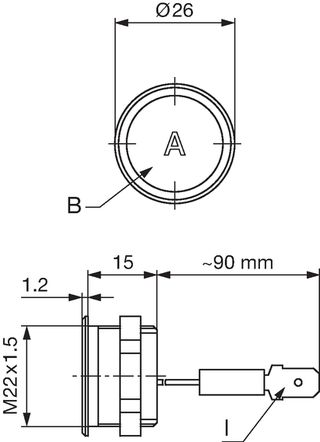

	PSE M22 with Wire

	PSE M22 with Crimp Terminal male

	Version available on request

	PSE M22 PI with Crimp Terminal male

	PSE M22 RI with Wires

	PSE M22 RI with Plug Connector

	Version available on request

	PSE M22 RI RGB with wires

	Design actuating area

	PSE 22 RGB

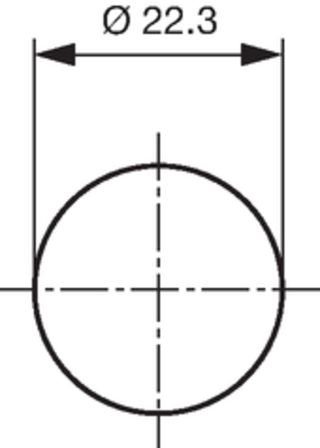

	Drilling diagram

	PSE M22 RI (excl. RGB)

	Drilling diagram

Diagrams

	PSE PI

	A) Double-LED (2 colors, 3 pins) or simple LED (2 pins) B) Cable 1 (color 1 of the LED), Supply voltage C) Cable 2 (color 2 of the LED), Supply voltage D) Cable 3 (black), Mass E) Cable 4 and 5 (white), input and output PSE switch

	PSE M22 RI with Wires, 12/24 V

	A) Cable 5 (black), Common mass of both LED groups B) Cable 1 (color of the LEDs), Supply voltage first LED group C) Cable 2 (color of the LEDs), Supply voltage second LED group D) Cable 3 and 4 (white), Input and output PSE switch

	PSE M22 RI with Quick Connect Terminal, 12/24 V

	A) Illuminated red B) Illuminated green C) Illuminated red/green

	PSE M22 / M30 RI RGB

	A) Cable 1 (color of the LED), Supply voltage B) Cable 2 (color of the LED), Supply voltage C) Cable 3 (color of the LED), Supply voltage D) Cable 4 (black), Common mass E) Cable 5/6 (white), Input and output PSE switch F) Cable 5/6 (white), Input and output PSE switch

	Illumination options for RGB

Marking PSE IV 22

The last three digits in the order number define the lettering:
001-076	Standard Lettering
101-	Customized Lettering

Lettering Colour of Laser Lettering PSE IV 22

Material	Lettering Colour
Stainless Steel	black	Filled letters
Aluminum natural anodized	light grey	Filled letters	(only after customer approval)
Aluminum coloured anodized	light grey	Filled letters

Order Index Lettering PSE IV 22

Laser Marking
001 = A	021 = U	041 = ÷	061 = EIN
002 = B	022 = V	042 = ✳	062 = AUS
003 = C	023 = W	043 = =	063 = AUF
004 = D	024 = X	044 = #	064 = AB
005 = E	025 = Y	045 = ↔	065 = ON
006 = F	026 = Z	046 = ↕	066 = OFF
007 = G	027 = 0	047 = →	067 = UP
008 = H	028 = 1	048 = ←	068 = DOWN
009 = I	029 = 2	049 = ↓	069 = HIGH
010 = J	030 = 3	050 = ↑	070 = LOW
011 = K	031 = 4	051 = %	071 = ON/OFF
012 = L	032 = 5	052 = √	072 = START
013 = M	033 = 6	053 = CTRL	073 = RESET
014 = N	034 = 7	054 = RETURN	074 =
015 = O	035 = 8	055 = SHIFT	075 =
016 = P	036 = 9	056 = LOCK	076 =
017 = Q	037 = +	057 = STOP	077 =
018 = R	038 = -	058 = ENTER
019 = S	039 = .	059 = BACK
020 = T	040 = x	060 = LINE
Please note that the font size depends on the number of characters

Packaging

- Actuating elements in ESD safe packaging
- Screw nuts and sealing O-ring in a bag (enclosed in the box)

Short Table of Variants PSE IV 22 Open complete table PSE IV 22

Mounting Diameter [mm]	Terminal	Order Number	...

22	Flexible wire	1241.3334	...
22	Flexible wire	1241.3335	...
22	Flexible wire	3-100-525	...
22	Flexible wire	1241.3998	...
Legend: Type: PSE NO = normaly open IV = prolonged signal RU = PI = Point Illumination RI = Ring Illumination LE = Lettered K = Plastics Alu = Aluminium ES = Stainless steel F = Finger guidance E = without finger guidance
Nut with gasket are enclosed in the box.
Other mounting diameters, materials, colors, connections, supply voltages possible available on request. Special materials e.g. Marine grade stainless steel for use in salt and chlorinated environment on request.
The MOQ for standard laser lettering on standard variants is a packing unit.
5 VDC and 12 VDC RI variants on request (MOQ 500 pieces)

Packaging unit

10 in box with insert or packed in air cushion bags

Table of Variants PSE IV 22

Mounting Diameter [mm]	Terminal	Housing Material	Torsion Protection	Colour of Housing	Actuator area	Illumination	Color LED	Supply Voltage [V]	Config. Code	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form

22	Flexible wire	Aluminum	yes	Alu natural	E	RI dotted	green	24	PSE M 22 IV RI	1241.3334	10
22	Flexible wire	Aluminum	yes	Alu natural	E	RI dotted	red / green	24	PSE M 22 IV RI	1241.3335	10
22	Flexible wire	Stainless Steel	no	ES natural	E	RI homogeneous	RGB	5 - 28	PSE M 22 IV RI	3-100-525	10
22	Flexible wire	Aluminum	no	Alu natural	F	non-illuminated	-	-	PSE M 22 IV	1241.3998	10
Legend: Type: PSE NO = normaly open IV = prolonged signal RU = PI = Point Illumination RI = Ring Illumination LE = Lettered K = Plastics Alu = Aluminium ES = Stainless steel F = Finger guidance E = without finger guidance
Nut with gasket are enclosed in the box.
Other mounting diameters, materials, colors, connections, supply voltages possible available on request. Special materials e.g. Marine grade stainless steel for use in salt and chlorinated environment on request.
The MOQ for standard laser lettering on standard variants is a packing unit.
5 VDC and 12 VDC RI variants on request (MOQ 500 pieces)

Packaging unit

10 in box with insert or packed in air cushion bags

References / Document Downloads

References PSE IV 22

Alternative: Other diameter (1)

[Swipe to the left and right for more options]

PSE IV 30

Alternative: switch normal operation: (7)

[Swipe to the left and right for more options]

PSE NO 16

PSE NO 19

PSE NO 22

PSE NO 24

PSE NO 27

PSE NO 30

PSE with cable

PSE22_Pooltaster_Uebersicht_Katalogbild_2

Accessories PSE IV 22

Accessories (2)

[Swipe to the left and right for more options]

Connecting Terminal PSE

0701.9238_Anschlussklemme_PSE_Katalogbild_1

Connecting Terminal

Power Supply

Power Supply IP42 for LED- and Illumination applications indoor 90~264 VAC => 24 VDC 0.34 A 8 W
