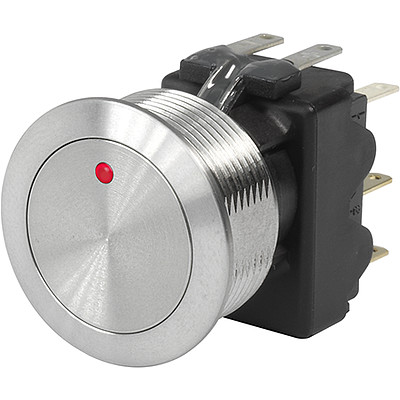

Point Illumination
red

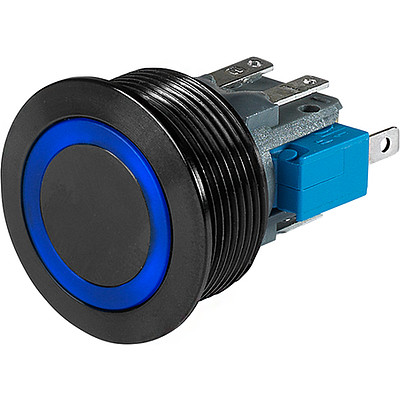

Ring illumination
blue

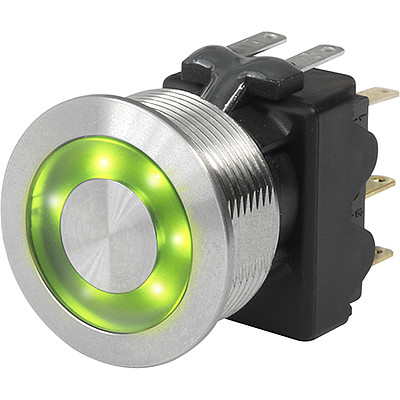

Ring illumination
green
Ring dotted

Series

MSM MO

Metal Switch, Switching Voltage up to 250 VAC

Last order date: 31.01.2024
Last delivery date: 30.11.2024

272 Variants

Approvals and Compliances

CAD

Description MSM MO

Description

Mechanical switch with stroke MO (Momentary)
Single-/ or multicolor illumination
With torsion protection for easier positioning
Equipped with quick connect terminals to permit fast connection
Protection class IP67 frontside

Unique Selling Proposition

Attractive tactile feedback
High quality materials
Long life span
Color marking

Characteristics

Housing material in high-quality stainless steel or aluminium
Variety of design options regarding size, colour, illumination, connection or lettering
Switching voltage from 30 VDC to 250 VAC
Switching current from 0.1 A to 10 A
Actuator: aluminium/ stainless steel/ ceramics
For use in harsh environments

Detailed request for product

Details MSM MO

Technical Data

Approvals and Compliances

CAD-Drawings

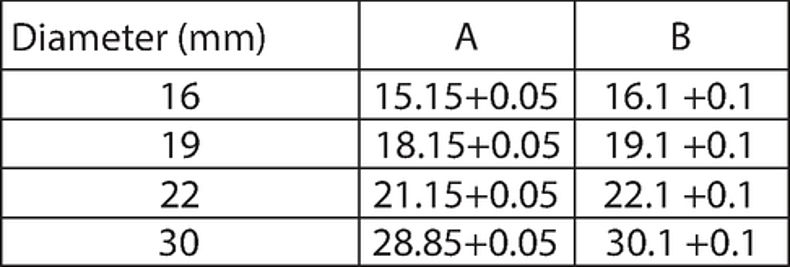

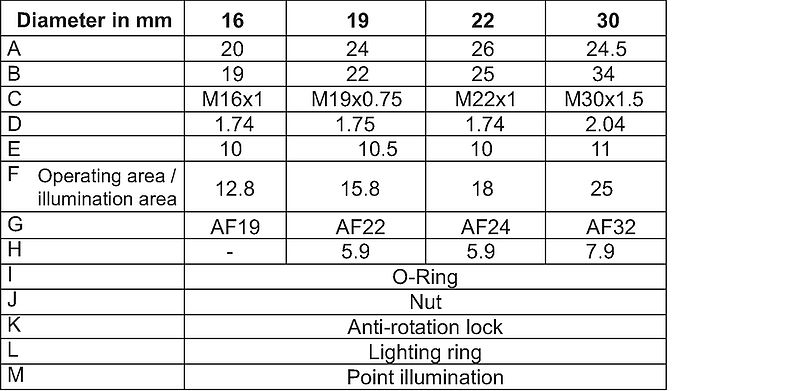

Dimension

Electrical Data

Supply Voltage LED

see table of variants

Micro Switch

see details in table 'Micro Switch'

Impulse Withstand Voltage (ESD)

2 kV

Mechanical Data

Actuating Force

4.5 N

Actuating Travel

1.0 mm

Lifetime

1.5 million actuations

Shock Protection

IK07 to IK10

Mounting screw torque Plastic Nut

max. 3.5 Nm

Climatical Data

Operating Temperature

-25 to 85 °C

Storage Temperature

-25 to 85 °C

Protection Class

Rear Mounting

Salt Spray Test (acc. to IEC 60068-2-11)

24 h / 48 h / 96 h Residence Time

Material

Housing

Aluminium / Stainless Steel

Actuator

Aluminium / Stainless Steel / Ceramics

Seal Ring

NBR70

Plastic Nut

PA, UL94

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

Marking MSM MO

Order Index Lettering MSM MO

Order number key MSM MO

Packaging

Short Table of Variants MSM MO Open complete table MSM MO

Diameter	Switch type	Switching current	Order Number	Free Sample Free Sample Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.	...


16	MO	100 mA	1241.6611.1110000	-	...
16	MO	5 A	1241.6611.1120000	-	...
16	MO	10 A	1241.6611.1130000	-	...
16	MO	100 mA	1241.6612.1110074	-	...
16	MO	5 A	1241.6612.1120000	-	...
16	MO	10 A	3-102-620	-	...
16	MO	100 mA	3-102-621	-	...
16	MO	10 A	3-102-623	-	...
16	MO	100 mA	3-102-624	-	...
16	MO	10 A	3-102-626	-	...
16	MO	100 mA	3-102-627	-	...
16	MO	10 A	3-102-629	-	...
16	MO	100 mA	3-102-630	-	...
16	MO	10 A	3-102-632	-	...
16	MO	100 mA	3-102-633	-	...
16	MO	5 A	3-102-634	-	...
16	MO	10 A	3-102-635	-	...
16	MO	100 mA	3-102-636	-	...
16	MO	5 A	3-102-637	-	...
16	MO	10 A	3-102-639	-	...
16	MO	100 mA	3-102-640	-	...
16	MO	5 A	3-102-641	-	...
16	MO	10 A	3-102-642	-	...
16	MO	100 mA	3-102-643	-	...
16	MO	5 A	3-102-644	-	...
16	MO	10 A	3-102-645	-	...
16	MO	100 mA	3-102-646	-	...
16	MO	5 A	3-102-647	-	...
16	MO	10 A	3-102-648	-	...
16	MO	100 mA	3-102-649	-	...
16	MO	5 A	3-102-650	-	...
16	MO	10 A	3-102-651	-	...
16	MO	5 A	3-136-737	-	...
16	MO	5 A	3-136-738	-	...
16	MO	5 A	3-136-740	-	...
16	MO	5 A	3-136-741	-	...
16	MO	5 A	3-137-051	-	...
19	MO	100 mA	1241.6621.1110000	-	...
19	MO	5 A	1241.6621.1120000	-	...
19	MO	10 A	1241.6621.1130000	-	...
19	MO	6 A	1241.6621.1180000	-	...
19	MO	5 A	1241.6622.1120000	-	...
19	MO	5 A	1241.6622.3120000	-	...
19	MO	5 A	1241.6622.3120066	-	...
19	MO	5 A	1241.6622.5120000	-	...
19	MO	5 A	1241.6622.5120065	-	...
19	MO	100 mA	1241.6623.1111000	-	...
19	MO	100 mA	1241.6623.1112000	-	...
19	MO	5 A	1241.6623.1121000	-	...
19	MO	5 A	1241.6623.1122000	-	...
19	MO	5 A	1241.6623.1124000	-	...
19	MO	10 A	1241.6623.1131000	-	...
19	MO	10 A	1241.6623.1132000	-	...
19	MO	100 mA	1241.6624.1111000	-	...
19	MO	100 mA	1241.6624.1111000B	-	...
19	MO	100 mA	1241.6624.1112000	-	...
19	MO	100 mA	1241.6624.1113000	-	...
19	MO	100 mA	1241.6624.1114000	-	...
19	MO	100 mA	1241.6624.1114074	-	...
19	MO	5 A	1241.6624.1121000	-	...
19	MO	5 A	1241.6624.1122000	-	...
19	MO	5 A	1241.6624.1124000	-	...
19	MO	5 A	1241.6624.1125000	-	...
19	MO	10 A	1241.6624.1131000	-	...
19	MO	10 A	1241.6624.1132000	-	...
19	MO	10 A	1241.6624.1134000	-	...
19	MO	6 A	1241.6624.1181000	-	...
19	MO	6 A	1241.6624.1182000	-	...
19	MO	5 A	1241.6921.1120000	-	...
19	MO	5 A	1241.6922.1120000	-	...
19	MO	5 A	1241.6923.1121000	-	...
19	MO	5 A	1241.6923.1122000	-	...
19	MO	5 A	1241.6923.1124000	-	...
19	MO	5 A	1241.6924.1121000	-	...
19	MO	5 A	1241.6924.1122000	-	...
19	MO	5 A	1241.6924.1124000	-	...
19	MO	5 A	1241.7021.1120000	-	...
19	MO	6 A	1241.7021.1180000	-	...
19	MO	100 mA	1241.8412	-	...
19	MO	100 mA	1241.8413	-	...
19	MO	100 mA	1241.8415	-	...
19	MO	100 mA	1241.8416	-	...
19	MO	10 A	1241.8448	-	...
19	MO	10 A	1241.8449	-	...
19	MO	10 A	1241.8451	-	...
19	MO	10 A	1241.8452	-	...
19	MO	5 A	3-101-515	-	...
19	MO	100 mA	3-102-708	-	...
19	MO	10 A	3-102-772	-	...
19	MO	100 mA	3-102-788	-	...
19	MO	5 A	3-102-789	-	...
19	MO	10 A	3-102-790	-	...
19	MO	100 mA	3-108-945	-	...
19	MO	5 A	3-108-946	-	...
19	MO	10 A	3-108-947	-	...
19	MO	100 mA	3-108-948	-	...
19	MO	5 A	3-108-949	-	...
19	MO	10 A	3-108-950	-	...
19	MO	5 A	3-108-951	-	...
19	MO	100 mA	3-108-952	-	...
19	MO	5 A	3-108-953	-	...
19	MO	10 A	3-108-954	-	...
19	MO	5 A	3-108-962	-	...
19	MO	5 A	3-108-963	-	...
19	MO	5 A	3-120-088	-	...
19	MO	5 A	3-120-089	-	...
19	MO	5 A	3-120-103	-	...
19	MO	6 A	3-120-115	-	...
19	MO	5 A	3-136-752	-	...
19	MO	5 A	3-136-753	-	...
19	MO	5 A	3-136-754	-	...
19	MO	5 A	3-136-755	-	...
19	MO	5 A	3-137-082	-	...
19	MO	5 A	3-137-085	-	...
22	MO	100 mA	1241.6631.1110000	-	...
22	MO	5 A	1241.6631.1120000	-	...
22	MO	10 A	1241.6631.1130000	-	...
22	MO	6 A	1241.6631.1180000	-	...
22	MO	100 mA	1241.6632.1110000	-	...
22	MO	5 A	1241.6632.1120000	-	...
22	MO	5 A	1241.6632.3120000	-	...
22	MO	5 A	1241.6632.3120057	-	...
22	MO	5 A	1241.6632.3120066	-	...
22	MO	5 A	1241.6632.5120000	-	...
22	MO	5 A	1241.6632.5120061	-	...
22	MO	5 A	1241.6632.5120065	-	...
22	MO	100 mA	1241.6633.1111000	-	...
22	MO	100 mA	1241.6633.1112000	-	...
22	MO	100 mA	1241.6633.1114000	-	...
22	MO	5 A	1241.6633.1121000	-	...
22	MO	5 A	1241.6633.1122000	-	...
22	MO	5 A	1241.6633.1124000	-	...
22	MO	5 A	1241.6633.1126000	-	...
22	MO	10 A	1241.6633.1131000	-	...
22	MO	10 A	1241.6633.1132000	-	...
22	MO	10 A	1241.6633.1134000	-	...
22	MO	100 mA	1241.6634.1111000	-	...
22	MO	100 mA	1241.6634.1112000	-	...
22	MO	100 mA	1241.6634.1113000	-	...
22	MO	100 mA	1241.6634.1114000	-	...
22	MO	5 A	1241.6634.1121000	-	...
22	MO	5 A	1241.6634.1122000	-	...
22	MO	5 A	1241.6634.1123000	-	...
22	MO	5 A	1241.6634.1124000	-	...
22	MO	5 A	1241.6634.1125000	-	...
22	MO	10 A	1241.6634.1131000	-	...
22	MO	10 A	1241.6634.1132000	-	...
22	MO	6 A	1241.6634.1181000	-	...
22	MO	6 A	1241.6634.1182000	-	...
22	MO	6 A	1241.6634.1184000	-	...
22	MO	5 A	1241.6693.1121000	-	...
22	MO	5 A	1241.6693.1122000	-	...
22	MO	5 A	1241.6695.1120000	-	...
22	MO	5 A	1241.6699.1120000	-	...
22	MO	5 A	1241.6931.1120000	-	...
22	MO	5 A	1241.6932.1120000	-	...
22	MO	5 A	1241.6933.1121000	-	...
22	MO	5 A	1241.6933.1122000	-	...
22	MO	5 A	1241.6933.1124000	-	...
22	MO	5 A	1241.6934.1121000	-	...
22	MO	5 A	1241.6934.1122000	-	...
22	MO	5 A	1241.6934.1124000	-	...
22	MO	100 mA	1241.7031.1110000	-	...
22	MO	5 A	1241.7031.1120000	-	...
22	MO	10 A	1241.7031.1130000	-	...
22	MO	5 A	1241.7032.1120000	-	...
22	MO	100 mA	3-102-773	-	...
22	MO	100 mA	3-102-774	-	...
22	MO	5 A	3-102-775	-	...
22	MO	10 A	3-102-776	-	...
22	MO	10 A	3-102-784	-	...
22	MO	100 mA	3-108-955	-	...
22	MO	5 A	3-108-956	-	...
22	MO	10 A	3-108-957	-	...
22	MO	100 mA	3-108-958	-	...
22	MO	5 A	3-108-959	-	...
22	MO	10 A	3-108-960	-	...
22	MO	100 mA	3-108-961	-	...
22	MO	5 A	3-108-972	-	...
22	MO	10 A	3-108-973	-	...
22	MO	5 A	3-108-974	-	...
22	MO	5 A	3-108-975	-	...
22	MO	5 A	3-108-976	-	...
22	MO	100 mA	3-109-580	-	...
22	MO	5 A	3-120-106	-	...
22	MO	5 A	3-120-107	-	...
22	MO	5 A	3-120-119	-	...
22	MO	5 A	3-120-124	-	...
22	MO	5 A	3-136-756	-	...
22	MO	5 A	3-136-757	-	...
22	MO	5 A	3-136-758	-	...
22	MO	5 A	3-136-759	-	...
22	MO	5 A	3-136-760	-	...
22	MO	5 A	3-136-761	-	...
22	MO	5 A	3-136-762	-	...
22	MO	100 mA	3-136-763	-	...
22	MO	100 mA	3-136-764	-	...
22	MO	100 mA	3-136-765	-	...
22	MO	100 mA	3-136-766	-	...
22	MO	100 mA	3-136-767	-	...
22	MO	100 mA	3-136-768	-	...
22	MO	100 mA	3-136-769	-	...
22	MO	5 A	3-137-083	-	...
22	MO	5 A	3-137-086	-	...
22	MO	5 A	3-137-088	-	...
22	MO	5 A	3-137-089	-	...
22	MO	5 A	3-137-090	-	...
22	MO	100 mA	3-137-091	-	...
22	MO	5 A	3-137-092	-	...
22	MO	10 A	3-137-093	-	...
22	MO	100 mA	3-137-094	-	...
22	MO	10 A	3-137-095	-	...
22	MO	100 mA	1241.8484	-	...
22	MO	100 mA	1241.8485	-	...
22	MO	100 mA	1241.8487	-	...
22	MO	100 mA	1241.8488	-	...
22	MO	10 A	1241.8520	-	...
22	MO	10 A	1241.8521	-	...
22	MO	10 A	1241.8523	-	...
22	MO	10 A	1241.8524	-	...
24	MO	100 mA	1241.6641.1110000	-	...
24	MO	5 A	1241.6641.1120000	-	...
24	MO	10 A	3-128-295	-	...
24	MO	100 mA	3-132-395	-	...
24	MO	5 A	3-132-396	-	...
30	MO	100 mA	1241.6661.1110000	-	...
30	MO	5 A	1241.6661.1120000	-	...
30	MO	10 A	1241.6661.1130000	-	...
30	MO	100 mA	1241.6661.1170000	-	...
30	MO	100 mA	1241.6663.1111000	-	...
30	MO	100 mA	1241.6663.1114000	-	...
30	MO	5 A	1241.6663.1121000	-	...
30	MO	5 A	1241.6663.1122000	-	...
30	MO	5 A	1241.6663.1124000	-	...
30	MO	5 A	1241.6663.1125000	-	...
30	MO	10 A	1241.6663.1132000	-	...
30	MO	5 A	1241.6663.3121	-	...
30	MO	100 mA	1241.6664.1111000	-	...
30	MO	100 mA	1241.6664.1112000	-	...
30	MO	100 mA	1241.6664.1113000	-	...
30	MO	100 mA	1241.6664.1114000	-	...
30	MO	5 A	1241.6664.1121000	-	...
30	MO	5 A	1241.6664.1122000	-	...
30	MO	5 A	1241.6664.1123000	-	...
30	MO	5 A	1241.6664.1124000	-	...
30	MO	5 A	1241.6664.1125000	-	...
30	MO	10 A	1241.6664.1132000	-	...
30	MO	10 A	1241.6664.1134000	-	...
30	MO	5 A	1241.6961.1120000	-	...
30	MO	5 A	1241.6962.1120000	-	...
30	MO	5 A	1241.6963.1121000	-	...
30	MO	5 A	1241.6963.1122000	-	...
30	MO	5 A	1241.6964.1121000	-	...
30	MO	5 A	1241.6964.1122000	-	...
30	MO	5 A	1241.6964.1124000	-	...
30	MO	100 mA	3-102-785	-	...
30	MO	10 A	3-102-787	-	...
30	MO	100 mA	3-108-964	-	...
30	MO	5 A	3-108-965	-	...
30	MO	10 A	3-108-966	-	...
30	MO	100 mA	3-108-967	-	...
30	MO	5 A	3-108-968	-	...
30	MO	10 A	3-108-969	-	...
30	MO	100 mA	3-108-977	-	...
30	MO	5 A	3-108-978	-	...
30	MO	10 A	3-108-979	-	...
30	MO	5 A	3-136-770	-	...
30	MO	5 A	3-136-771	-	...
30	MO	5 A	3-136-772	-	...
30	MO	5 A	3-136-773	-	...
30	MO	5 A	3-137-084	-	...
30	MO	5 A	3-137-087	-	...

Packaging unit

10 pcs.

In box or packed in air cushion bags

Table of Variants MSM MO

Diameter	Switch type	Switching current	Electrical contact	IP specification backside	Illumination	Illumination color	Housing material	Order Number	Free Sample Free Sample Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form


16	MO	100 mA	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6611.1110000	-	10
16	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6611.1120000	-	10
16	MO	10 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6611.1130000	-	10
16	MO	100 mA	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6612.1110074	-	10
16	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6612.1120000	-	10
16	MO	10 A	SPDT	IP40	RI homogeneous	red	Stainless Steel	3-102-620	-	10
16	MO	100 mA	SPDT	IP40	RI homogeneous	green	Stainless Steel	3-102-621	-	10
16	MO	10 A	SPDT	IP40	RI homogeneous	green	Stainless Steel	3-102-623	-	10
16	MO	100 mA	SPDT	IP40	RI homogeneous	blue	Stainless Steel	3-102-624	-	10
16	MO	10 A	SPDT	IP40	RI homogeneous	blue	Stainless Steel	3-102-626	-	10
16	MO	100 mA	SPDT	IP40	RI homogeneous	yellow	Stainless Steel	3-102-627	-	10
16	MO	10 A	SPDT	IP40	RI homogeneous	yellow	Stainless Steel	3-102-629	-	10
16	MO	100 mA	SPDT	IP40	RI homogeneous	white	Stainless Steel	3-102-630	-	10
16	MO	10 A	SPDT	IP40	RI homogeneous	white	Stainless Steel	3-102-632	-	10
16	MO	100 mA	SPDT	IP40	Area illumination	red	Stainless Steel	3-102-633	-	10
16	MO	5 A	SPDT	IP40	Area illumination	red	Stainless Steel	3-102-634	-	10
16	MO	10 A	SPDT	IP40	Area illumination	red	Stainless Steel	3-102-635	-	10
16	MO	100 mA	SPDT	IP40	Area illumination	green	Stainless Steel	3-102-636	-	10
16	MO	5 A	SPDT	IP40	Area illumination	green	Stainless Steel	3-102-637	-	10
16	MO	10 A	SPDT	IP40	Area illumination	green	Stainless Steel	3-102-639	-	10
16	MO	100 mA	SPDT	IP40	Area illumination	blue	Stainless Steel	3-102-640	-	10
16	MO	5 A	SPDT	IP40	Area illumination	blue	Stainless Steel	3-102-641	-	10
16	MO	10 A	SPDT	IP40	Area illumination	blue	Stainless Steel	3-102-642	-	10
16	MO	100 mA	SPDT	IP40	Area illumination	yellow	Stainless Steel	3-102-643	-	10
16	MO	5 A	SPDT	IP40	Area illumination	yellow	Stainless Steel	3-102-644	-	10
16	MO	10 A	SPDT	IP40	Area illumination	yellow	Stainless Steel	3-102-645	-	10
16	MO	100 mA	SPDT	IP40	Area illumination	white	Stainless Steel	3-102-646	-	10
16	MO	5 A	SPDT	IP40	Area illumination	white	Stainless Steel	3-102-647	-	10
16	MO	10 A	SPDT	IP40	Area illumination	white	Stainless Steel	3-102-648	-	10
16	MO	100 mA	SPDT	IP40	non-illuminated	-	Stainless Steel	3-102-649	-	10
16	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	3-102-650	-	10
16	MO	10 A	SPDT	IP40	non-illuminated	-	Stainless Steel	3-102-651	-	10
16	MO	5 A	SPDT	IP40	Color ring	red	Stainless Steel	3-136-737	-	10
16	MO	5 A	SPDT	IP40	Color ring	green	Stainless Steel	3-136-738	-	10
16	MO	5 A	SPDT	IP40	Color ring	blue	Stainless Steel	3-136-740	-	10
16	MO	5 A	SPDT	IP40	Color ring	black	Stainless Steel	3-136-741	-	10
16	MO	5 A	SPDT	IP40	Ring illumination RD	white	Aluminum	3-137-051	-	10
19	MO	100 mA	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6621.1110000	-	10
19	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6621.1120000	-	10
19	MO	10 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6621.1130000	-	10
19	MO	6 A	SPDT	IP67	non-illuminated	-	Stainless Steel	1241.6621.1180000	-	10
19	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6622.1120000	-	10
19	MO	5 A	SPDT	IP40	non-illuminated	-	Alu red	1241.6622.3120000	-	10
19	MO	5 A	SPDT	IP40	non-illuminated	-	Alu red	1241.6622.3120066	-	10
19	MO	5 A	SPDT	IP40	non-illuminated	-	Alu green	1241.6622.5120000	-	10
19	MO	5 A	SPDT	IP40	non-illuminated	-	Alu green	1241.6622.5120065	-	10
19	MO	100 mA	SPDT	IP40	Point Illumination	red	Stainless Steel	1241.6623.1111000	-	10
19	MO	100 mA	SPDT	IP40	Point Illumination	green	Stainless Steel	1241.6623.1112000	-	10
19	MO	5 A	SPDT	IP40	Point Illumination	red	Stainless Steel	1241.6623.1121000	-	10
19	MO	5 A	SPDT	IP40	Point Illumination	green	Stainless Steel	1241.6623.1122000	-	10
19	MO	5 A	SPDT	IP40	Point Illumination	blue	Stainless Steel	1241.6623.1124000	-	10
19	MO	10 A	SPDT	IP40	Point Illumination	red	Stainless Steel	1241.6623.1131000	-	10
19	MO	10 A	SPDT	IP40	Point Illumination	green	Stainless Steel	1241.6623.1132000	-	10
19	MO	100 mA	SPDT	IP40	RI dotted	red	Stainless Steel	1241.6624.1111000	-	10
19	MO	100 mA	SPDT	IP40	RI dotted	red	Stainless Steel	1241.6624.1111000B	-	10
19	MO	100 mA	SPDT	IP40	RI dotted	green	Stainless Steel	1241.6624.1112000	-	10
19	MO	100 mA	SPDT	IP40	RI dotted	yellow	Stainless Steel	1241.6624.1113000	-	10
19	MO	100 mA	SPDT	IP40	RI dotted	blue	Stainless Steel	1241.6624.1114000	-	10
19	MO	100 mA	SPDT	IP40	RI dotted	blue	Stainless Steel	1241.6624.1114074	-	10
19	MO	5 A	SPDT	IP40	RI dotted	red	Stainless Steel	1241.6624.1121000	-	10
19	MO	5 A	SPDT	IP40	RI dotted	green	Stainless Steel	1241.6624.1122000	-	10
19	MO	5 A	SPDT	IP40	RI dotted	blue	Stainless Steel	1241.6624.1124000	-	10
19	MO	5 A	SPDT	IP40	RI dotted	white	Stainless Steel	1241.6624.1125000	-	10
19	MO	10 A	SPDT	IP40	RI dotted	red	Stainless Steel	1241.6624.1131000	-	10
19	MO	10 A	SPDT	IP40	RI dotted	green	Stainless Steel	1241.6624.1132000	-	10
19	MO	10 A	SPDT	IP40	RI dotted	blue	Stainless Steel	1241.6624.1134000	-	10
19	MO	6 A	SPDT	IP67	RI dotted	red	Stainless Steel	1241.6624.1181000	-	10
19	MO	6 A	SPDT	IP67	RI dotted	green	Stainless Steel	1241.6624.1182000	-	10
19	MO	5 A	DPDT	IP40	non-illuminated	-	Stainless Steel	1241.6921.1120000	-	10
19	MO	5 A	DPDT	IP40	non-illuminated	-	Stainless Steel	1241.6922.1120000	-	10
19	MO	5 A	DPDT	IP40	Point Illumination	red	Stainless Steel	1241.6923.1121000	-	10
19	MO	5 A	DPDT	IP40	Point Illumination	green	Stainless Steel	1241.6923.1122000	-	10
19	MO	5 A	DPDT	IP40	Point Illumination	blue	Stainless Steel	1241.6923.1124000	-	10
19	MO	5 A	DPDT	IP40	RI dotted	red	Stainless Steel	1241.6924.1121000	-	10
19	MO	5 A	DPDT	IP40	RI dotted	green	Stainless Steel	1241.6924.1122000	-	10
19	MO	5 A	DPDT	IP40	RI dotted	blue	Stainless Steel	1241.6924.1124000	-	10
19	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.7021.1120000	-	10
19	MO	6 A	SPDT	IP67	non-illuminated	-	Stainless Steel	1241.7021.1180000	-	10
19	MO	100 mA	SPDT	IP40	Area illumination	red	Stainless Steel	1241.8412	-	10
19	MO	100 mA	SPDT	IP40	Area illumination	green	Stainless Steel	1241.8413	-	10
19	MO	100 mA	SPDT	IP40	Area illumination	blue	Stainless Steel	1241.8415	-	10
19	MO	100 mA	SPDT	IP40	Area illumination	white	Stainless Steel	1241.8416	-	10
19	MO	10 A	SPDT	IP40	Area illumination	red	Stainless Steel	1241.8448	-	10
19	MO	10 A	SPDT	IP40	Area illumination	green	Stainless Steel	1241.8449	-	10
19	MO	10 A	SPDT	IP40	Area illumination	blue	Stainless Steel	1241.8451	-	10
19	MO	10 A	SPDT	IP40	Area illumination	white	Stainless Steel	1241.8452	-	10
19	MO	5 A	SPDT	IP40	Point Illumination	green / yellow	Stainless Steel	3-101-515	-	10
19	MO	100 mA	SPDT	IP40	RI homogeneous	RGB	Stainless Steel	3-102-708	-	10
19	MO	10 A	SPDT	IP40	RI homogeneous	RGB	Stainless Steel	3-102-772	-	10
19	MO	100 mA	SPDT	IP40	Area illumination	RGB	Stainless Steel	3-102-788	-	10
19	MO	5 A	SPDT	IP40	Area illumination	RGB	Stainless Steel	3-102-789	-	10
19	MO	10 A	SPDT	IP40	Area illumination	RGB	Stainless Steel	3-102-790	-	10
19	MO	100 mA	SPDT	IP40	RI homogeneous	green	Stainless Steel	3-108-945	-	10
19	MO	5 A	SPDT	IP40	RI homogeneous	green	Stainless Steel	3-108-946	-	10
19	MO	10 A	SPDT	IP40	RI homogeneous	green	Stainless Steel	3-108-947	-	10
19	MO	100 mA	SPDT	IP40	RI homogeneous	blue	Stainless Steel	3-108-948	-	10
19	MO	5 A	SPDT	IP40	RI homogeneous	blue	Stainless Steel	3-108-949	-	10
19	MO	10 A	SPDT	IP40	RI homogeneous	blue	Stainless Steel	3-108-950	-	10
19	MO	5 A	DPDT	IP40	RI homogeneous	red	Stainless Steel	3-108-951	-	10
19	MO	100 mA	SPDT	IP40	RI homogeneous	red	Stainless Steel	3-108-952	-	10
19	MO	5 A	SPDT	IP40	RI homogeneous	red	Stainless Steel	3-108-953	-	10
19	MO	10 A	SPDT	IP40	RI homogeneous	red	Stainless Steel	3-108-954	-	10
19	MO	5 A	DPDT	IP40	RI homogeneous	green	Stainless Steel	3-108-962	-	10
19	MO	5 A	DPDT	IP40	RI homogeneous	blue	Stainless Steel	3-108-963	-	10
19	MO	5 A	SPDT	IP40	Area illumination	green	Stainless Steel	3-120-088	-	10
19	MO	5 A	SPDT	IP40	Area illumination	blue	Stainless Steel	3-120-089	-	10
19	MO	5 A	SPDT	IP40	Area illumination	red	Stainless Steel	3-120-103	-	10
19	MO	6 A	SPDT	IP67	Area illumination	red	Stainless Steel	3-120-115	-	10
19	MO	5 A	SPDT	IP40	Color ring	red	Stainless Steel	3-136-752	-	10
19	MO	5 A	SPDT	IP40	Color ring	green	Stainless Steel	3-136-753	-	10
19	MO	5 A	SPDT	IP40	Color ring	blue	Stainless Steel	3-136-754	-	10
19	MO	5 A	SPDT	IP40	Color ring	black	Stainless Steel	3-136-755	-	10
19	MO	5 A	SPDT	IP40	Ring illumination RD	white	Aluminum	3-137-082	-	10
19	MO	5 A	SPDT	IP40	Ring illumination RD	RGB	Aluminum	3-137-085	-	10
22	MO	100 mA	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6631.1110000	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6631.1120000	-	10
22	MO	10 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6631.1130000	-	10
22	MO	6 A	SPDT	IP67	non-illuminated	-	Stainless Steel	1241.6631.1180000	-	10
22	MO	100 mA	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6632.1110000	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6632.1120000	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Alu red	1241.6632.3120000	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Alu red	1241.6632.3120057	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Alu red	1241.6632.3120066	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Alu green	1241.6632.5120000	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Alu green	1241.6632.5120061	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Alu green	1241.6632.5120065	-	10
22	MO	100 mA	SPDT	IP40	Point Illumination	red	Stainless Steel	1241.6633.1111000	-	10
22	MO	100 mA	SPDT	IP40	Point Illumination	green	Stainless Steel	1241.6633.1112000	-	10
22	MO	100 mA	SPDT	IP40	Point Illumination	blue	Stainless Steel	1241.6633.1114000	-	10
22	MO	5 A	SPDT	IP40	Point Illumination	red	Stainless Steel	1241.6633.1121000	-	10
22	MO	5 A	SPDT	IP40	Point Illumination	green	Stainless Steel	1241.6633.1122000	-	10
22	MO	5 A	SPDT	IP40	Point Illumination	blue	Stainless Steel	1241.6633.1124000	-	10
22	MO	5 A	SPDT	IP40	Point Illumination	red / green	Stainless Steel	1241.6633.1126000	-	10
22	MO	10 A	SPDT	IP40	Point Illumination	red	Stainless Steel	1241.6633.1131000	-	10
22	MO	10 A	SPDT	IP40	Point Illumination	green	Stainless Steel	1241.6633.1132000	-	10
22	MO	10 A	SPDT	IP40	Point Illumination	blue	Stainless Steel	1241.6633.1134000	-
22	MO	100 mA	SPDT	IP40	RI dotted	red	Stainless Steel	1241.6634.1111000	-	10
22	MO	100 mA	SPDT	IP40	RI dotted	green	Stainless Steel	1241.6634.1112000	-	10
22	MO	100 mA	SPDT	IP40	RI dotted	yellow	Stainless Steel	1241.6634.1113000	-	10
22	MO	100 mA	SPDT	IP40	RI dotted	blue	Stainless Steel	1241.6634.1114000	-	10
22	MO	5 A	SPDT	IP40	RI dotted	red	Stainless Steel	1241.6634.1121000	-	10
22	MO	5 A	SPDT	IP40	RI dotted	green	Stainless Steel	1241.6634.1122000	-	10
22	MO	5 A	SPDT	IP40	RI dotted	yellow	Stainless Steel	1241.6634.1123000	-	10
22	MO	5 A	SPDT	IP40	RI dotted	blue	Stainless Steel	1241.6634.1124000	-	10
22	MO	5 A	SPDT	IP40	RI dotted	white	Stainless Steel	1241.6634.1125000	-	10
22	MO	10 A	SPDT	IP40	RI dotted	red	Stainless Steel	1241.6634.1131000	-	10
22	MO	10 A	SPDT	IP40	RI dotted	green	Stainless Steel	1241.6634.1132000	-	10
22	MO	6 A	SPDT	IP67	RI dotted	red	Stainless Steel	1241.6634.1181000	-	10
22	MO	6 A	SPDT	IP67	RI dotted	green	Stainless Steel	1241.6634.1182000	-	10
22	MO	6 A	SPDT	IP67	RI dotted	blue	Stainless Steel	1241.6634.1184000	-	10
22	MO	5 A	SPDT	IP40	Point Illumination	red	Stainless Steel	1241.6693.1121000	-	10
22	MO	5 A	SPDT	IP40	Point Illumination	green	Stainless Steel	1241.6693.1122000	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6695.1120000	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6699.1120000	-	10
22	MO	5 A	DPDT	IP40	non-illuminated	-	Stainless Steel	1241.6931.1120000	-	10
22	MO	5 A	DPDT	IP40	non-illuminated	-	Stainless Steel	1241.6932.1120000	-	10
22	MO	5 A	DPDT	IP40	Point Illumination	red	Stainless Steel	1241.6933.1121000	-	10
22	MO	5 A	DPDT	IP40	Point Illumination	green	Stainless Steel	1241.6933.1122000	-	10
22	MO	5 A	DPDT	IP40	Point Illumination	blue	Stainless Steel	1241.6933.1124000	-	10
22	MO	5 A	DPDT	IP40	RI dotted	red	Stainless Steel	1241.6934.1121000	-	10
22	MO	5 A	DPDT	IP40	RI dotted	green	Stainless Steel	1241.6934.1122000	-	10
22	MO	5 A	DPDT	IP40	RI dotted	blue	Stainless Steel	1241.6934.1124000	-	10
22	MO	100 mA	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.7031.1110000	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.7031.1120000	-	10
22	MO	10 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.7031.1130000	-	10
22	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.7032.1120000	-	10
22	MO	100 mA	SPDT	IP40	RI homogeneous	RGB	Stainless Steel	3-102-773	-	10
22	MO	100 mA	SPDT	IP40	Area illumination	RGB	Stainless Steel	3-102-774	-	10
22	MO	5 A	SPDT	IP40	Area illumination	RGB	Stainless Steel	3-102-775	-	10
22	MO	10 A	SPDT	IP40	Area illumination	RGB	Stainless Steel	3-102-776	-	10
22	MO	10 A	SPDT	IP40	RI homogeneous	RGB	Stainless Steel	3-102-784	-	10
22	MO	100 mA	SPDT	IP40	RI homogeneous	red	Stainless Steel	3-108-955	-	10
22	MO	5 A	SPDT	IP40	RI homogeneous	red	Stainless Steel	3-108-956	-	10
22	MO	10 A	SPDT	IP40	RI homogeneous	red	Stainless Steel	3-108-957	-	10
22	MO	100 mA	SPDT	IP40	RI homogeneous	green	Stainless Steel	3-108-958	-	10
22	MO	5 A	SPDT	IP40	RI homogeneous	green	Stainless Steel	3-108-959	-	10
22	MO	10 A	SPDT	IP40	RI homogeneous	green	Stainless Steel	3-108-960	-	10
22	MO	100 mA	SPDT	IP40	RI homogeneous	blue	Stainless Steel	3-108-961	-	10
22	MO	5 A	SPDT	IP40	RI homogeneous	blue	Stainless Steel	3-108-972	-	10
22	MO	10 A	SPDT	IP40	RI homogeneous	blue	Stainless Steel	3-108-973	-	10
22	MO	5 A	DPDT	IP40	RI homogeneous	red	Stainless Steel	3-108-974	-	10
22	MO	5 A	DPDT	IP40	RI homogeneous	green	Stainless Steel	3-108-975	-	10
22	MO	5 A	DPDT	IP40	RI homogeneous	blue	Stainless Steel	3-108-976	-	10
22	MO	100 mA	SPDT	IP67	RI homogeneous	RGB	Stainless Steel	3-109-580	-	10
22	MO	5 A	SPDT	IP40	Area illumination	blue	Stainless Steel	3-120-106	-	10
22	MO	5 A	SPDT	IP40	Area illumination	white	Stainless Steel	3-120-107	-	10
22	MO	5 A	SPDT	IP40	Area illumination	red	Stainless Steel	3-120-119	-	10
22	MO	5 A	SPDT	IP40	Area illumination	green	Stainless Steel	3-120-124	-	10
22	MO	5 A	SPDT	IP40	Color ring	red	Stainless Steel	3-136-756	-	10
22	MO	5 A	SPDT	IP40	Color ring	green	Stainless Steel	3-136-757	-	10
22	MO	5 A	SPDT	IP40	Color ring	blue	Stainless Steel	3-136-758	-	10
22	MO	5 A	SPDT	IP40	Color ring	black	Stainless Steel	3-136-759	-	10
22	MO	5 A	SPDT	IP40	Color ring	yellow	Stainless Steel	3-136-760	-	10
22	MO	5 A	SPDT	IP40	Color ring	white	Stainless Steel	3-136-761	-	10
22	MO	5 A	SPDT	IP40	Color ring	orange	Stainless Steel	3-136-762	-	10
22	MO	100 mA	SPDT	IP40	Color ring	red	Stainless Steel	3-136-763	-	10
22	MO	100 mA	SPDT	IP40	Color ring	green	Stainless Steel	3-136-764	-	10
22	MO	100 mA	SPDT	IP40	Color ring	blue	Stainless Steel	3-136-765	-	10
22	MO	100 mA	SPDT	IP40	Color ring	black	Stainless Steel	3-136-766	-	10
22	MO	100 mA	SPDT	IP40	Color ring	yellow	Stainless Steel	3-136-767	-	10
22	MO	100 mA	SPDT	IP40	Color ring	white	Stainless Steel	3-136-768	-	10
22	MO	100 mA	SPDT	IP40	Color ring	orange	Stainless Steel	3-136-769	-	10
22	MO	5 A	SPDT	IP40	Ring illumination RD	red	Aluminum	3-137-083	-	10
22	MO	5 A	SPDT	IP40	Ring illumination RD	RGB	Aluminum	3-137-086	-	10
22	MO	5 A	SPDT	IP40	Ring illumination RD	green	Aluminum	3-137-088	-	10
22	MO	5 A	SPDT	IP40	Ring illumination RD	blue	Aluminum	3-137-089	-	10
22	MO	5 A	SPDT	IP40	Ring illumination RD	yellow	Aluminum	3-137-090	-	10
22	MO	100 mA	SPDT	IP40	Ring illumination RD	white	Aluminum	3-137-091	-	10
22	MO	5 A	SPDT	IP40	Ring illumination RD	white	Aluminum	3-137-092	-	10
22	MO	10 A	SPDT	IP40	Ring illumination RD	white	Aluminum	3-137-093	-	10
22	MO	100 mA	SPDT	IP40	Ring illumination RD	RGB	Aluminum	3-137-094	-	10
22	MO	10 A	SPDT	IP40	Ring illumination RD	RGB	Aluminum	3-137-095	-	10
22	MO	100 mA	SPDT	IP40	Area illumination	red	Stainless Steel	1241.8484	-	10
22	MO	100 mA	SPDT	IP40	Area illumination	green	Stainless Steel	1241.8485	-	10
22	MO	100 mA	SPDT	IP40	Area illumination	blue	Stainless Steel	1241.8487	-	10
22	MO	100 mA	SPDT	IP40	Area illumination	white	Stainless Steel	1241.8488	-	10
22	MO	10 A	SPDT	IP40	Area illumination	red	Stainless Steel	1241.8520	-	10
22	MO	10 A	SPDT	IP40	Area illumination	green	Stainless Steel	1241.8521	-	10
22	MO	10 A	SPDT	IP40	Area illumination	blue	Stainless Steel	1241.8523	-	10
22	MO	10 A	SPDT	IP40	Area illumination	white	Stainless Steel	1241.8524	-	10
24	MO	100 mA	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6641.1110000	-	10
24	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6641.1120000	-	10
24	MO	10 A	SPDT	IP40	non-illuminated	-	Stainless Steel	3-128-295	-	10
24	MO	100 mA	SPDT	IP40	non-illuminated	-	Stainless Steel	3-132-395	-	10
24	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	3-132-396	-	10
30	MO	100 mA	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6661.1110000	-	10
30	MO	5 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6661.1120000	-	10
30	MO	10 A	SPDT	IP40	non-illuminated	-	Stainless Steel	1241.6661.1130000	-	10
30	MO	100 mA	SPDT	IP67	non-illuminated	-	Stainless Steel	1241.6661.1170000	-	10
30	MO	100 mA	SPDT	IP40	Point Illumination	red	Stainless Steel	1241.6663.1111000	-
30	MO	100 mA	SPDT	IP40	Point Illumination	blue	Stainless Steel	1241.6663.1114000	-	10
30	MO	5 A	SPDT	IP40	Point Illumination	red	Stainless Steel	1241.6663.1121000	-	10
30	MO	5 A	SPDT	IP40	Point Illumination	green	Stainless Steel	1241.6663.1122000	-	10
30	MO	5 A	SPDT	IP40	Point Illumination	blue	Stainless Steel	1241.6663.1124000	-	10
30	MO	5 A	SPDT	IP40	Point Illumination	white	Stainless Steel	1241.6663.1125000	-	10
30	MO	10 A	SPDT	IP40	Point Illumination	green	Stainless Steel	1241.6663.1132000	-	10
30	MO	5 A	SPDT	IP40	Point Illumination	red	Aluminum	1241.6663.3121	-	10
30	MO	100 mA	SPDT	IP40	RI dotted	red	Stainless Steel	1241.6664.1111000	-	10
30	MO	100 mA	SPDT	IP40	RI dotted	green	Stainless Steel	1241.6664.1112000	-	10
30	MO	100 mA	SPDT	IP40	RI dotted	yellow	Stainless Steel	1241.6664.1113000	-	10
30	MO	100 mA	SPDT	IP40	RI dotted	blue	Stainless Steel	1241.6664.1114000	-	10
30	MO	5 A	SPDT	IP40	RI dotted	red	Stainless Steel	1241.6664.1121000	-	10
30	MO	5 A	SPDT	IP40	RI dotted	green	Stainless Steel	1241.6664.1122000	-	10
30	MO	5 A	SPDT	IP40	RI dotted	yellow	Stainless Steel	1241.6664.1123000	-	10
30	MO	5 A	SPDT	IP40	RI dotted	blue	Stainless Steel	1241.6664.1124000	-	10
30	MO	5 A	SPDT	IP40	RI dotted	white	Stainless Steel	1241.6664.1125000	-	10
30	MO	10 A	SPDT	IP40	RI dotted	green	Stainless Steel	1241.6664.1132000	-	10
30	MO	10 A	SPDT	IP40	RI dotted	blue	Stainless Steel	1241.6664.1134000	-	10
30	MO	5 A	DPDT	IP40	non-illuminated	-	Stainless Steel	1241.6961.1120000	-	10
30	MO	5 A	DPDT	IP40	non-illuminated	-	Stainless Steel	1241.6962.1120000	-	10
30	MO	5 A	DPDT	IP40	Point Illumination	red	Stainless Steel	1241.6963.1121000	-	10
30	MO	5 A	DPDT	IP40	Point Illumination	green	Stainless Steel	1241.6963.1122000	-	10
30	MO	5 A	DPDT	IP40	Ring Illumination	red	Stainless Steel	1241.6964.1121000	-	10
30	MO	5 A	DPDT	IP40	Ring Illumination	green	Stainless Steel	1241.6964.1122000	-	10
30	MO	5 A	DPDT	IP40	Ring Illumination	blue	Stainless Steel	1241.6964.1124000	-	10
30	MO	100 mA	SPDT	IP40	RI homogeneous	RGB	Stainless Steel	3-102-785	-	10
30	MO	10 A	SPDT	IP40	RI homogeneous	RGB	Stainless Steel	3-102-787	-	10
30	MO	100 mA	SPDT	IP40	RI homogeneous	red	Stainless Steel	3-108-964	-	10
30	MO	5 A	SPDT	IP40	RI homogeneous	red	Stainless Steel	3-108-965	-	10
30	MO	10 A	SPDT	IP40	RI homogeneous	red	Stainless Steel	3-108-966	-	10
30	MO	100 mA	SPDT	IP40	RI homogeneous	green	Stainless Steel	3-108-967	-	10
30	MO	5 A	SPDT	IP40	RI homogeneous	green	Stainless Steel	3-108-968	-	10
30	MO	10 A	SPDT	IP40	RI homogeneous	green	Stainless Steel	3-108-969	-	10
30	MO	100 mA	SPDT	IP40	RI homogeneous	blue	Stainless Steel	3-108-977	-	10
30	MO	5 A	SPDT	IP40	RI homogeneous	blue	Stainless Steel	3-108-978	-	10
30	MO	10 A	SPDT	IP40	RI homogeneous	blue	Stainless Steel	3-108-979	-	10
30	MO	5 A	SPDT	IP40	Color ring	red	Stainless Steel	3-136-770	-	10
30	MO	5 A	SPDT	IP40	Color ring	green	Stainless Steel	3-136-771	-	10
30	MO	5 A	SPDT	IP40	Color ring	blue	Stainless Steel	3-136-772	-	10
30	MO	5 A	SPDT	IP40	Color ring	black	Stainless Steel	3-136-773	-	10
30	MO	5 A	SPDT	IP40	Ring illumination RD	white	Aluminum	3-137-084	-	10
30	MO	5 A	SPDT	IP40	Ring illumination RD	RGB	Aluminum	3-137-087	-	10

Packaging unit

10 pcs.

In box or packed in air cushion bags

References / Document Downloads

27.02.2025

Share on Linkedin

Copy link

Send via e-mail

You will be transferred to the selected country page address. Therefore you will leave the SCHURTER main page.

If you would you like to visit your selected country page, please click on the button below:

If you would like to stay on the SCHURTER global website, please click on the button below:www.schurter.com

Note: Your country preferences for the SCHURTER Global Website are now saved.

Micro Switch	Contact Material	Switching Voltage	Switching current	Rated Switching Capacity	Lifetime	Contact Resistance	Insulation Resistance	Duration of Bounce
0.1 A, IP40	Au	max. 30 VDC	max. 0.1 A	3 W	0.2 Mio.	< 50 mΩ	> 100 MΩ	< 5 ms
0.1 A, IP67		max. 30 VDC	max. 0.1 A	25 W	0.05 Mio.
5 A / 125 VAC resp. 3 A / 250 VAC, IP40	Ag	max. 125 / 250 VAC	max. 5 / 3 A	750 W	0.2 Mio.	< 30 mΩ	> 100 MΩ	< 5 ms
6 A, IP67		max. 250 VAC	max. 5 A	1250 W	0.01 Mio.
10 A, IP40	Ag	max. 250 VAC	max. 10 A	2500 W	0.05 Mio.	< 30 mΩ	> 100 MΩ	< 5 ms
10 A, IP67		max. 250 VAC	max. 10 A	2500 W	0.01 Mio.

Operating Data	Forward Current max.	Forward Voltage at 10 mA	Forward Voltage max.
LED red	30 mA	1.9 VDC	3.0 VDC
LED green	30 mA	2.4 VDC	3.0 VDC
LED yellow	30 mA	2.4 VDC	3.0 VDC
LED blue	20 mA	3.8 VDC	4.5 VDC
LED red/green	25 mA	2.0 VDC	2.5 VDC
Attention: Switches with point illumination (PI) are delivered without series resistor.

The three digits are part of the ordner number key
000	No Lettering
001-100	Standard Lettering
101-	Customized Lettering

Laser Marking
001 = A	021 = U	041 = ÷	061 = EIN
002 = B	022 = V	042 = ✳	062 = AUS
003 = C	023 = W	043 = =	063 = AUF
004 = D	024 = X	044 = #	064 = AB
005 = E	025 = Y	045 = ↔	065 = ON
006 = F	026 = Z	046 = ↕	066 = OFF
007 = G	027 = 0	047 = →	067 = UP
008 = H	028 = 1	048 = ←	068 = DOWN
009 = I	029 = 2	049 = ↓	069 = HIGH
010 = J	030 = 3	050 = ↑	070 = LOW
011 = K	031 = 4	051 = %	071 = ON/OFF
012 = L	032 = 5	052 = √	072 = START
013 = M	033 = 6	053 = CTRL	073 = RESET
014 = N	034 = 7	054 = RETURN	074 =
015 = O	035 = 8	055 = SHIFT	075 =
016 = P	036 = 9	056 = LOCK	076 =
017 = Q	037 = +	057 = STOP	077 =
018 = R	038 = -	058 = ENTER
019 = S	039 = .	059 = BACK
020 = T	040 = x	060 = LINE
Please note that the font size depends on the number of characters

Transformation_Date:	2025-02-27 09:24:27
Export_Path:	/Datasheets_PrGrp_Workflow/DS_PrGrp_WF_ES/DS_PrGrp_WF_ES_PG70_Export/2025_02_27/07_16_30_238_553363/PGRSplits/
Export_Lang:	en
SGE_Name:	Switches
PG_Name:	Metal Line Switches
Typ_Name:	MSM MO
Typ_AliasNames:	:msm mo:,:MSMMO:,:msmmo:,:MSM_MO:,:msm_mo:
Typ_ID:	118626
Typ_Hierarchie:	030700100000003407
Typ_EPIM_Order:	190
Typ_Titel:	Metal Switch, Switching Voltage up to 250 VAC
PublPrgr_Name:	Metal Line Switches
PublPrgr_Shortcut:	PG70
Variant table:	ES_Variantentabelle_MSM_beleuchtet (248412)

SCHURTER Electronic components Catalog

MSM MO

Description MSM MO

Description

Unique Selling Proposition

Characteristics

Details MSM MO

Approvals

Compliances

Dimension [mm]

Assembly Instructions

Diagrams

Micro Switch

Point Illumination

Marking MSM MO

Order Index Lettering MSM MO

Order number key MSM MO

Packaging

Short Table of Variants MSM MO Open complete table MSM MO

References / Document Downloads

	All illuminated products and all non illuminated push buttons with symbols are supplied with anti-rotation protection

	Non-illuminated push-buttons are supplied without anti-rotation protection



	During assembly, the protruding bars of the holder should not be pressed together.



	I Housing II Flat Pin Terminal (Illumination) III O-Ring gasket IV Nut (Nut type see Dimensions) V Module Switching Contact

	Actuator Tolerance Range

	The mounting tolerance range of the actuator varies from 0.2 mm projection length and 0.2 mm short length to the housing edge. The slanting position of the actuator can range within this tolerance.

	MSM MO AI double-pole

	MSM MO RI single-pole

	MSM MO RI double-pole

	MSM MO PI single-pole
