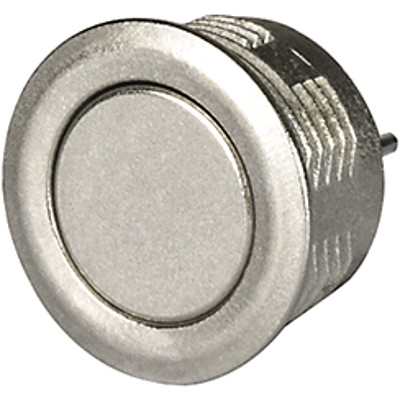

Non-illuminated
Actuator stainless steel

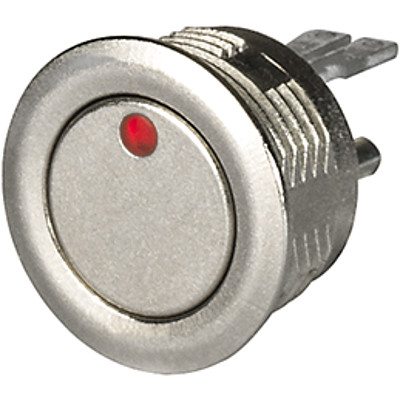

Point Illumination
red / green
Actuator stainless steel

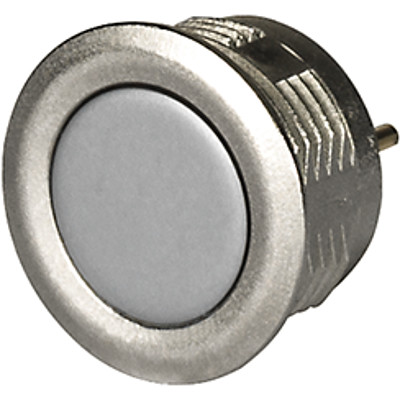

Non-illuminated

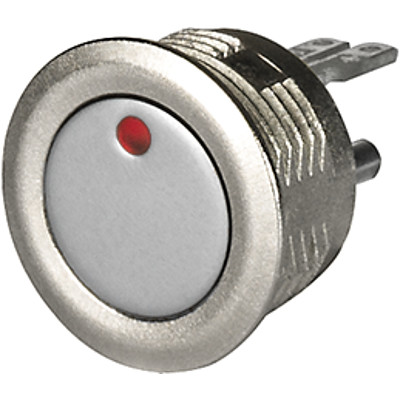

Actuator zinc die-cast
Point Illumination
red / green
Point Illumination
red / green
Description
- Momentary action switch available in version Standard, with Point Illumination, Lettering
- Assembly by mounting with nut
- Pin connections, Pins with Soldering Aid or Clip for Pins
Unique Selling Proposition
- Very low mounting depth
- High ingress protection IP67
- Resistant against vandalism
- Long lifetime
Characteristics
- Housing zinc die-cast with nickel plating and two actuator material types: zinc die-cast with nickel plating or stainless steel
- Wide range of materials, colours, lettering, colours of illumination
- Switching voltage max. 48 VDC, switching current max. 125 mA
- Zinc die-cast for housing and actuator
With or without illumination, no lettering - Stainless Steel for actuator
Optional point illumination and optional laser lettering with standard or customer-specific symbols
Electrical Data
Switching Function
N.O.
Supply Voltage
LED operating data are listed in separate table
Impulse Withstand Voltage (ESD)
8 kV with Ring Illumination
Contact Material Silver
Switching Voltage
min. 4 VDC , max. 48 VDC
Switching current
max. 125 mA
Rated Switching Capacity
1.2 W
Lifetime
1 million actuations at Rated Switching Capacity
Contact Resistance
< 50 mΩ, < 150 mΩ after lifetime
Insulation Resistance
> 100 MΩ
Duration of Bounce
< 1 ms
Contact Material Gold
Switching Voltage
min. 50 mVDC, max. 24 VDC
Switching current
max. 80 mA
Rated Switching Capacity
0.36 W
Lifetime
1 million actuations at Rated Switching Capacity
Contact Resistance
< 50 mΩ, < 150 mΩ after lifetime
Insulation Resistance
> 100 MΩ
Duration of Bounce
< 1 ms
Mechanical Data
Actuating Force
Max. 5 N
Actuating Travel
Max. 0.4 mm
Lifetime
1 million actuations
Shock Protection
IK06
Mounting screw torque
0.4 Nm with Sealing Ring, 1.5 Nm without Sealing Ring
Climatical Data
Operating Temperature
-20 to 60 °C
Storage Temperature
-20 to 60 °C
Protection Class
IP67 with O-Ring
Salt Spray Test (acc. to DIN 50021-SS)
24 h / 48 h / 96 h Residence Time
Other Data
Contact Material
Ag / Au
Soldering Data
Tinning
260 °C / 2 sec according to DIN IEC 60068-2-20
Solderability
260 °C / 2 sec (IEC 60068-2-20 Test Ta Method 1)
Resistance to Soldering Heat
260 °C / 5 sec (IEC 60068-2-20 Test Tb Method 1A)
Material
Housing
Zinc Die Casting Nickel Plated
Actuator unlettered
Zinc Die Casting Nickel Plated
Actuator lettered
Stainless Steel 1.4301
Contact
CuZn37 2,5 µm Ag
Snap Dome
X 12 CrNi 177 gold plated
Socket
PA
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | EMC Directive: | EMC directive 2004/108/EWG |
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Diagrams
| 1. Illumination color 2. Illumination color A1 + and A2 - = illumination color 1 A1 - and A2 + = illumination color 2 |
Point Illumination
| Operating Data | Forward Current max. | Forward Voltage at 10 mA | Forward Voltage max. |
| LED Colour 1: red/ Colour 2: green | 25 mA | 2.0 VDC | 2.5 VDC |
| Attention: Switches are delivered without series resistor. | |||
| Material | Lettering Colour | |
| Stainless Steel | black | Filled letters |
| Laser Marking | |||
| 001 = A | 021 = U | 041 = ÷ | 061 = EIN |
| 002 = B | 022 = V | 042 = ✳ | 062 = AUS |
| 003 = C | 023 = W | 043 = = | 063 = AUF |
| 004 = D | 024 = X | 044 = # | 064 = AB |
| 005 = E | 025 = Y | 045 = ↔ | 065 = ON |
| 006 = F | 026 = Z | 046 = ↕ | 066 = OFF |
| 007 = G | 027 = 0 | 047 = → | 067 = UP |
| 008 = H | 028 = 1 | 048 = ← | 068 = DOWN |
| 009 = I | 029 = 2 | 049 = ↓ | 069 = HIGH |
| 010 = J | 030 = 3 | 050 = ↑ | 070 = LOW |
| 011 = K | 031 = 4 | 051 = % | 071 = ON/OFF |
| 012 = L | 032 = 5 | 052 = √ | 072 = START |
| 013 = M | 033 = 6 | 053 = CTRL | 073 = RESET |
| 014 = N | 034 = 7 | 054 = RETURN | 074 = |
| 015 = O | 035 = 8 | 055 = SHIFT | 075 = |
| 016 = P | 036 = 9 | 056 = LOCK | 076 = |
| 017 = Q | 037 = + | 057 = STOP | 077 = |
| 018 = R | 038 = - | 058 = ENTER | |
| 019 = S | 039 = . | 059 = BACK | |
| 020 = T | 040 = x | 060 = LINE | |
|
Please note that the font size depends on the number of characters
|
|||
- Actuating elements in ESD safe packaging
- Screw nuts and sealing O-ring in a bag (enclosed in the box)
Short Table of Variants MCS 16 Open complete table MCS 16
| Terminal | Contact | Housing Material |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pins | Au | Zinc Diecasting | 3-109-081 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 3-109-091 | ... | |||||||
| Pins | Ag | Zinc Diecasting | 3-109-092 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 3-109-095 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 3-109-096 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 3-109-100 | ... | |||||||
| For Lettering versions see table "Order Index Lettering" to determine the symbol |
|||||||||||
| Nut with gasket are enclosed in the box. |
|||||||||||
| Packaging unit | 20 in box with insert |
