Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

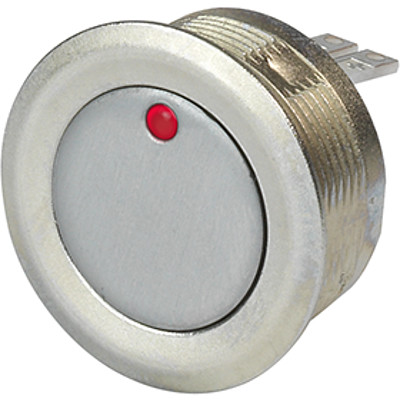

metal switch
Point Illumination
red / green

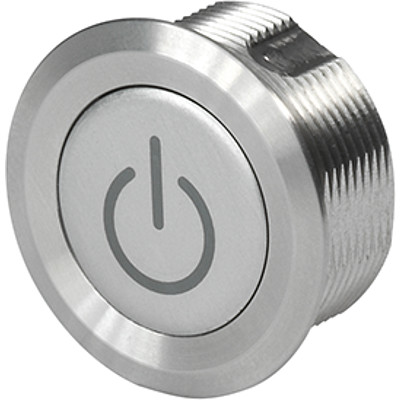

metal switch
lettered

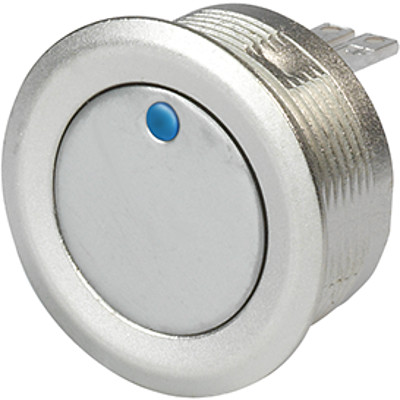

metal switch
Point Illumination
blue

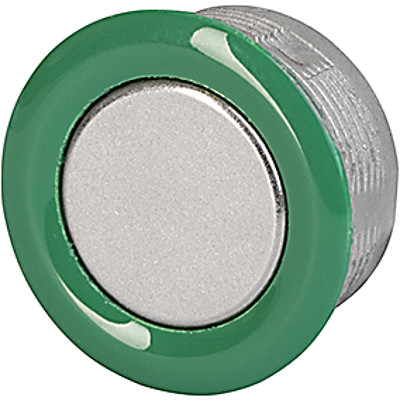

metal switch
painted green

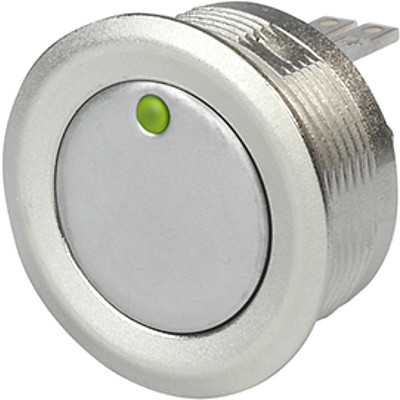

metal switch
Point Illumination
green
metal switch
Point Illumination
red

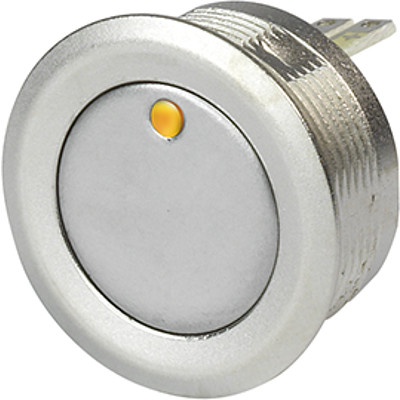

metal switch
Point Illumination
yellow

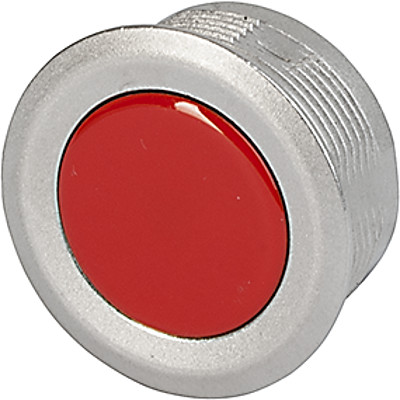

metal switch
Actuator painted red
Description
- Momentary action switch available in version Standard, with Point Illumination, Lettering, varnished in different colours
- Assembly by mounting with nut
- Pin connections, Pins with Soldering Aid or Clip for Pins
Characteristics
- Housing zinc die-cast with nickel plating and two actuator material types: zinc die-cast with nickel plating or stainless steel
- Wide range of materials, colours, lettering, colours of illumination
- Switching voltage max. 48 VDC, switching current max. 125 mA
- Zinc die-cast for housing and actuator
For indoor use, no illumination, no lettering - Stainless Steel for actuator
Optional point illumination and laser lettering with standard or customer-specific symbols - Stainless Steel for housing and actuator
for use in harsh environments outdoors (see technical data) - Varnished Version
Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications
(MOQ 1'000 pcs)
Electrical Data
Switching Function
N.O.
Supply Voltage
LED operating data are listed in separate table
Contact Material Silver
Switching Voltage
min. 4 VDC , max. 48 VDC
Switching current
max. 125 mA
Rated Switching Capacity
1.2 W
Lifetime
1 million actuations at Rated Switching Capacity
Contact Resistance
< 50 mΩ, < 150 mΩ after lifetime
Insulation Resistance
> 100 MΩ
Duration of Bounce
< 1 ms
Contact Material Gold
Switching Voltage
min. 50 mVDC, max. 24 VDC
Switching current
max. 80 mA
Rated Switching Capacity
0.36 W
Lifetime
1 million actuations at Rated Switching Capacity
Contact Resistance
< 50 mΩ, < 150 mΩ after lifetime
Insulation Resistance
> 100 MΩ
Duration of Bounce
< 1 ms
Mechanical Data
Actuating Force
3.7 N
Actuating Travel
0.4 mm
Lifetime
1 million actuations
Shock Protection
IK06
Mounting screw torque
0.4 Nm with Sealing Ring, 1.5 Nm without Sealing Ring
Climatical Data
Operating Temperature
-20 to 60 °C
Storage Temperature
-20 to 60 °C
Protection Class
IP67 with O-Ring
Salt Spray Test (acc. to DIN 50021-SS)
24 h / 48 h / 96 h Residence Time
Other Data
Contact Material
Ag / Au
Soldering Data
Tinning
260 °C / 2 sec according to DIN IEC 60068-2-20
Solderability
260 °C / 2 sec (IEC 60068-2-20 Test Ta Method 1)
Resistance to Soldering Heat
260 °C / 5 sec (IEC 60068-2-20 Test Tb Method 1A)
Material
Housing
Stainless Steel 1.4301 / Zinc Die Casting Nickel Plated
Actuator unlettered
Zinc Die Casting Nickel Plated
Actuator lettered
Stainless Steel
Contact
CuZn37 2,5 µm Ag
Snap Dome
X 12 CrNi 177 gold plated
Socket
PA
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Diagrams
Point Illumination
| Operating Data | Forward Current max. | Forward Voltage at 10 mA | Forward Voltage max. |
| LED red | 30 mA | 1.9 VDC | 3.0 VDC |
| LED green | 30 mA | 2.4 VDC | 3.0 VDC |
| LED yellow | 30 mA | 2.4 VDC | 3.0 VDC |
| LED blue | 20 mA | 3.8 VDC | 4.5 VDC |
| LED red/green | 25 mA | 2.0 VDC | 2.5 VDC |
| Attention: Switches are delivered without series resistor. | |||
| The last three digits in the order number define the lettering: | |
| 000 | No Lettering |
| 001-074 | Standard Lettering |
| 101- | Customized Lettering |
| Order example for labeling | |
| Order example labeling for varnished variants |
| Material | Lettering Colour | |
| Stainless Steel | black | Filled letters |
| Laser Marking | |||
| 001 = A | 021 = U | 041 = ÷ | 061 = EIN |
| 002 = B | 022 = V | 042 = ✳ | 062 = AUS |
| 003 = C | 023 = W | 043 = = | 063 = AUF |
| 004 = D | 024 = X | 044 = # | 064 = AB |
| 005 = E | 025 = Y | 045 = ↔ | 065 = ON |
| 006 = F | 026 = Z | 046 = ↕ | 066 = OFF |
| 007 = G | 027 = 0 | 047 = → | 067 = UP |
| 008 = H | 028 = 1 | 048 = ← | 068 = DOWN |
| 009 = I | 029 = 2 | 049 = ↓ | 069 = HIGH |
| 010 = J | 030 = 3 | 050 = ↑ | 070 = LOW |
| 011 = K | 031 = 4 | 051 = % | 071 = ON/OFF |
| 012 = L | 032 = 5 | 052 = √ | 072 = START |
| 013 = M | 033 = 6 | 053 = CTRL | 073 = RESET |
| 014 = N | 034 = 7 | 054 = RETURN | 074 = |
| 015 = O | 035 = 8 | 055 = SHIFT | 075 = |
| 016 = P | 036 = 9 | 056 = LOCK | 076 = |
| 017 = Q | 037 = + | 057 = STOP | 077 = |
| 018 = R | 038 = - | 058 = ENTER | |
| 019 = S | 039 = . | 059 = BACK | |
| 020 = T | 040 = x | 060 = LINE | |
|
Please note that the font size depends on the number of characters
|
|||
- Actuating elements in ESD safe packaging
- Screw nuts and sealing O-ring in a bag (enclosed in the box)
- Actuating elements in ESD safe packaging
- Screw nuts and sealing O-ring in a bag (enclosed in the box)
Short Table of Variants MCS 19 Open complete table MCS 19
| Terminal | Contact | Housing Material |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Pins | Ag | Zinc Diecasting | 1241.2800 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 1241.2801 | ... | |||||||
| Screw terminal | Ag | Zinc Diecasting | 1241.2802 | ... | |||||||
| Pins | Ag | Zinc Diecasting | 1241.2805 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 1241.2806 | ... | |||||||
| Screw terminal | Ag | Zinc Diecasting | 1241.2807 | ... | |||||||
| Pins | Au | Zinc Diecasting | 1241.2810 | ... | |||||||
| Screw terminal | Au | Zinc Diecasting | 1241.2812 | ... | |||||||
| Pins | Au | Zinc Diecasting | 1241.2815 | ... | |||||||
| Screw terminal | Au | Zinc Diecasting | 1241.2817 | ... | |||||||
| Pins | Ag | Stainless Steel | 1241.2820 | ... | |||||||
| Pins with Soldering Aid | Ag | Stainless Steel | 1241.2821 | ... | |||||||
| Screw terminal | Ag | Stainless Steel | 1241.2822 | ... | |||||||
| Screw terminal | Au | Stainless Steel | 1241.2827 | ... | |||||||
| Pins with Soldering Aid | Ag | Stainless Steel | 1241.2830 | ... | |||||||
| Pins with Soldering Aid | Ag | Stainless Steel | 1241.2831 | ... | |||||||
| Pins with Soldering Aid | Ag | Stainless Steel | 1241.2832 | ... | |||||||
| Pins with Soldering Aid | Ag | Stainless Steel | 1241.2833 | ... | |||||||
| Pins with Soldering Aid | Ag | Stainless Steel | 1241.2834 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 1241.2855 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 1241.2856 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 1241.2857 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 1241.2858 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 1241.2859 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 1241.2874.5 | ... | |||||||
| Screw terminal | Ag | Zinc Diecasting | 1241.2875.1 | ... | |||||||
| Pins with Soldering Aid | Ag | Zinc Diecasting | 1241.2878.3 | ... | |||||||
| For Lettering versions see table "Order Index Lettering" to determine the symbol |
|||||||||||
| Nut with gasket are enclosed in the box. |
|||||||||||
| Packaging unit | 20 in box with insert (20 pcs, with connecting terminal 10 pcs.) |
