Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.
Description
- VDE/UL Approvals, UMF 250, UMF 250 (Au), UMC 250 , see variants
- High breaking capacity of up to 200 A @ 250 VAC
- UL approval for 0.05 A - 4 A @ 250 VAC and 125 VDC
Rated Voltage
250 VAC, 125 VDC
Rated current
0.5 - 4 A
Breaking Capacity
100-200 A
Characteristic
Quick-Acting F
Mounting
PCB,SMT
Admissible Ambient Temp.
-40 °C to 85 °C
Climatic Category
40/085/21 acc. to IEC 60068-1
Material: Housing
Ceramics
Material: Terminals
Gold-Plated Copper Alloy
Storage Conditions
0 °C to 40 °C, max. 70% r.h.
Product Marking
, Rated current, Rated Voltage, Characteristic, Breaking Capacity

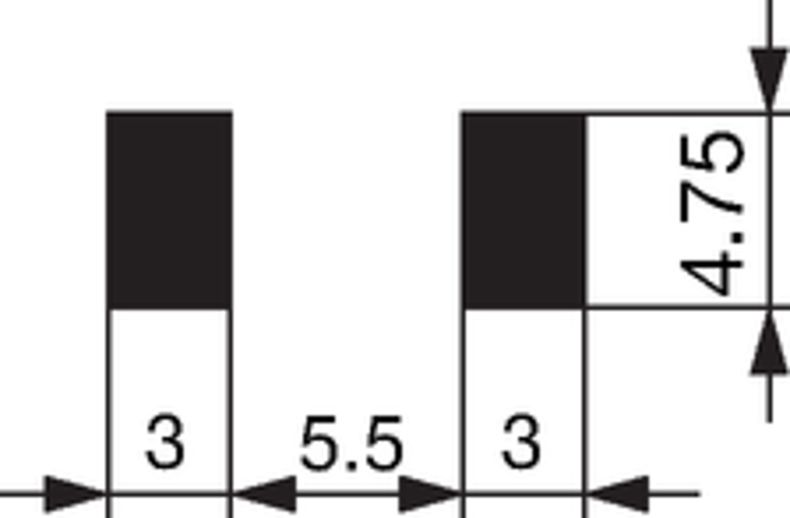

Soldering Methods
Reflow
Soldering Profile
Solderability
245 °C / 3 sec acc. to IEC 60068-2-58
Resistance to Soldering Heat
260 °C / 10 sec acc. to IEC 60068-2-58
Moisture Sensitivity Level
MSL 1, J-STD-020
Moisture Sensitivity Level
(acc. to EIA/IS-722, Test 4.4.3)
10% rated current. Temperatur change between 25°C und 65°C at 100% relative humidity. Duration: 24h each cycle, total 10 cycles
Operational Life
(acc. to EIA/IS-722, Test 4.4.1)
1000h @ 0.60 x In @ 70°C
Mechanical Shock
MIL-STD-202, Method 213 Condition A
Resistance to Solvents
Cleaning with common solvents
Terminal Strength
(acc. to EIA/IS-722, Test 4.5.5)
(Deflection of board 1 mm for 1 minute)
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: UMK 250
| Approval Logo | Certificates | Certification Body | Description |
|---|---|---|---|
|
VDE | VDE Certificate Number: 40027880 / 40023291 | |
|
UL | UR File Number: E41599 |
Product standards
Product standards that are referenced
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Designed according to | IEC 60127-6 | Miniature fuses. Part 6. Fuse-holders for miniature fuse-links |
|
|
Designed according to | IEC 60127-4 | Miniature fuses. Part 4. Universal modular fuse-links for through-hole and surface mount types |
|
Designed according to | UL 248-14 / 4248-1 | Low voltage fuses - Part 14: Supplemental fuses |
|
Designed according to | CSA22.2 No. 248.14 / No. 4248.1 | Low-Voltage Fuses - Part 14: Supplemental Fuses |
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | SCHURTER strives to offer our customers halogen free products. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Short Table of Variants UMK 250 Open complete table UMK 250
| Rated Current [A] | Rated Voltage [VAC] | Rated Voltage [VDC] | Order Number | Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 250 | 125 | 3404.2463.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.5 | 250 | 125 | 3404.2463.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.63 | 250 | 125 | 3404.2464.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.63 | 250 | 125 | 3404.2464.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.8 | 250 | 125 | 3404.2465.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 0.8 | 250 | 125 | 3404.2465.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 250 | 125 | 3404.2466.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1 | 250 | 125 | 3404.2466.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.25 | 250 | 125 | 3404.2467.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.25 | 250 | 125 | 3404.2467.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.6 | 250 | 125 | 3404.2468.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.6 | 250 | 125 | 3404.2468.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2 | 250 | 125 | 3404.2469.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2 | 250 | 125 | 3404.2469.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.5 | 250 | 125 | 3404.2470.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.5 | 250 | 125 | 3404.2470.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.15 | 250 | 125 | 3404.2471.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.15 | 250 | 125 | 3404.2471.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4 | 250 | 125 | 3404.2472.11 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4 | 250 | 125 | 3404.2472.22 | ... | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
1) IEC: 100 A @ 250 VAC / 100 A @ 125 VDC, resistive 1) UL: 200 A @ 250 VAC, p.f. ≥ 0.99 / 200 A @ 125 VDC, resistive 2) IEC: 100 A @ 250 VAC / 100 A @ 125 VDC, resistive 2) UL: 100 A @ 250 VAC, p.f. ≥ 0.99 / 100 A @ 125 VDC, resistive Approval Overview UMF 250 -> Fuse with tin-plated caps, Approval Status: VDE, UL LISTED, cURus, Free of CCC, PSE JET, KTL UMF 250 (Au) -> Fuse with gold-plated caps, Approval Status: VDE Mark, cURus and PSE JET UMC 250 -> Clip, Approval Status: VDE UG Mark and cURus UMK 250 = UMF 250 (Au) + UMC 250 There is no approval existing for the combination fuse and clip UMK 250, but the fuse and the clip are fully approved independently at VDE/UL. See details above. In the reflow soldering process, the fuse must have gold-plated caps, otherwise fuse and clip would be soldered together. For fuse replacement in the field, a standard UMF 250 fuse with tin-plated caps can be used. It is not allowed to replace higher rated current than 4 A in the clip. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Unit
acc. IEC 60286-3 Type 2a |
|
