UMF 250  Surface Mount Fuse, 3 x 10.1 mm, Quick-Acting F, 250 VAC, 125 VDC

Series: UMF 250

Surface Mount Fuse, 3 x 10.1 mm, Quick-Acting F, 250 VAC, 125 VDC

Free Sample Request

30 Variants


Description

  • Directly solderable on printed circuit boards
  • Impermeable to potting compound used to achieve hermetic seal for use in intrinsically safe applications according to ATEx and IECEx requirements.

Unique Selling Proposition

  • High breaking capacity up to 500A
  • Low melting I²t-values, fast interruption

Applications

  • Primary protection on SMD PCBs
  • Secondary protection on SMD PCBs
  • Battery Management System
  • Medical Equipment
  • Power supplies
  • Illumination

Rated Voltage

250 VAC, 125 VDC

Rated current

0.5 - 15 A

Breaking Capacity

100 A - 500 A

Characteristic

Quick-Acting F

Mounting

PCB,SMT

Admissible Ambient Temp.

-55 °C to 125 °C

Climatic Category

55/125/21 acc. to IEC 60068-1

Material: Housing

Ceramics

Material: Terminals

Copper alloy, tin-plated

Unit Weight

0.23 g

Storage Conditions

0 °C to 40 °C, max. 70% r.h.

Product Marking

Schurter_Prüfzeichen, UMF, Rated current, Rated Voltage, Characteristic, Breaking Capacity

Soldering Methods

Reflow, Wave
Soldering Profile

Solderability

245 °C / 3 sec acc. to IEC 60068-2-58, Test Td

Resistance to Soldering Heat

260 °C / 10 sec acc. to IEC 60068-2-58, Test Td

Moisture Sensitivity Level

MSL 1, J-STD-020

Case Resistance

>100 MΩ (between leeds and body)
acc. to EIA/IS-722, Test 4.7

Moisture Sensitivity Level

MIL-STD-202, Method 106
(acc. to EIA/IS-722, Test 4.4.3)

Operational Life

1000h @ 0.60 x In @ 70°C
(acc. to EIA/IS-722, Test 4.4.1)

Mechanical Shock

MIL-STD-202, Method 213 Condition A

Resistance to Solvents

MIL-STD-202, Method 215

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: UMF 250

Approval Logo Certificates Certification Body Description
Approval marks VDE VDE VDE Certificate Number: 40027880 & 40048753
Approval marks cURus UL UR File Number: E41599
Approval marks PSE METI Japan Electrical Safety and Environment technology Laboratories


Product standards

Product standards that are referenced

Organization Design Standard Description
Approval marks IEC_Certification_Body Designed according to IEC 60127-4/2 Miniature fuses. Part 4. Universal modular fuse-links for through-hole and surface mount types
Approval marks IEC_Certification_Body Designed according to IEC 60127-7/1 Miniature fuses - Part 7: Miniature fuse-links for special applications
Approval marks UL Designed according to UL 248-14 Low voltage fuses - Part 14: Supplemental fuses
Approval marks CSA_Certification_Body Designed according to CSA22.2 No. 248.14 Low-Voltage Fuses - Part 14: Supplemental Fuses


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety Halogenfree SCHURTER AG SCHURTER strives to offer our customers halogen free products.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Approval marks UMF SCHURTER AG Universal Modular Fuse meets the standard IEC 60127-4

010010230000000351
LOADING...

Dimension [mm]

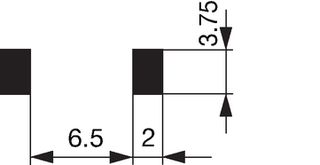

Soldering pads

Derating Curves

Percentage of Rating [%]
Ambient Temperature [°C]

Pre-Arcing Time

Rated Current In 1.0 x In min. 1.25 x In min. 2.0 x In max. 10.0 x In min. 10.0 x In max.
0.5 A - 8 A - 60 min 120 s 1 ms 10 ms
10 A - 15 A 4 h - 120 s 1 ms 10 ms

Time-Current-Curves

Time in Seconds
Current in Amperes


Short Table of Variants UMF 250 Open complete table UMF 250

Rated Current [A] Rated Voltage [VAC] Rated Voltage [VDC] Order Number
Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

0.5 250 125 3405.0163.11 ...
0.5 250 125 3405.0163.24 ...
0.63 250 125 3405.0164.11 ...
0.63 250 125 3405.0164.24 ...
0.8 250 125 3405.0165.11 ...
0.8 250 125 3405.0165.24 ...
1 250 125 3405.0166.11 ...
1 250 125 3405.0166.24 ...
1.25 250 125 3405.0167.11 ...
1.25 250 125 3405.0167.24 ...
1.6 250 125 3405.0168.11 ...
1.6 250 125 3405.0168.24 ...
2 250 125 3405.0169.11 ...
2 250 125 3405.0169.24 ...
2.5 250 125 3405.0170.11 ...
2.5 250 125 3405.0170.24 ...
3.15 250 125 3405.0171.11 ...
3.15 250 125 3405.0171.24 ...
4 250 125 3405.0172.11 ...
4 250 125 3405.0172.24 ...
5 250 125 3405.0173.11 ...
5 250 125 3405.0173.24 ...
6.3 250 125 3405.0174.11 ...
6.3 250 125 3405.0174.24 ...
8 250 125 3405.0175.11 ...
8 250 125 3405.0175.24 ...
10 250 125 3405.0176.11 ...
10 250 125 3405.0176.24 ...
15 125 125 3405.0178.11 ...
15 125 125 3405.0178.24 ...

1) IEC: 100 A @ 250 VAC / 100 A @ 125 VDC, resistiv

1) UL: 200 A @ 250 VAC, p.f. ≥ 0.99 / 200 A @ 125 VDC, resistiv

2) IEC: 100 A @ 250 VAC / 100 A @ 125 VDC, resistiv

2) UL: 200 A @ 250 VAC, p.f. ≥ 0.99 / 200 A @ 125 VDC, resistiv

2) PSE: 100 A @ 250 VAC

3) IEC: 100 A @ 250 VAC / 100 A @ 125 VDC, resistiv

3) UL: 100 A @ 250 VAC, p.f. ≥ 0.99 / 100 A @ 125 VDC, resistiv

3) PSE: 100 A @ 250 VAC

4) UL: 150 A @ 125 VAC, p.f. ≥ 0.99 / 500 A @ 125 VDC, tau < 0.1ms

4) PSE: 100 A @ 250 VAC

Packaging Unit
acc. IEC 60286-3 Type 2a
.xx = .11 100 pcs in ESD-plastic bag
.xx = .24 2000 pcs. in tape [W: 24mm and P1: 8mm] on reel [A: 33cm]

010010230000000351
