Series: UHS

UHS Fuse 50 - 100A, 32/50 VDC, 8.4 x 9.4 mm

12 Variants

Approvals and Compliances

CAD

Description

This fuse was specially developed for SELV applications with high rated currents for highest breaking capacity demands. Thanks to its design, the fuses tripping time minimizes excessive temperature dissipation at 2x rated current.

Unique Selling Proposition

High breaking capacity up to 2000A
Safe tripping in 10s at twice the rated current
High range of operating temperature
Small component height of 4.7 mm

Applications

Automotive
Telecom equipment
Datacenter appliances
Power tools

Detailed request for product

Details UHS

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Rated current

50-100 A

Breaking Capacity

2000 A

Characteristic

Quick-Acting F

Mounting

PCB,SMT

PCB surface terminal temp.

-55 °C to 125 °C

Material: Housing

Polyphthalamid

Material: Terminals

Ni/Sn-Plated Copper Alloy

Unit Weight

0.53 g

Storage Conditions

0 °C to 40 °C, max. 70% r.h.

Product Marking

Schurter_Prüfzeichen , Marking, gR, Lot Code

Soldering Methods

Reflow
Soldering Profile

Solderability

245 °C / 3 sec acc. to IEC 60068-2-58

Resistance to Soldering Heat

260 °C / 30 sec acc. to IPC/JEDEC J-STD-020D, Level 1

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: UHS

Approval Logo	Certificates	Certification Body	Description
	UL Approvals	UL	UR File Number: E531402

Product standards

Product standards that are referenced

Organization	Design	Standard	Description
	Designed according to	UL 248-13	Low voltage fuses - Part 14: Supplemental fuses
	Designed according to	CSA C22.2 No. 248.13:22	Low voltage fuses - Part 13: Semiconductor fuses

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Halogen Free	SCHURTER AG	SCHURTER strives to offer our customers halogen free products.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Automotive	SCHURTER AG	AEC-Q200 is a test standard for passive components used in automotive applications. SCHURTER tests components according to the customer's agreement and is certified according to IATF 16949.

Dimension [mm]

	Reflow soldering pads

Derating Curves

	Temperature Derating
Percentage of Rating [%]
	Ambient Temperature [°C]

Pre-Arcing Time

Rated Current In	1.0 x In min.	2.0 x In max.	10.0 x In min.	10.0 x In max.
50 A - 100 A	4 h	10 s	1 ms	10 ms

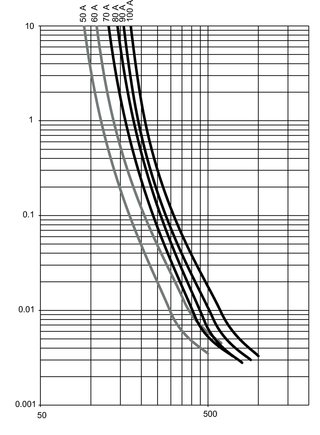

Time-Current-Curves


Time in Seconds
	Current in Amperes

Short Table of Variants UHS Open complete table UHS

Rated Current [A]	Rated Voltage [VDC]	Marking	Order Number Variant Details The link on the respective order number refers to a separat tab with specific detailed information . This assures better readable information of the selected product. Change to the tab All Products in order to show details of another variant. This approach offers to use generic alias link to the product details: www.schurter.xx/art/ [Order Number] where the following variables are used: - xx is the country specific domain - [Order Number]	Free Sample Free Sample Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.	...


50	32	UHS 50A	3-140-167	-	...
50	32	UHS 50A	3-140-168	-	...
60	32	UHS 60A	3-140-169	-	...
60	32	UHS 60A	3-140-170	-	...
70	50	UHS 70A	3-140-171	-	...
70	50	UHS 70A	3-140-172	-	...
80	50	UHS 80A	3-140-173	-	...
80	50	UHS 80A	3-140-174	-	...
90	50	UHS 90A	3-140-175	-	...
90	50	UHS 90A	3-140-176	-	...
100	50	UHS 100A	3-140-177	-	...
100	50	UHS 100A	3-140-178	-	...
Breaking Capacity: 1) 1000 A @ 32 VDC, 1300 A @ 24 VDC, 1500 A @ 16 VDC 2) 600 A @ 50 VDC, 1000 A @ 32 VDC, 1300 A @ 24 VDC , 2000 A @ 16 VDC All measurements are carried out on a test board according to IEC 60127, track width 22 mm, Cu layer 210 µm.

Packaging Unit
acc. IEC 60286-3 Type 2a

	1000 pcs. in tape [W: 24mm and P1: 12mm] on reel [A: 33cm]
	100 pcs. in tape [W: 24mm and P1: 12mm] in ESD plastic bag

Table of Variants UHS

Rated Current [A]	Rated Voltage [VDC]	Marking	Breaking Capacity	Voltage Drop 1.0 In typ. [mV]	Cold Resistance typ. [mΩ]	Melting I²t 10.0 In typ. [A²s]	Packaging unit	Order Number Variant Details The link on the respective order number refers to a separat tab with specific detailed information . This assures better readable information of the selected product. Change to the tab All Products in order to show details of another variant. This approach offers to use generic alias link to the product details: www.schurter.xx/art/ [Order Number] where the following variables are used: - xx is the country specific domain - [Order Number]	Free Sample Free Sample Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact-Form


50	32	UHS 50A	1)	110	1.82	800	100	3-140-167	-	100
50	32	UHS 50A	1)	110	1.82	800	1000	3-140-168	-	1000
60	32	UHS 60A	1)	115	1.5	1400	100	3-140-169	-	100
60	32	UHS 60A	1)	115	1.5	1400	1000	3-140-170	-	1000
70	50	UHS 70A	2)	90	1.03	1500	100	3-140-171	-	100
70	50	UHS 70A	2)	90	1.03	1500	1000	3-140-172	-	1000
80	50	UHS 80A	2)	95	0.88	1700	100	3-140-173	-	100
80	50	UHS 80A	2)	95	0.88	1700	1000	3-140-174	-	1000
90	50	UHS 90A	2)	105	0.77	2300	100	3-140-175	-	100
90	50	UHS 90A	2)	105	0.77	2300	1000	3-140-176	-	1000
100	50	UHS 100A	2)	110	0.71	3200	100	3-140-177	-	100
100	50	UHS 100A	2)	110	0.71	3200	1000	3-140-178	-	1000
Breaking Capacity: 1) 1000 A @ 32 VDC, 1300 A @ 24 VDC, 1500 A @ 16 VDC 2) 600 A @ 50 VDC, 1000 A @ 32 VDC, 1300 A @ 24 VDC , 2000 A @ 16 VDC All measurements are carried out on a test board according to IEC 60127, track width 22 mm, Cu layer 210 µm.
