Transipillars
Style 1

Transipillars
Style 2

Transipillars
Style 3

Transipillars

Series: Transipillars

Transipillars, a rugged insulated mounting system

67 Variants

Approvals and Compliances

CAD

Description

Versatile and rugged insulation mounting system
Various combination of stud and insert
Metric threads and lenghts
Studs and inserts moulded into nylon pyllar
Body hexagonal or cylindric
custom specific versions on request

Details Transipillars

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Material

Stud threads - steel zinc plated BS class 5G Insert threads - plain brass BS class 6H Body - nylon 66, UL 94V-2

Dielectric Strength

> 11 kVDC

Insulation Resistance

> 10000 MΩ @ 500 VDC ( min thickness 1mm )

Allowable Operation Temperature

-20 °C to +80 °C

Storage Conditions

0 °C to 40 °C max. 70% r.h.

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Identification	Details	Initiator	Description
	RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
	REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

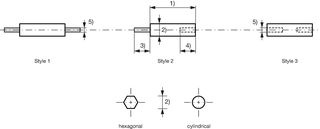

Dimensions [mm]



	1) Length 2) Diameter 3) Stud length 4) Insert depth 5) Thread size

Short Table of Variants Transipillars Open complete table Transipillars

Style	Length [mm]	Form	Order Number Variant Details The link on the respective order number refers to a separat tab with specific detailed information . This assures better readable information of the selected product. Change to the tab All Products in order to show details of another variant. This approach offers to use generic alias link to the product details: www.schurter.xx/art/ [Order Number] where the following variables are used: - xx is the country specific domain - [Order Number]	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	...

1	13	cylindrical	9831.3100	A	...
1	13	hexagonal	9631.3100	A	...
1	22	cylindrical	9842.2100	A	...
1	22	cylindrical	9852.2100	A	...
1	22	hexagonal	9642.2100	A	...
1	22	hexagonal	9652.2100	A	...
1	25	cylindrical	9832.5100	A	...
1	25	hexagonal	9632.5100		...
1	32	cylindrical	9863.2100	A	...
1	32	hexagonal	9663.2100	A	...
1	38	cylindrical	9853.8100	A	...
1	38	cylindrical	9863.8100	A	...
2	13	cylindrical	9831.3200	A	...
2	13	hexagonal	9631.3200	A	...
2	16	cylindrical	9841.6200	A	...
2	16	hexagonal	9641.6200	A	...
2	22	cylindrical	9852.2200	A	...
2	22	hexagonal	9652.2200	A	...
2	25	cylindrical	9832.5200	A	...
2	25	cylindrical	9842.5200		...
2	25	cylindrical	9852.5200	A	...
2	25	hexagonal	9632.5200	A	...
2	25	hexagonal	9642.5200	A	...
2	25	hexagonal	9652.5200		...
2	32	cylindrical	9843.2200		...
2	32	cylindrical	9863.2200	A	...
2	32	hexagonal	9663.2200	A	...
2	38	cylindrical	9843.8200	A	...
2	38	cylindrical	9853.8200	A	...
2	38	cylindrical	9863.8200	A	...
2	38	hexagonal	9643.8200	A	...
2	38	hexagonal	9653.8200	A	...
2	38	hexagonal	9663.8200	A	...
2	45.0	cylindrical	9854.5200	A	...
2	45.0	hexagonal	9654.5200	A	...
2	51	cylindrical	9855.1200	A	...
2	51	cylindrical	9865.1200	A	...
2	51	hexagonal	9655.1200	A	...
2	51	hexagonal	9665.1200	A	...
2	64	cylindrical	9866.4200		...
3	13	cylindrical	9831.3300	A	...
3	13	hexagonal	9631.3300	A	...
3	16	cylindrical	9831.6300		...
3	16	cylindrical	9841.6300		...
3	16	hexagonal	9641.6300	A	...
3	19	cylindrical	9831.9300		...
3	19	cylindrical	9841.9300		...
3	19	hexagonal	9641.9300	A	...
3	22	cylindrical	9852.2300		...
3	22	hexagonal	9652.2300	A	...
3	25	cylindrical	9832.5300	A	...
3	25	cylindrical	9842.5300	A	...
3	25	hexagonal	9632.5300	A	...
3	25	hexagonal	9642.5300	A	...
3	32	cylindrical	9833.2300	A	...
3	32	cylindrical	9863.2300		...
3	32	hexagonal	9633.2300	A	...
3	32	hexagonal	9663.2300	A	...
3	38	cylindrical	9833.8300	A	...
3	38	hexagonal	9633.8300	A	...
3	51	cylindrical	9690.0100	A	...
3	51	cylindrical	9865.1300	A	...
3	51	hexagonal	9645.1300	A	...
3	51	hexagonal	9665.1300		...
3	64	cylindrical	9856.4300	A	...
3	64	hexagonal	9646.4300	A	...
3	64	hexagonal	9656.4300	A	...
█ Most Popular.

Packaging unit

100 Pcs

Table of Variants Transipillars

Style	Length [mm]	Form	Thread size	Diameter [mm]	Stud length [mm]	Insert depth [mm]	Order Number Variant Details The link on the respective order number refers to a separat tab with specific detailed information . This assures better readable information of the selected product. Change to the tab All Products in order to show details of another variant. This approach offers to use generic alias link to the product details: www.schurter.xx/art/ [Order Number] where the following variables are used: - xx is the country specific domain - [Order Number]	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact-Form

1	13	cylindrical	M3	7	6.5	-	9831.3100	A	100
1	13	hexagonal	M3	7	6.5	-	9631.3100	A	100
1	22	cylindrical	M4	9.5	9.5	-	9842.2100	A	100
1	22	cylindrical	M5	12.5	12.5	-	9852.2100	A	100
1	22	hexagonal	M4	10	9.5	-	9642.2100	A	100
1	22	hexagonal	M5	13	12.5	-	9652.2100	A	100
1	25	cylindrical	M3	7	6.5	-	9832.5100	A	100
1	25	hexagonal	M3	7	6.5	-	9632.5100		100
1	32	cylindrical	M6	16	12.5	-	9863.2100	A	100
1	32	hexagonal	M6	16	12.5	-	9663.2100	A	100
1	38	cylindrical	M5	12.5	12.5	-	9853.8100	A	100
1	38	cylindrical	M6	16	12.5	-	9863.8100	A	100
2	13	cylindrical	M3	7	6.5	4.5	9831.3200	A	100
2	13	hexagonal	M3	7	6.5	4.5	9631.3200	A	100
2	16	cylindrical	M4	9.5	9.5	6.5	9841.6200	A	100
2	16	hexagonal	M4	10	9.5	6.5	9641.6200	A	100
2	22	cylindrical	M5	12.5	12.5	8	9852.2200	A	100
2	22	hexagonal	M5	13	12.5	8	9652.2200	A	100
2	25	cylindrical	M3	7	6.5	4.5	9832.5200	A	100
2	25	cylindrical	M4	9.5	9.5	6.5	9842.5200		100
2	25	cylindrical	M5	12.5	12.5	8	9852.5200	A	100
2	25	hexagonal	M3	7	6.5	4.5	9632.5200	A	100
2	25	hexagonal	M4	10	9.5	6.5	9642.5200	A	100
2	25	hexagonal	M5	13	12.5	8	9652.5200		100
2	32	cylindrical	M4	9.5	9.5	6.5	9843.2200		100
2	32	cylindrical	M6	16	12.5	12.5	9863.2200	A	100
2	32	hexagonal	M6	16	12.5	12.5	9663.2200	A	100
2	38	cylindrical	M4	9.5	9.5	6.5	9843.8200	A	100
2	38	cylindrical	M5	12.5	12.5	8	9853.8200	A	100
2	38	cylindrical	M6	16	12.5	12.5	9863.8200	A	100
2	38	hexagonal	M4	10	9.5	6.5	9643.8200	A	100
2	38	hexagonal	M5	13	12.5	8	9653.8200	A	100
2	38	hexagonal	M6	16	12.5	12.5	9663.8200	A	100
2	45.0	cylindrical	M5	12.5	12.5	8	9854.5200	A	100
2	45.0	hexagonal	M5	13	12.5	8	9654.5200	A	100
2	51	cylindrical	M5	12.5	12.5	8	9855.1200	A	100
2	51	cylindrical	M6	16	12.5	12.5	9865.1200	A	100
2	51	hexagonal	M5	13	12.5	8	9655.1200	A	100
2	51	hexagonal	M6	16	12.5	12.5	9665.1200	A	100
2	64	cylindrical	M6	16	12.5	12.5	9866.4200		100
3	13	cylindrical	M3	7	-	4.5	9831.3300	A	100
3	13	hexagonal	M3	7	-	4.5	9631.3300	A	100
3	16	cylindrical	M3	7	-	4.5	9831.6300		100
3	16	cylindrical	M4	9.5	-	6.5	9841.6300		100
3	16	hexagonal	M4	10	-	6.5	9641.6300	A	100
3	19	cylindrical	M3	7	-	4.5	9831.9300		100
3	19	cylindrical	M4	9.5	-	6.5	9841.9300		100
3	19	hexagonal	M4	10	-	6.5	9641.9300	A	100
3	22	cylindrical	M5	12.5	-	8	9852.2300		100
3	22	hexagonal	M5	13	-	8	9652.2300	A	100
3	25	cylindrical	M3	7	-	4.5	9832.5300	A	100
3	25	cylindrical	M4	9.5	-	6.5	9842.5300	A	100
3	25	hexagonal	M3	7	-	4.5	9632.5300	A	100
3	25	hexagonal	M4	10	-	6.5	9642.5300	A	100
3	32	cylindrical	M3	7	-	4.5	9833.2300	A	100
3	32	cylindrical	M6	16	-	12.5	9863.2300		100
3	32	hexagonal	M3	7	-	4.5	9633.2300	A	100
3	32	hexagonal	M6	16	-	12.5	9663.2300	A	100
3	38	cylindrical	M3	7	-	4.5	9833.8300	A	100
3	38	hexagonal	M3	7	-	4.5	9633.8300	A	100
3	51	cylindrical	M4	12.5	-	6.5	9690.0100	A	100
3	51	cylindrical	M6	16	-	12.5	9865.1300	A	100
3	51	hexagonal	M4	10	-	6.5	9645.1300	A	100
3	51	hexagonal	M6	16	-	12.5	9665.1300		100
3	64	cylindrical	M5	12.5	-	8	9856.4300	A	100
3	64	hexagonal	M4	10	-	6.5	9646.4300	A	100
3	64	hexagonal	M5	13	-	8	9656.4300	A	100
█ Most Popular.
