Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.
10 Variants
Description
- Thermal circuit breaker
- 3-pole
- Snap-in version
- Positively trip-free release
- Method of operation acc. to IEC: S-type
- Different rocker colours
- Wide current range
Unique Selling Proposition
- 1-, 2- or 3-pole versions
- Finely graded rated currents
- High configurability (rocker colours, lettering, illumination)
- IP65 with optional cover
Applications
- Power tools
- Medical and laboratory equipment
- Industrial appliances
- Equipment for construction
- Cleaning equipment
- Commercial and household kitchen appliances
- Industrial Power
- Industrial lighting arrays
Other versions on request
- White front cover
Rated Voltage AC
415 Y VAC / 240 VAC
Rated current range AC
0.05 - 12 A
Conditional short circuit capacity Inc
IEC 60934: 0.05...12 A: 2 kA @ 415 VAC
Degree of Protection
front side IP40 acc. to IEC 60529
Dielectric Strength
50 Hz: > 2.5 kV
Impulse 1.2/50 μs: > 4 kV
Insulation Resistance
500 VDC > 100 MΩ
Lifetime
mechanical: 50'000 switching cycles
AC: 1 x Ir, cos φ 0.6:
50'000 switching cycles
DC: 1 x Ir, L/R = 2 - 3 ms:
50'000 switching cycles
Overload
IEC: min. 40 trips
@ 6 x Ir, cos φ 0.6
UL / CSA: min. 50 trips
@ 1.5 x Ir, cos φ 0.75
Allowable Operation Temp.
-30 °C to 60 °C
Storage Temperature
-40 °C to 60 °C
Vibration Resistance
± 0.75 mm @ 10 - 60 Hz
acc. to IEC 60068-2-6, test Tc
10 G @ 60 - 500 Hz
acc. to IEC 60068-2-6, test Tc
Shock Resistance
30 G / 18 ms
acc. to IEC 60068-2-27, test Ea
Tripping Type
Thermal
Actuation Type
Rocker
Weight
43.0 - 45.0 g
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: TA35
| Approval Logo | Certificates | Certification Body | Description |
|---|---|---|---|
|
VDE | VDE Certificate Number: 40019754 | |
|
UL | UR File Number: E71572 | |
|
CCC | CCC Certificate Number: 2024010307676639 |
Product standards
Product standards that are referenced
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Designed according to | IEC 60934 | Circuit-breakers for equipment (CBE) |
|
Designed according to | UL 1077 | Standard for Supplementary Protectors for Use in Electrical Equipment |
|
Designed according to | CSA C22.2 No. 235 | Supplementary Protectors |
|
|
Designed according to | GB 17701 | Circuit-breaker for equipment |
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...

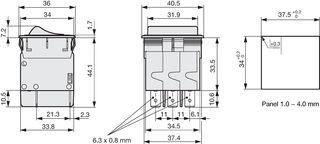

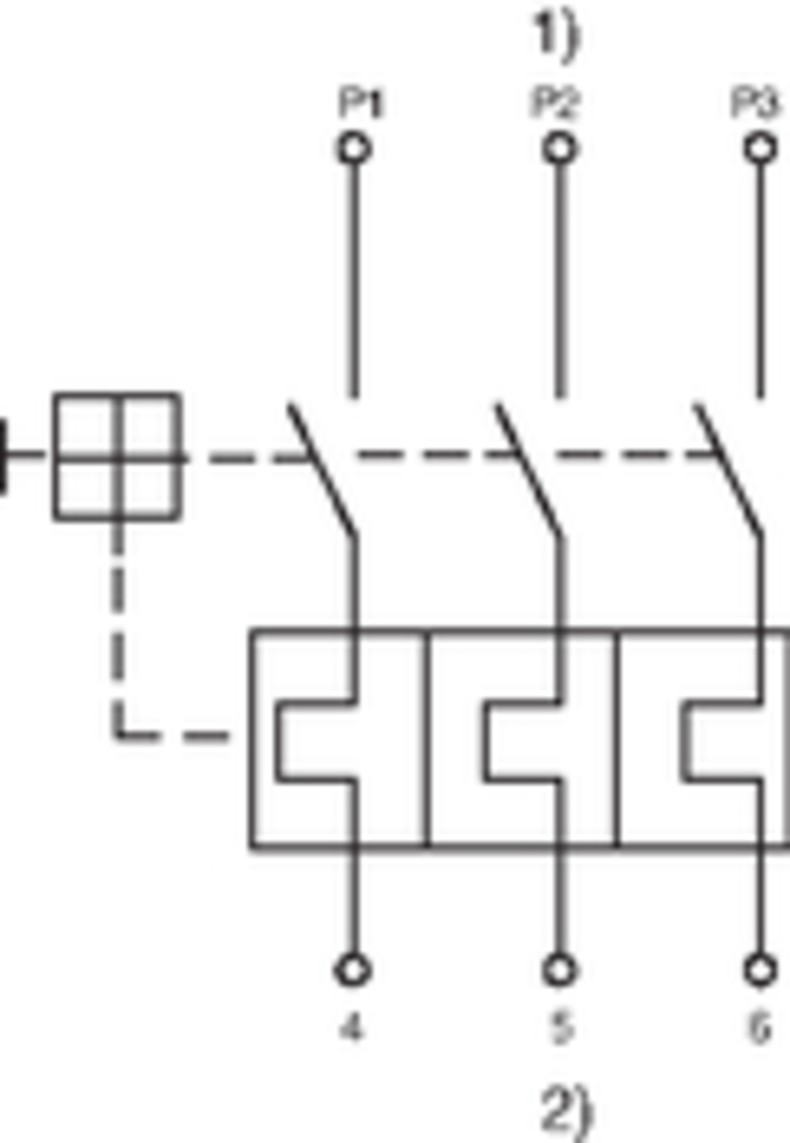

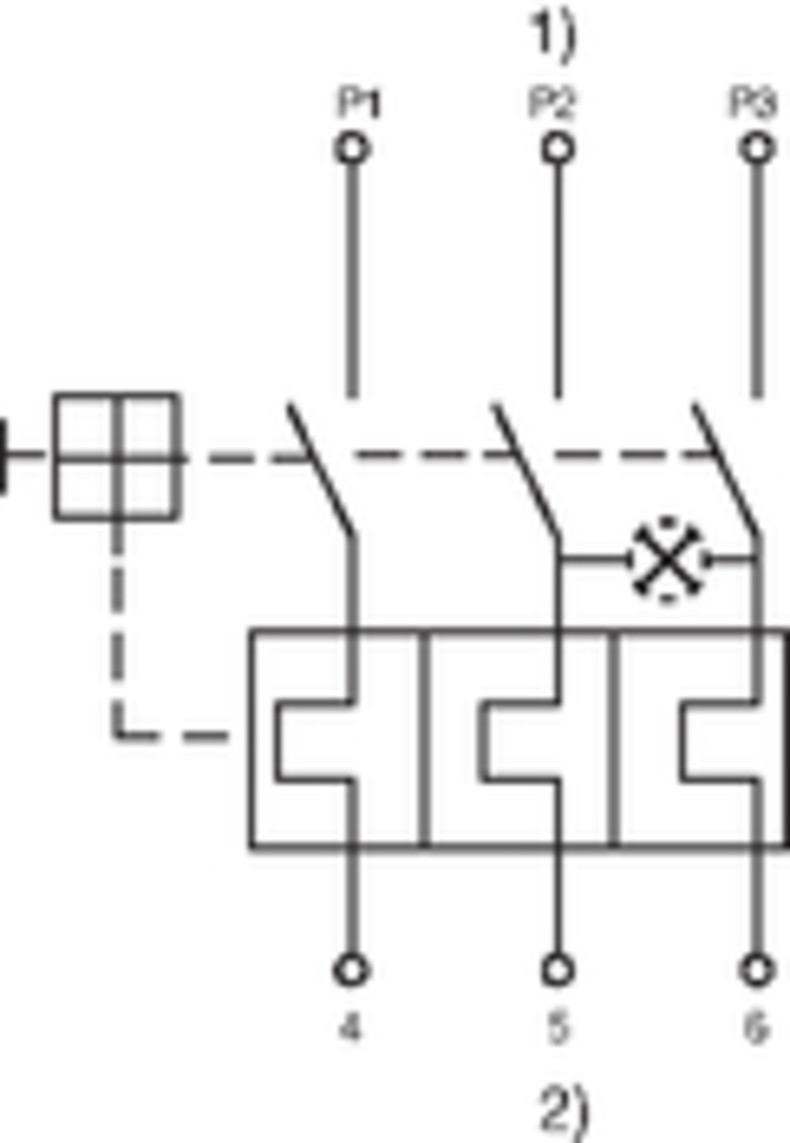

Diagrams
The keys / codepos are listed in the key table of the basic function for selection.
Approvals
| Approval | Rated current | Rated Voltage AC | Rated Voltage DC | |
| UL 1077 | 0.05...12 A | 415 Y / 240 V | - | |
| CSA C22.2 235 | 0.05...12 A | 415 Y / 240 V | - | |
| IEC 60934 | 0.05...12 A | 415 Y / 240 V | - | |
| GB 17701 | 0.05...12 A | 415 Y / 240 V | - | |
Typical internal resistance per pole
| Rated Current [A] | Internal Resistance [Ω] |
| 0.05 | 200.000 |
| 0.1 | 70.000 |
| 0.5 | 2.750 |
| 1.0 | 0.720 |
| 1.5 | 0.340 |
| 2.0 | 0.187 |
| 2.5 | 0.115 |
| 2.8 | 0.089 |
| 3.0 | 0.059 |
| 4.0 | 0.059 |
| 5.0 | 0.044 |
| 6.0 | 0.028 |
| 7.0 | 0.0142 |
| 8.0 | 0.0142 |
| 10.0 | 0.0109 |
| 12.0 | 0.0086 |
| 13.0 * | 0.0072 |
| 14.0 * | 0.0072 |
| 15.0 * | 0.0056 |
| 16.0 * | 0.0056 |
| 18.0 * | 0.0052 |
| 20.0 * | 0.0052 |
| * 3-Pole max. 12 A | |
Time-Current-Curves
| Tripping Characteristics thermal magnetic fast acting |
|
|
Time in Seconds
|
|
| Multiple of Rated Current In Ambient temperature +23° |
Effect of ambient temperature
| Ambient Temperature [°C] | Correction factor |
| -30 | 0.76 |
| -20 | 0.81 |
| 0 | 0.90 |
| +23 | 1.00 |
| +40 | 1.06 |
| +50 | 1.10 |
| +60 | 1.14 |
Short Table of Variants TA35 Rocker 3Pole Open complete table TA35 Rocker 3Pole
| Basic function | Rocker colour | Legend |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |
|---|---|---|---|---|---|---|---|
| 3-pole, 3 bimetal, without illumination | Black | white printed | 4435.0229 | ... | |||
| 3-pole, 3 bimetal, without illumination | White | embossed | 4435.0025 | ... | |||
| 3-pole, 3 bimetal, without illumination | Black | white printed | 4435.0232 | ... | |||
| 3-pole, 3 bimetal, without illumination | White | embossed | 4435.0044 | ... | |||
| 3-pole, 3 bimetal, without illumination | Black | white printed | 4435.0048 | ... | |||
| 3-pole, 3 bimetal, without illumination | Black | white printed | 4435.0233 | ... | |||
| 3-pole, 3 bimetal, without illumination | White | embossed | 4435.0050 | ... | |||
| 3-pole, 3 bimetal, without illumination | Black | white printed | 4435.0235 | ... | |||
| 3-pole, 3 bimetal, without illumination | White | embossed | 4435.0017 | ... | |||
| 3-pole, 3 bimetal, illuminated 415 V | Red transparent | white printed | 4435.0414 | ... |
| Packaging Unit | 10 Pcs |
