Series: TA35 Rocker 1Pole

Circuit Breaker for Equipment thermal, Rocker actuation, 1 pole

18 Variants

Approvals and Compliances

CAD

Description

Thermal circuit breaker
1-pole
Snap-in version
Positively trip-free release
Method of operation acc. to IEC: S-type
Different rocker colours
Wide current range

Unique Selling Proposition

Unique UL rating of 277 VAC
Finely graded rated currents
High configurability (rocker colours, lettering, illumination)
IP65 with optional cover

Applications

Power tools
Medical and laboratory equipment
Industrial appliances
Equipment for construction
Cleaning equipment
Commercial and household kitchen appliances
Industrial Power
Industrial lighting arrays

Other versions on request

White front cover

Detailed request for product

Details TA35 Rocker 1Pole

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Rated Voltage AC

IEC: 240 VAC

UL/CSA : 277 VAC

Rated Voltage DC

32 VDC

Rated current range AC

0.05 - 20 A

Conditional short circuit capacity Inc

IEC 60934: 0.05...20 A: 2 kA, SC (C1) @ 240 VAC

Degree of Protection

front side IP40 acc. to IEC 60529

Dielectric Strength

50 Hz: > 2.5 kV
Impulse 1.2/50 μs: > 4 kV

Insulation Resistance

500 VDC > 100 MΩ

Lifetime

mechanical: 50'000 switching cycles

AC: 1 x Ir, cos φ 0.6:
30'000 switching cycles

DC: 1 x Ir, L/R = 2 - 3 ms:
50'000 switching cycles

Overload

IEC: min. 40 trips
@ 6 x Ir, cos φ 0.6

UL / CSA: min. 50 trips
@ 1.5 x Ir, cos φ 0.75

Allowable Operation Temp.

-30 °C to 60 °C

Storage Temperature

-40 °C to 60 °C

Vibration Resistance

± 0.75 mm @ 10 - 60 Hz
acc. to IEC 60068-2-6, test Tc
10 G @ 60 - 500 Hz
acc. to IEC 60068-2-6, test Tc

Shock Resistance

30 G / 18 ms
acc. to IEC 60068-2-27, test Ea

Tripping Type

Thermal

Actuation Type

Rocker

Weight

16.5 - 18.5 g

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: TA35

Certificates	Certification Body	Description
VDE Approvals	VDE	VDE Certificate Number: 40019754
UL Approvals	UL	UR File Number: E71572
CCC Approvals	CCC	CCC Certificate Number: 2024010307676639

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60934	Circuit-breakers for equipment (CBE)
Designed according to	UL 1077	Standard for Supplementary Protectors for Use in Electrical Equipment
Designed according to	CSA C22.2 No. 235	Supplementary Protectors
Designed according to	GB 17701	Circuit-breaker for equipment

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

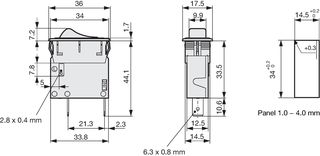

Dimension [mm]

Diagrams

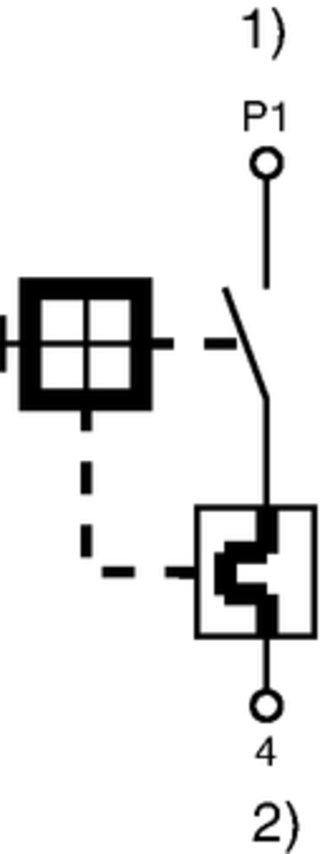

	1-pole, 1 bimetal

	1) Line, 2) Load Codepos AAA = CFT, CGT

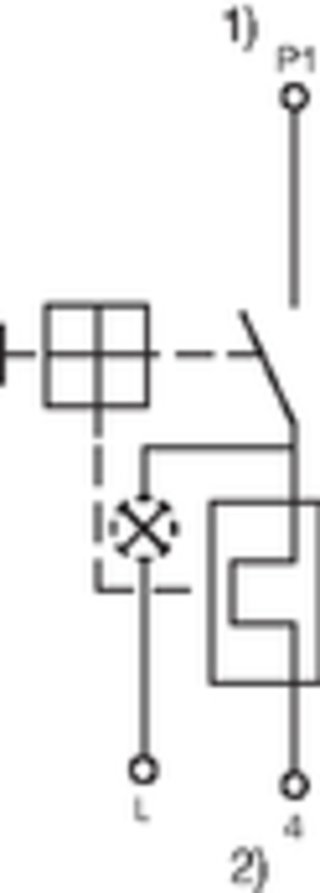

	1-pole, 1 bimetal, illuminated

	1) Line, 2) Load Codepos AAA = C2F, C4F, C7F, C8F, C9F

The keys / codepos are listed in the key table of the basic function for selection.

Approval		Rated current	Rated Voltage AC	Rated Voltage DC
	UL 1077	0.05...20 A	277 V	32 V
	CSA C22.2 235	0.05...20 A	277 V	32 V
	IEC 60934	0.05...20 A	240 V	32 V
	GB 17701	0.05...20 A	240 V	32 V

Typical internal resistance per pole

Rated Current [A]	Internal Resistance [Ω]
0.05	200.000
0.1	70.000
0.5	2.750
1.0	0.720
1.5	0.340
2.0	0.187
2.5	0.115
2.8	0.089
3.0	0.059
4.0	0.059
5.0	0.044
6.0	0.028
7.0	0.0142
8.0	0.0142
10.0	0.0109
12.0	0.0086
13.0 *	0.0072
14.0 *	0.0072
15.0 *	0.0056
16.0 *	0.0056
18.0 *	0.0052
20.0 *	0.0052
* 3-Pole max. 12 A

Time-Current-Curves

	Tripping Characteristics thermal magnetic fast acting
Time in Seconds
	Multiple of Rated Current In Ambient temperature +23°

	Tripping Characteristics thermal magnetic time lag
Time in Seconds
	Multiple of Rated Current In Ambient temperature +23°

Effect of ambient temperature

Ambient Temperature [°C]	Correction factor
-30	0.77
-20	0.81
0	0.90
+23	1.00
+40	1.03
+50	1.04
+60	1.06

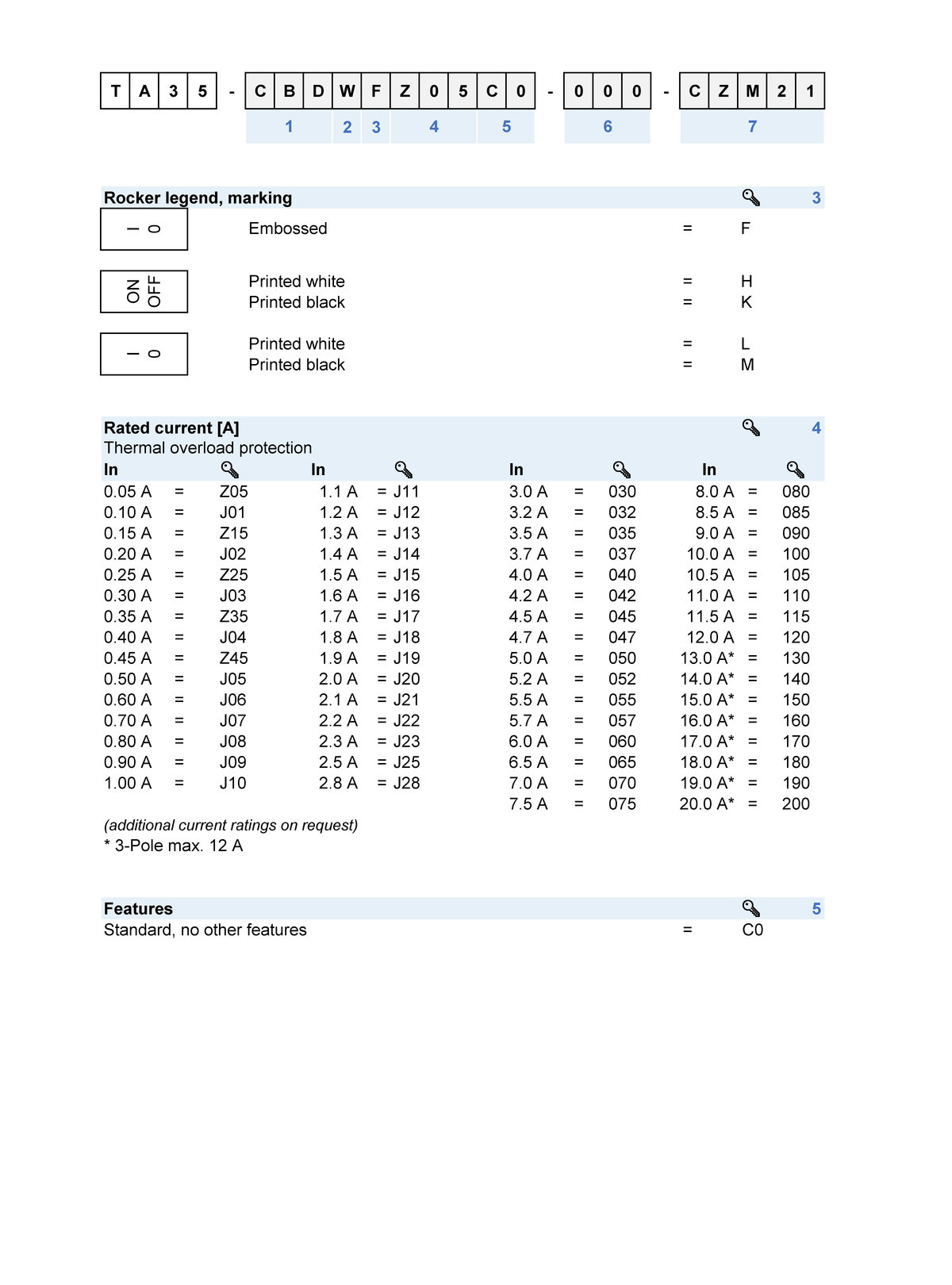

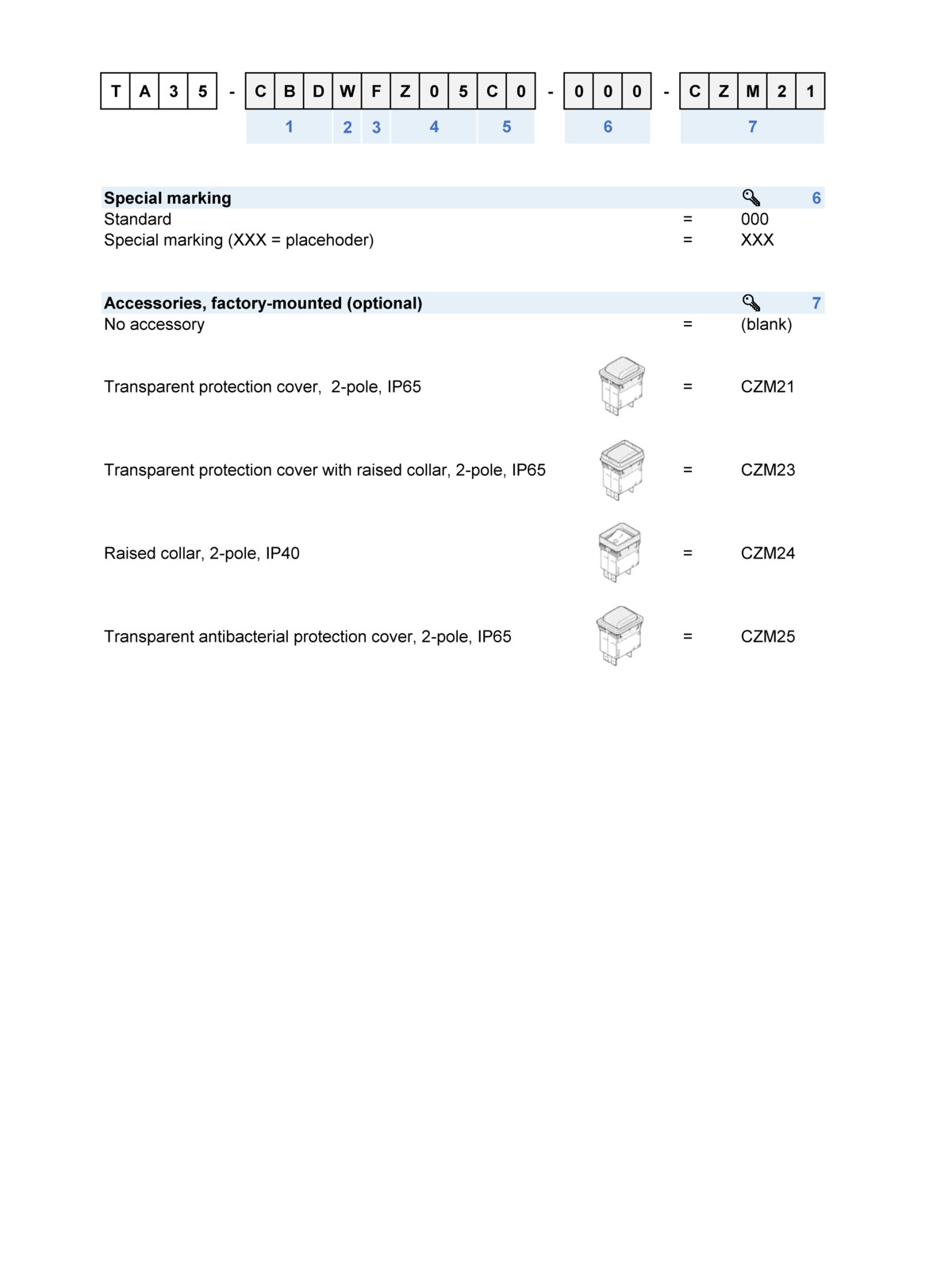

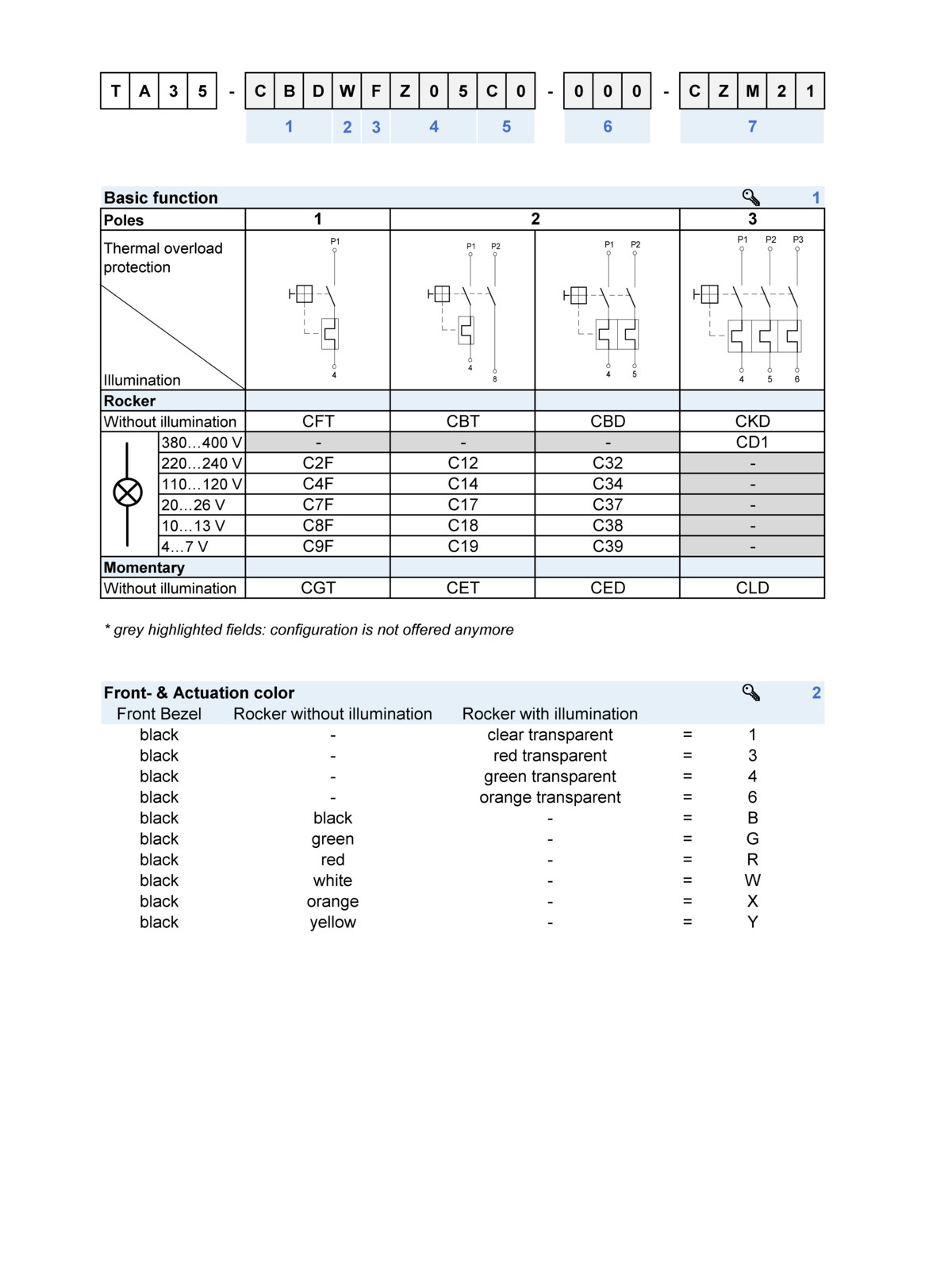

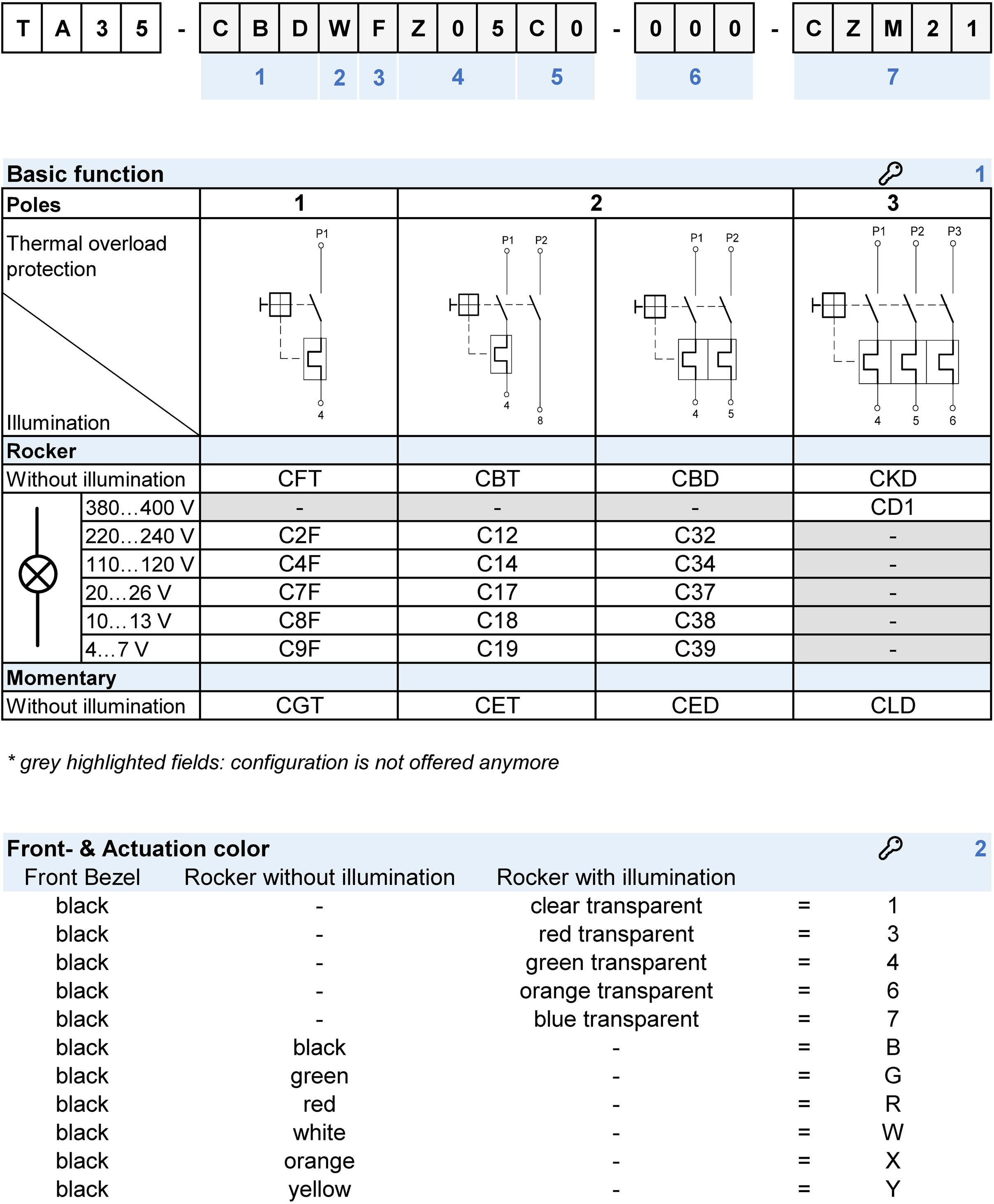

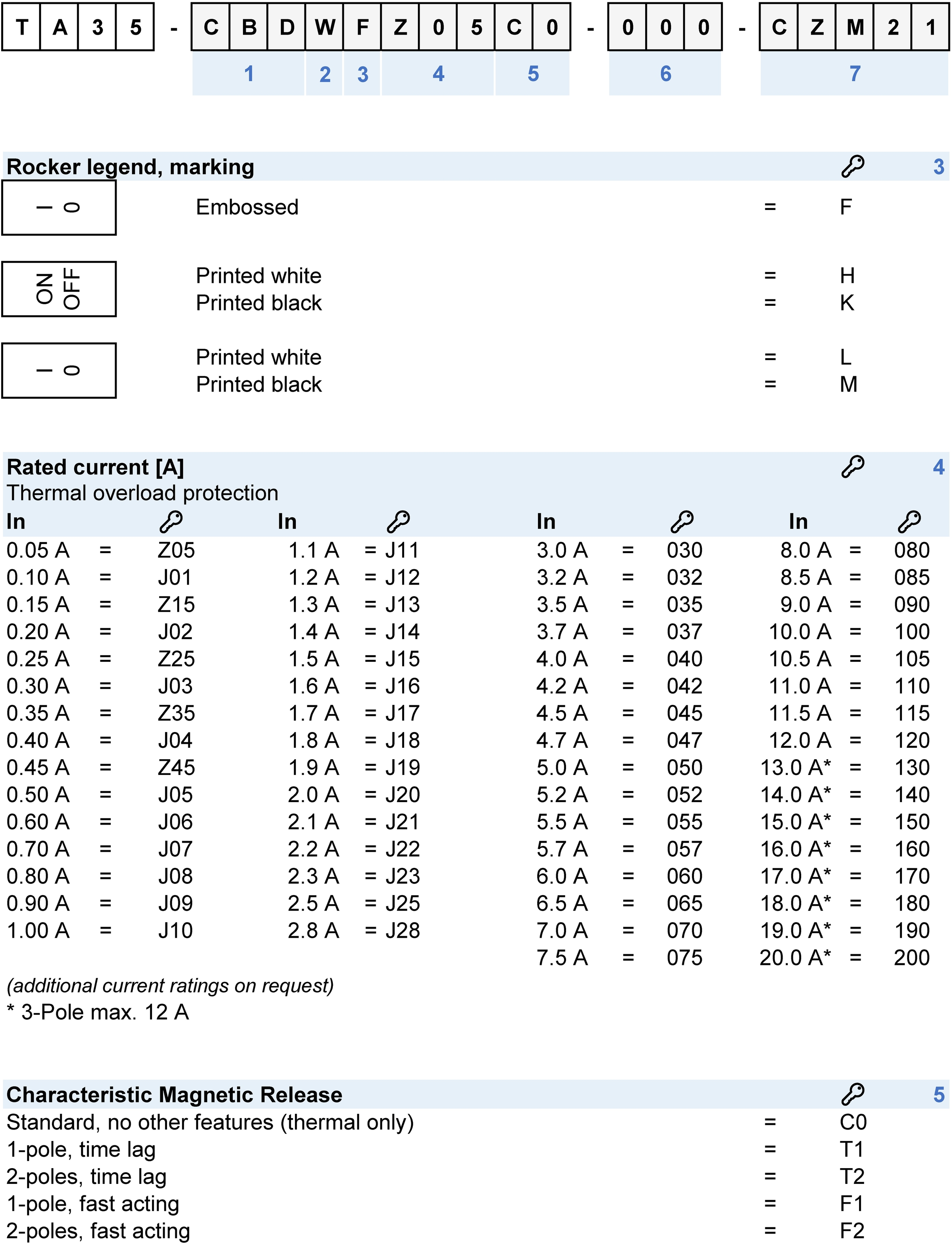

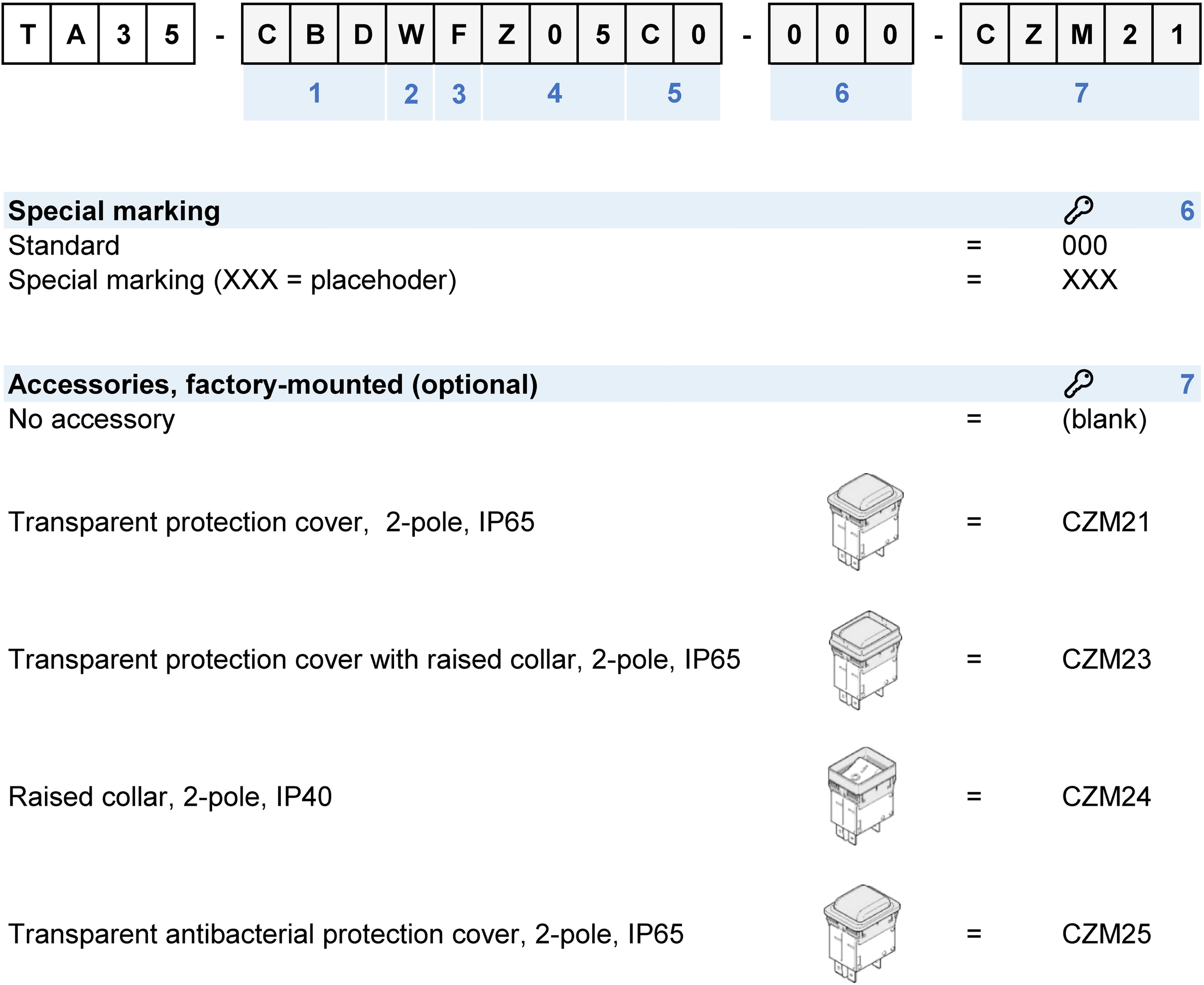

Order number key TA35 Rocker 1Pole

Short Table of Variants TA35 Rocker 1Pole Open complete table TA35 Rocker 1Pole

Basic function	Rocker colour	Legend	Order Number	...


1-pole, 1 bimetal, without illumination	White	black printed	4435.0029	...
1-pole, 1 bimetal, without illumination	White	embossed	4435.0019	...
1-pole, 1 bimetal, without illumination	White	black printed	4435.0082	...
1-pole, 1 bimetal, illuminated 120 V	Red transparent	white printed	4435.0431	...
1-pole, 1 bimetal, without illumination	Red	black printed	4435.0481	...
1-pole, 1 bimetal, without illumination	Black	embossed	4435.0028	...
1-pole, 1 bimetal, without illumination	Black	embossed	4435.0173	...
1-pole, 1 bimetal, without illumination	Black	white printed	4435.0204	...
1-pole, 1 bimetal, without illumination	Black	white printed	4435.0205	...
1-pole, 1 bimetal, without illumination	Red	embossed	4435.0056	...
1-pole, 1 bimetal, without illumination	Black	embossed	4435.0174	...
1-pole, 1 bimetal, momentary switch, without illumination	Black	embossed	4435.0471	...
1-pole, 1 bimetal, without illumination	White	embossed	4435.0049	...
1-pole, 1 bimetal, without illumination	White	embossed	4435.0037	...
1-pole, 1 bimetal, without illumination	Black	embossed	4435.0137	...
1-pole, 1 bimetal, without illumination	Black	white printed	4435.0209	...
1-pole, 1 bimetal, without illumination	Black	embossed	4435.0300	...
1-pole, 1 bimetal, without illumination	Black	white printed	4435.0256	...

Packaging Unit

20 Pcs

Table of Variants TA35 Rocker 1Pole

Basic function	Rocker colour	Legend	Rated current Rated current Normally, the maximum rated current is given in accordance with the admission test of the respective inspection. Accordingly, the international test requirements apply primarily according to the IEC standard. Alternatively, the rated current details are briefly UL also specified by the test requirements of the American testing by Underwriters Laboratories. In the meantime it has been shown that the nominal current range of a product is of interest, so we will show newly the minimum value. This corresponds, if present, the smallest approved rating of the product. Otherwise, a blank value or also the value 0 is used. It was also necessary to distinguish between the rated currents for alternating current (AC) and direct current (DC), since different products may be used in both applications.	Accessories	Config. Code	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form
			[A]

1-pole, 1 bimetal, without illumination	White	black printed	2.0 A	Without cover	TA35-CFTWKJ20C0-000	4435.0029	20
1-pole, 1 bimetal, without illumination	White	embossed	3.0 A	Without cover	TA35-CFTWF030C0-000	4435.0019	20
1-pole, 1 bimetal, without illumination	White	black printed	3.0 A	Without cover	TA35-CFTWM030C0-000	4435.0082	20
1-pole, 1 bimetal, illuminated 120 V	Red transparent	white printed	3.0 A	Without cover	TA35-C4F3H030C0-000	4435.0431	20
1-pole, 1 bimetal, without illumination	Red	black printed	3.0 A	Without cover	TA35-CFTRM030C0-000	4435.0481	20
1-pole, 1 bimetal, without illumination	Black	embossed	4.0 A	Without cover	TA35-CFTBF040C0-000	4435.0028	20
1-pole, 1 bimetal, without illumination	Black	embossed	5.0 A	Without cover	TA35-CFTBF050C0-000	4435.0173	20
1-pole, 1 bimetal, without illumination	Black	white printed	5.0 A	Without cover	TA35-CFTBH050C0-000	4435.0204	20
1-pole, 1 bimetal, without illumination	Black	white printed	6.0 A	Without cover	TA35-CFTBH060C0-000	4435.0205	20
1-pole, 1 bimetal, without illumination	Red	embossed	10.0 A	Without cover	TA35-CFTRF100C0-000	4435.0056	20
1-pole, 1 bimetal, without illumination	Black	embossed	10.0 A	Without cover	TA35-CFTBF100C0-000	4435.0174	20
1-pole, 1 bimetal, momentary switch, without illumination	Black	embossed	10.0 A	Without cover	TA35-CGTBF100C0-000	4435.0471	20
1-pole, 1 bimetal, without illumination	White	embossed	13.0 A	Without cover	TA35-CFTWF130C0-000	4435.0049	20
1-pole, 1 bimetal, without illumination	White	embossed	15.0 A	Without cover	TA35-CFTWF150C0-000	4435.0037	20
1-pole, 1 bimetal, without illumination	Black	embossed	15.0 A	Without cover	TA35-CFTBF150C0-000	4435.0137	20
1-pole, 1 bimetal, without illumination	Black	white printed	16.0 A	Without cover	TA35-CFTBH160C0-000	4435.0209	20
1-pole, 1 bimetal, without illumination	Black	embossed	16.0 A	Without cover	TA35-CFTBF160C0-000	4435.0300	20
1-pole, 1 bimetal, without illumination	Black	white printed	20.0 A	Without cover	TA35-CFTBL200C0-000	4435.0256	20
