Rated Current Ie
63 A @ 500 VAC
Rated voltage Ue
500 VAC
Rated isolation voltage Ui
1000 VAC
Rated Power Operating Frequency fe
50 Hz
Rated diversity factor RDF
0.8
Element with Double Straps
6 - 50 mm²
Neutral Disconnector with Double Straps
6 - 50 mm²
Rated Impulse Withstand Voltage Uimp
6 kV
Conditioned Rated Short Cicuit Current
50 kA @ 500 VAC
Rated short-time withstand current with fuse links
20 kA␠ @ 500 VAC
Allowed Ambient Temperature
-25 °C to +40 °C acc. to IEC 61439
Protection by closed housing
IP54 acc. to IEC 60529
Pollution Degree
3
Earth Connection Bride
6 - 50 mm²
Double erminal
6 - 50 mm²
Earth Connection
6 - 50 mm²
Earth Connection (outside)
M8
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: SKD 63A
| Approval Logo | Certificates | Certification Body | Description |
|---|---|---|---|
|
Eurofins | Certificate Number: IK-4271 |
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |

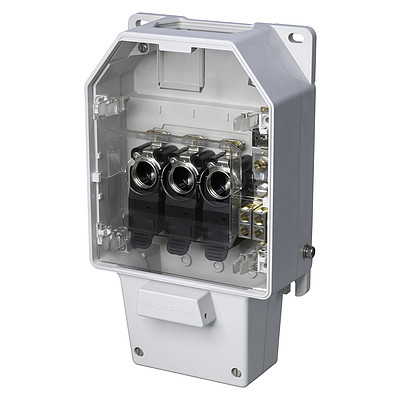

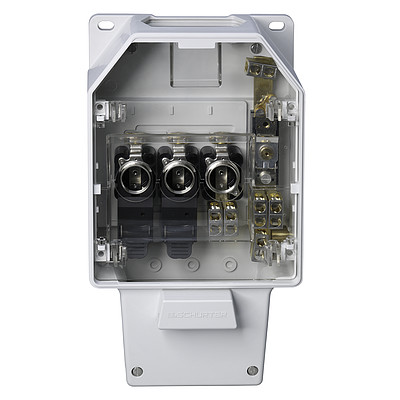

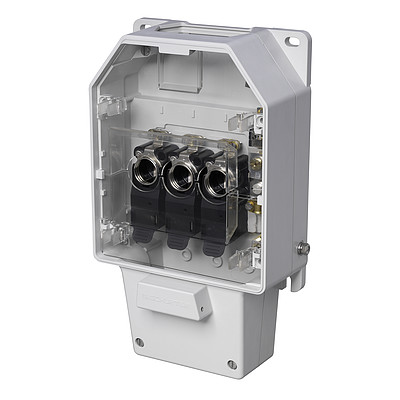

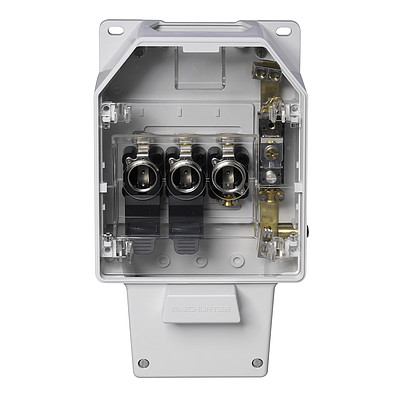

| 1. two-part cover plates, snapped, transparent and sealable 2. NH fuse switch disconnectors 3. hinged window 4. internal covers 5. different connection variants- Prismabride- Cable lug M8- Double terminals 6. Square lock 7. marking strips 8. neutral conductor isolator for TN-S/TN-C 9. external ground connection permanently mounted 10. Earth bracket (optional) 11. expansion module with DIN rail (optional) |
| TN-S (delivered condition) |
|
| L = Pole conductor PE = Protective conductorPEN = PEN conductor N = Neutral conductor NE = Neutral earth conductor TS = Separating screw KA = Cable armor |
All SKD house connection boxes from SCHURTER AG are equipped with the versatile neutral conductor isolator. The neutral conductor isolator is suitable for use in networks with earthing according to the TN-S and TN-C diagrams. The connection type can be changed by simply repositioning the separating screw.
| Designation | Equipped | Terminal | E-No. | A=Most Popular A=Most Popular
|
Free Sample Free Sample
|
Distributor Stock Check Distributor Stock Check
|
... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKD 63A DW DIII+0+E | - | Double Terminal | 827235038 | A | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKD 63A DIII+0+E | - | Straps | 827235028 | A | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKD 63A DIII+0+E | Cable bride 1 x 38 mm, Rubber, Cover 1 x M40 | Straps | 827235068 | A | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKD 63A DIII+0+E | Cable bride 1 x 38 mm, Rubber, Cover 1 x M40 + 1 x M16 | Straps | 827235058 | A | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKD 63A DIII+0+E | Cable bride 1 x 38 mm, Rubber, Cover 1 x M50 + 1 x M16 | Straps | 827235048 | A | ... | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
█ Most Popular. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging unit | 1 Pcs |
