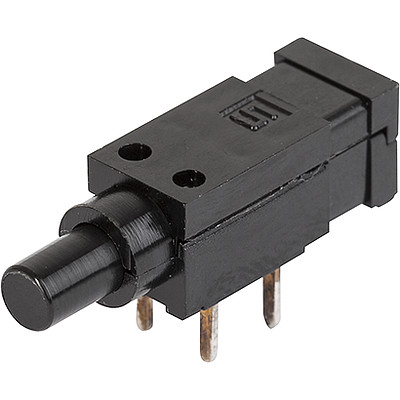

SDK  Printmount Switch, Medium Stroke, 7.5 mm

Series: SDK

Printmount Switch, Medium Stroke, 7.5 mm

7 Variants


Description

  • Available with various actuator colors
  • High switching capacity
  • Optional retaining bracket

Unique Selling Proposition

  • Different contacting materials for different applications
  • High life time thanks to high quality materials
  • Suitable for PCB mounting

Electrical Data

Switching Voltage

max. 48 VAC/  48 VDC

Lifetime

> 100'000 actuations at Rated Switching Capacity

Insulation Resistance

> 1000 MΩ

Contact Material Silver

Switching current

AC: 2 A / DC: 1.2 A

Contact Resistance

< 10 mΩ

Contact Material Gold

Switching current

80 mA

Contact Resistance

< 20 mΩ

Mechanical Data

Actuating Force

3 - 5 N

Actuating Travel

2.4 ± 0.3 mm

End Actuating Travel

3.3 ± 0.4 mm

End Stop Strength

> 100 N

Lifetime

> 200'000 actuations

Climatical Data

Operating Temperature

-40 °C - 85 °C

Storage Temperature

-40 °C - 85 °C

IP-Protection

IP40

Other Data

Contact Material

Ag / Au

Soldering Data

Solderability

235 °C / 2 sec (IEC 60068-2-20 Test Ta Method 1A)

Resistance to Soldering Heat

260 °C / 5 sec (IEC 60068-2-20 Test Tb Method 1)

Material

Socket

Thermoplastic (PC)

Button

Thermoplastic (PC)

Contact

gold (2µm Au on hard silver)

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

030090100000003005
LOADING...

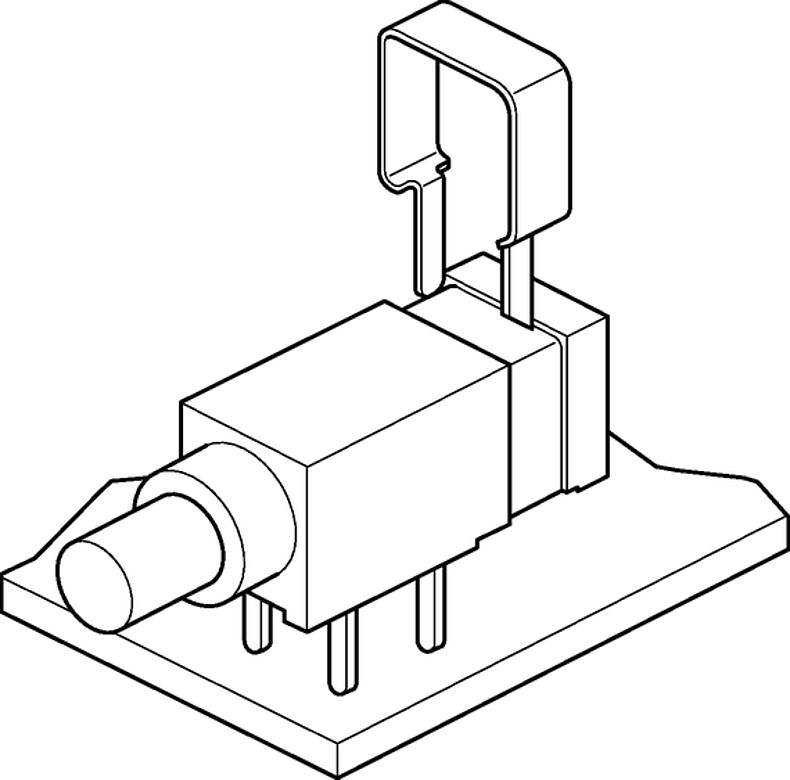

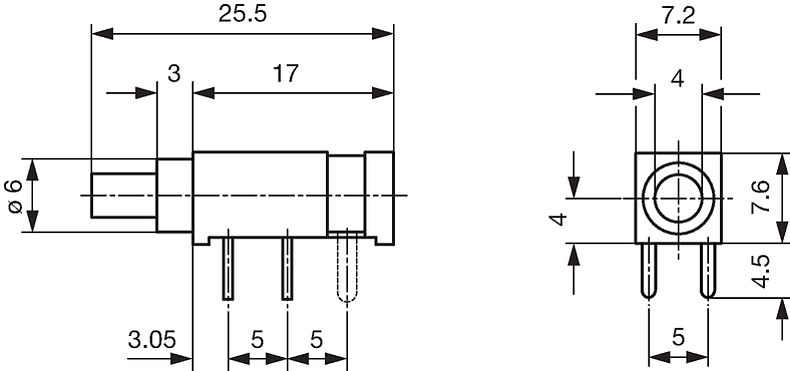

Dimension [mm]

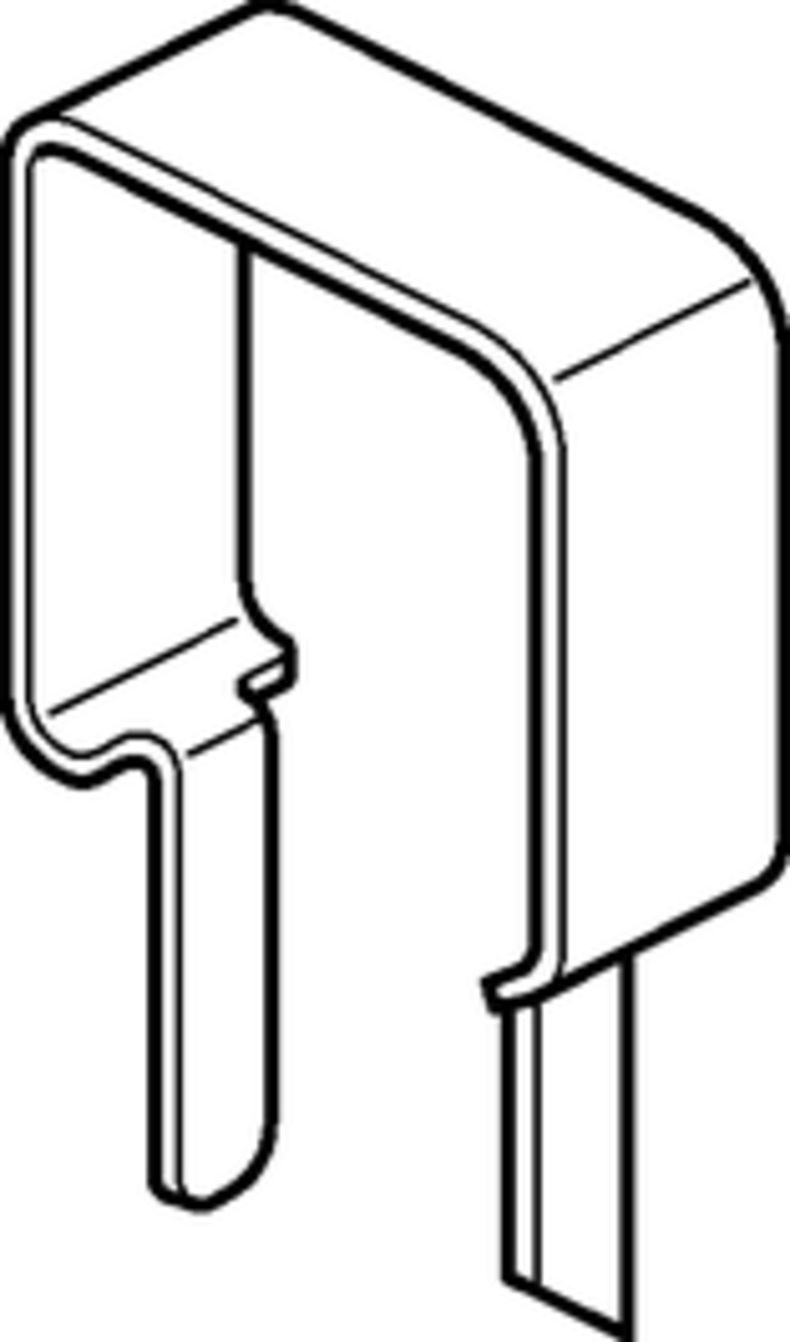

The optional retaining bracket has to be ordered separately

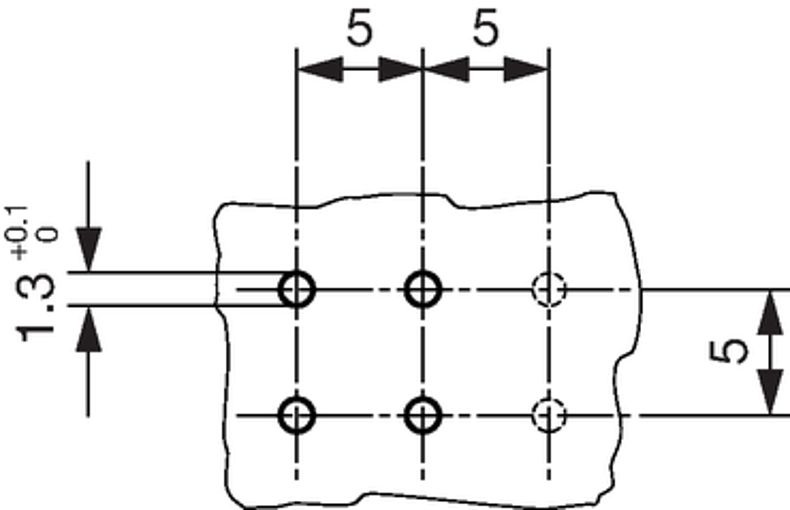

Drilling diagram

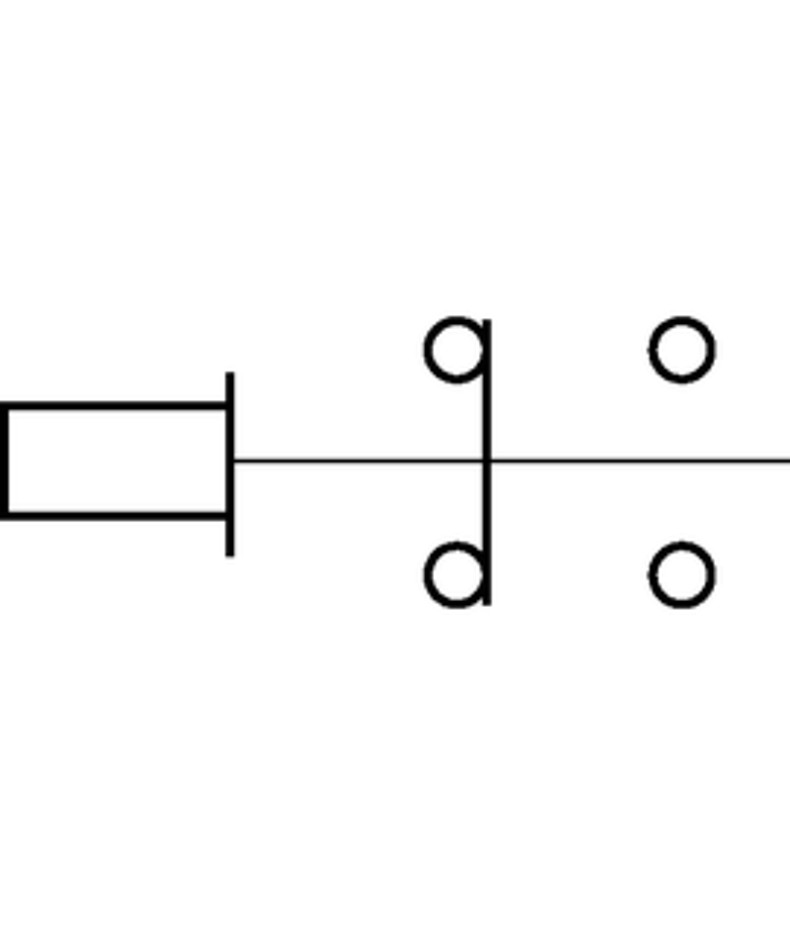

Diagrams

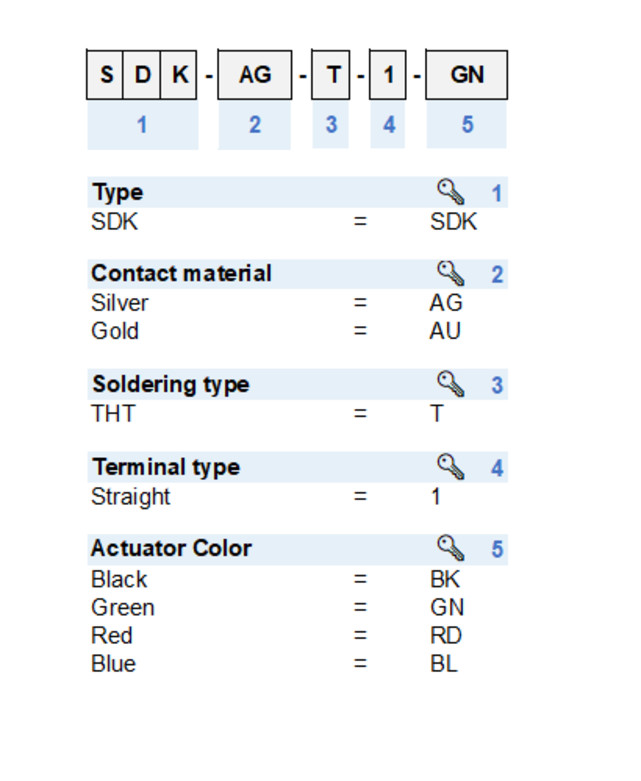

Short Table of Variants SDK Open complete table SDK

Designation Kontakte Color Button Bestellnummer
Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

SDK SWITCH O+S SW Ag black 0041.0401 - ...
SDK SWITCH O+S RT Ag red 0041.0402 - ...
SDK SWITCH O+S GN Ag green 0041.0403 - ...
SDK SWITCH O+S SW Au black 0041.0411 - ...
SDK SWITCH O+S RT Au red 0041.0412 - ...
SDK SWITCH O+S GN Au green 0041.0413 - ...
RETAINING BRACKET SDK - - 0701.0049 - ...

Packaging unit 100 pcs
