Description

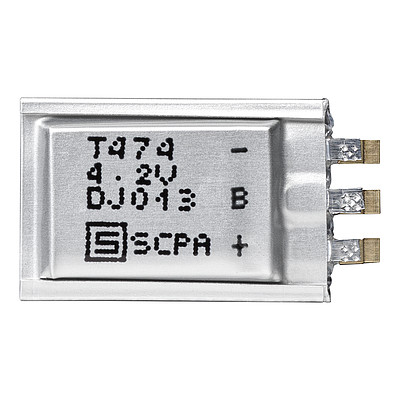

Prismatic ultra-thin supercapacitors
Single or double cell version
Ultra-compact design
High pulse power

Unique Selling Proposition

World thinnest supercapacitors
High power density
Low ESR with high current handling
Very low self discharge

Applications

Sensors
Small mobile devices
Small power supplies
Mobile energy harvesting
Uninterruptible power supply

Detailed request for product

Details SCPA

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Rated Voltage

4.2 / 4.5 / 5.5 V

Capacity

35 - 1000 mF

Allowable Operation Temperature

-40 °C to 85 °C (4.2 - 4.5 V)

-40 to 70 °C (5.5 V)

RMS current

1 - 5.5 A

Peak Current

5 - 30 A

Mounting

PCB,SMT

Soldering Methods

Manual

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

Dimension [mm]

	Case TS22

	Case TS35

	Case HS04

	Case TS32

	Case FS37

	Case TS20



	Soldering pads to Case TS20, TS22, TS32, TS35, FS37



	Soldering pads to Case HS04

Short Table of Variants SCPA Open complete table SCPA

Cell Type	Rated Voltage [V]	Capacity [mF]	Order Number	Free Sample Free Sample Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.	...

Dual Cell	4.2	220	3-153-407	-	...
Dual Cell	4.2	470	3-153-408	-	...
Dual Cell	4.5	35	3-153-409	-	...
Dual Cell	5.5	470	3-153-410	-	...
Dual Cell	5.5	1000	3-153-411	-	...
Dual Cell	5.5	200	3-153-412	-	...

Packaging Unit

100 Pcs

Table of Variants SCPA

Cell Type	Rated Voltage [V]	Capacity [mF]	ESR [mΩ]	Leakage Current typ. [µA]	Leakage Current max. [µA]	RMS current [A]	Peak Current [A]	Housing	Order Number	Free Sample Free Sample Please ask for free sample in order to check if the products meets your requirement for your application. Send your delivery adress and your specific requirements.	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form

Dual Cell	4.2	220	300	6	15	3.2	10	TS22	3-153-407	-	100
Dual Cell	4.2	470	130	5	10	4.8	10	TS35	3-153-408	-	100
Dual Cell	4.5	35	300	-	2	1	5	HS04	3-153-409	-	100
Dual Cell	5.5	470	45	-	3	4.5	30	TS32	3-153-410	-	100
Dual Cell	5.5	1000	40	-	6	5.5	30	FS37	3-153-411	-	100
Dual Cell	5.5	200	105	-	2	-	15	TS20	3-153-412	-	100
