Series: PMS

Push button for PCB mounting

36 Variants


Description

  • Switches are possible with different heights
  • High-quality gold contacts
  • Solder terminals

Unique Selling Proposition

  • Reliable tactile feedback on input
  • Simple assembly
  • Long life time

Electrical Data

Switching Voltage

30 VAC/  42 VDC

Switching current

50 mA

Rated Switching Capacity

0.12 W

Lifetime

> 1 million actuations at Rated Switching Capacity

Contact Resistance

< 50 mΩ

< 150 mΩ after lifetime

Insulation Resistance

> 100 MΩ

Duration of Bounce

typ. 0.15 ms

Mechanical Data

Actuating Force

IP40 : 1.8 ± 0.4 N

IP67 : 2.2 ± 0.4 N

Actuating Travel

0.35 ± 0.1 mm

End Stop Strength

> 100 N

Lifetime

> 1 million actuations

Climatical Data

Operating Temperature

-40 °C to 85 °C

Storage Temperature

-40 °C to 85 °C

IP-Protection

IP40 / IP67

Soldering Data

Soldering Methods

Wave

Solderability

245 °C / 5 sec (IEC 60068-2-58 Test Td)

Resistance to Soldering Heat

260 °C / 10 sec (IEC 60068-2-58 Test Td)

Material

Sealing membrane IP67

VMQ

Contact Material Gold

CuZn37 1.5 μm Ni 0.5 μm Au

Terminals

CuZn37 SnNi

Socket

Thermoplastic (PA 4.6)

Actuator

PA4

Cover of Actuator

X 12 CrNi 17 7

Elongated Button

Thermoplastic (PC)

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

03009010000000300a
LOADING...

Dimension [mm]

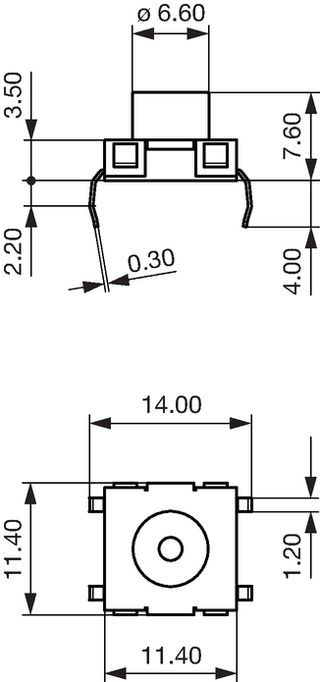

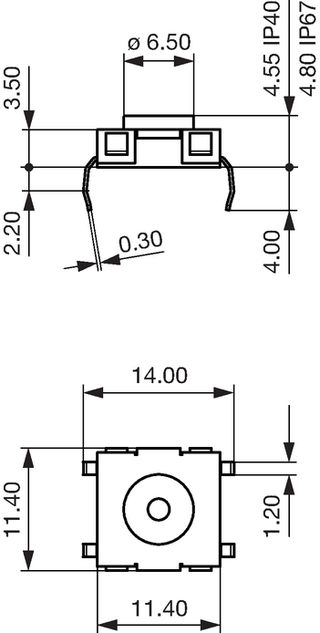

PMS PCB Base module

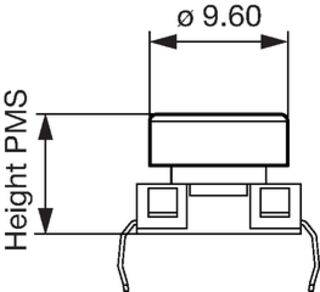

PMS PCB Variable height

PCB lead

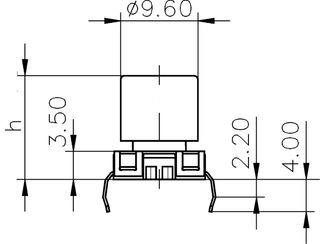

PMS PCB with elogated button

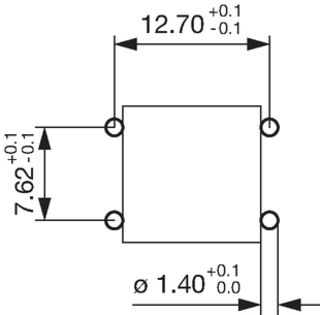

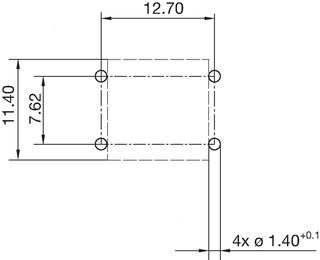

Drilling diagrams


Diagrams

Circuit Diagram SMS/PMS


Short Table of Variants PMS Open complete table PMS

IP Protection Class Front Side Terminal Type Order Number
Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

IP40 - Short actuator 1241.1602 - ...
IP67 - Short actuator 1241.1608 - ...
IP40 - Long actuator 1241.1614 - ...
IP67 - Long actuator 1241.1620 - ...
IP40 - Height variable 1241.1624.1 - ...
IP40 - Height variable 1241.1624.11 - ...
IP40 - Height variable 1241.1624.2 - ...
IP40 - Height variable 1241.1624.21 - ...
IP40 - Height variable 1241.1624.3 - ...
IP40 - Height variable 1241.1624.31 - ...
IP40 - Height variable 1241.1624.4 - ...
IP40 - Height variable 1241.1624.41 - ...
IP40 - Height variable 1241.1624.5 - ...
IP40 - Height variable 1241.1624.51 - ...
IP40 - Height variable 1241.1624.6 - ...
IP40 - Height variable 1241.1624.61 - ...
IP40 - Height variable 1241.1624.7 - ...
IP40 - Height variable 1241.1624.71 - ...
IP40 - Height variable 1241.1624.8 - ...
IP40 - Height variable 1241.1624.81 - ...
IP67 - Height variable 1241.1625.1 - ...
IP67 - Height variable 1241.1625.11 - ...
IP67 - Height variable 1241.1625.2 - ...
IP67 - Height variable 1241.1625.21 - ...
IP67 - Height variable 1241.1625.3 - ...
IP67 - Height variable 1241.1625.31 - ...
IP67 - Height variable 1241.1625.4 - ...
IP67 - Height variable 1241.1625.41 - ...
IP67 - Height variable 1241.1625.5 - ...
IP67 - Height variable 1241.1625.51 - ...
IP67 - Height variable 1241.1625.6 - ...
IP67 - Height variable 1241.1625.61 - ...
IP67 - Height variable 1241.1625.7 - ...
IP67 - Height variable 1241.1625.71 - ...
IP67 - Height variable 1241.1625.8 - ...
IP67 - Height variable 1241.1625.81 - ...

Starting with 14:50 mm the heights are realized with an additional (second) elongated button in black color

Packaging unit loose in boxes (100 pcs.)
