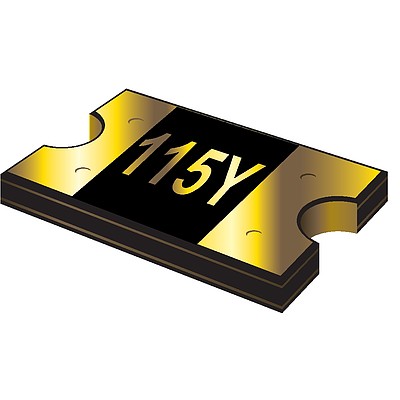

PFMF PFMF - SMD fuse PTC 4.6 x 3.2 mm en IM0005631

Series: PFMF

Surface Mount Fuse, PTC, 1812 footprint, 4.6 x 3.2 mm, 60 VDC

15 Variants

Approvals and Compliances

CAD

Description

100% compatible with the PFMD type Directly solderable on printed circuit boards

Applications

Hard disk drives
PC motherboards
PC peripherals
PCMCIA cards
USB port protection

Detailed request for product

Details PFMF

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

V max

6.0 - 60.0 VDC

Imax

10 - 100 A

I hold

0.1 - 2.6 A

Attachment

PCB,SMT

Allowable Operation Temperature

-40 °C to 85 °C

Material: Terminals

Electroless Nickel under Immerion Gold

Weight

0.025 g

Storage Conditions

0 °C to 40 °C, max. 70% r.h.

Product Marking

I hold, Data Code

Soldering Methods

Reflow
Soldering Profile

Solderability

245 °C / 3 sec

Resistance to Soldering Heat

260 °C / 10 sec

Moisture Sensitivity Level

MSL 1, J-STD-020

Passing Aging

+85 °C, 1000 Hours -> +/- 5% Typical Resistance Change

Humidity Aging

+85 °C, 85% r.h., 1000 Hours -> +/- 5% Typical Resistance Change

Thermal Shock

+85 °C to -40 °C, 20 Times -> +/- 10% Typical Resistance Change

Vibration

MIL-STD-883C, Method 2007.1, Test Condition A

Resistance to Solvents

MIL-STD-202, Method 215

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: PFMF

Approval Logo	Certificates	Certification Body	Description
	TUEV Approvals	TUEV	Technischer Überwachungsverein
	UL Approvals	UL	UR File Number: E172175

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	62319-1-1	Polymeric thermistors. Part 1-1: Current limiting application
Designed according to	IEC 62319-1-1	Miniature fuses. Part 2. Cartridge fuse links
Designed according to	UL 1434	Thermistor-type devices
Designed according to	CSA 22.2 No. 0 TIL No. CA-3A	General requirements - Canadian electrical code, part II

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Designed for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

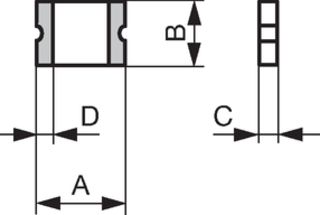

Dimension [mm]

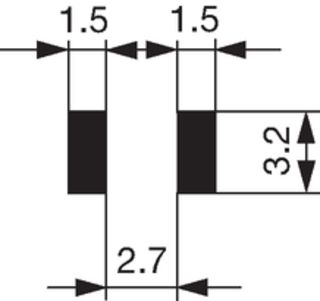

	Soldering pads

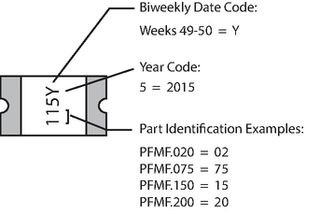

	Part marking

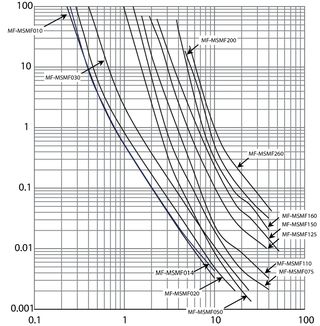

Time-Current-Curves


Time to Trip in Seconds
	Fault Current in Amperes

Dimensions PFMF Open complete table PFMF

A min [mm]	A max [mm]	B min [mm]	Order Number	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	...

4.37	4.73	3.07	PFMF.010.2	A	...
4.37	4.73	3.07	PFMF.014.2	A	...
4.37	4.73	3.07	PFMF.020.2	A	...
4.37	4.73	3.07	PFMF.030.2	A	...
4.37	4.73	3.07	PFMF.050.2	A	...
4.37	4.73	3.07	PFMF.075.2	A	...
4.37	4.73	3.07	PFMF.075.24.2		...
4.37	4.73	3.07	PFMF.110.2		...
4.37	4.73	3.07	PFMF.110.16.2		...
4.37	4.73	3.07	PFMF.125.2		...
4.37	4.73	3.07	PFMF.150.2		...
4.37	4.73	3.07	PFMF.160.2		...
4.37	4.73	3.07	PFMF.200.2		...
4.37	4.83	3.07	PFMF.250.16.2		...
4.37	4.73	3.07	PFMF.260.2		...
█ Most Popular.

Packaging Unit
acc. IEC 60286-3 Type 2a

PFMF.010.2 - PFMF.030.2	1500 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]

PFMF.050.2 + PFMF.260.2	2000 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]

Dimensions PFMF

A min [mm]	A max [mm]	B min [mm]	B max [mm]	C min [mm]	C max [mm]	D min [mm]	Order Number	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	MOQ MOQ Minimum order quantity. It is necessary to meet the MOQ when placing orders. Please contact us for assistance: Contact-Form	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact-Form

4.37	4.73	3.07	3.41	0.7	1.1	0.3	PFMF.010.2	A	1500	1500
4.37	4.73	3.07	3.41	0.7	1.1	0.3	PFMF.014.2	A	1500	1500
4.37	4.73	3.07	3.41	0.7	1.1	0.3	PFMF.020.2	A	1500	1500
4.37	4.73	3.07	3.41	0.7	1.1	0.3	PFMF.030.2	A	1500	1500
4.37	4.73	3.07	3.41	0.55	0.85	0.3	PFMF.050.2	A	2000	2000
4.37	4.73	3.07	3.41	0.55	0.85	0.3	PFMF.075.2	A	2000	2000
4.37	4.73	3.07	3.41	0.55	0.85	0.3	PFMF.075.24.2		2000	2000
4.37	4.73	3.07	3.41	0.45	0.85	0.3	PFMF.110.2		2000	2000
4.37	4.73	3.07	3.41	0.45	0.85	0.3	PFMF.110.16.2		2000	2000
4.37	4.73	3.07	3.41	0.55	0.85	0.3	PFMF.125.2		2000	2000
4.37	4.73	3.07	3.41	0.55	0.85	0.3	PFMF.150.2		2000	2000
4.37	4.73	3.07	3.41	0.55	0.85	0.3	PFMF.160.2		2000	2000
4.37	4.73	3.07	3.41	0.55	0.85	0.3	PFMF.200.2		2000	2000
4.37	4.83	3.07	3.41	0.7	1.6	0.3	PFMF.250.16.2		2000	2000
4.37	4.73	3.07	3.41	0.48	0.85	0.3	PFMF.260.2		2000	2000
█ Most Popular.

Packaging Unit
acc. IEC 60286-3 Type 2a

PFMF.010.2 - PFMF.030.2	1500 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]

PFMF.050.2 + PFMF.260.2	2000 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]

Thermal Derating Chart Ihold [A] PFMF Open complete table PFMF

Order Number	-40 °C	-20 °C	Order Number	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	...

PFMF.010.2	0.16	0.14	PFMF.010.2	A	...
PFMF.014.2	0.23	0.19	PFMF.014.2	A	...
PFMF.020.2	0.29	0.26	PFMF.020.2	A	...
PFMF.030.2	0.44	0.39	PFMF.030.2	A	...
PFMF.050.2	0.77	0.68	PFMF.050.2	A	...
PFMF.075.2	1.15	1.01	PFMF.075.2	A	...
PFMF.075.24.2	1.15	1.01	PFMF.075.24.2		...
PFMF.110.2	1.59	1.43	PFMF.110.2		...
PFMF.110.16.2	1.59	1.43	PFMF.110.16.2		...
PFMF.125.2	1.8	1.63	PFMF.125.2		...
PFMF.150.2	2.17	1.95	PFMF.150.2		...
PFMF.160.2	2.3	2.2	PFMF.160.2		...
PFMF.200.2	3.08	2.71	PFMF.200.2		...
PFMF.250.16.2	3.9	3.42	PFMF.250.16.2		...
PFMF.260.2	4	3.52	PFMF.260.2		...
█ Most Popular.

Packaging Unit
acc. IEC 60286-3 Type 2a

PFMF.010.2 - PFMF.030.2	1500 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]

PFMF.050.2 + PFMF.260.2	2000 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]

Thermal Derating Chart Ihold [A] PFMF

Order Number	-40 °C	-20 °C	0 °C	23 °C	40 °C	50 °C	60 °C	70 °C	85 °C	Order Number	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	MOQ MOQ Minimum order quantity. It is necessary to meet the MOQ when placing orders. Please contact us for assistance: Contact-Form	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact-Form

PFMF.010.2	0.16	0.14	0.12	0.1	0.08	0.07	0.06	0.05	0.03	PFMF.010.2	A	1500	1500
PFMF.014.2	0.23	0.19	0.17	0.14	0.12	0.1	0.09	0.08	0.06	PFMF.014.2	A	1500	1500
PFMF.020.2	0.29	0.26	0.23	0.2	0.17	0.15	0.14	0.12	0.1	PFMF.020.2	A	1500	1500
PFMF.030.2	0.44	0.39	0.35	0.3	0.26	0.23	0.21	0.18	0.15	PFMF.030.2	A	1500	1500
PFMF.050.2	0.77	0.68	0.59	0.5	0.44	0.4	0.37	0.33	0.29	PFMF.050.2	A	2000	2000
PFMF.075.2	1.15	1.01	0.88	0.75	0.65	0.6	0.55	0.49	0.43	PFMF.075.2	A	2000	2000
PFMF.075.24.2	1.15	1.01	0.88	0.75	0.65	0.6	0.55	0.49	0.43	PFMF.075.24.2		2000	2000
PFMF.110.2	1.59	1.43	1.26	1.1	0.95	0.87	0.8	0.71	0.6	PFMF.110.2		2000	2000
PFMF.110.16.2	1.59	1.43	1.26	1.1	0.95	0.87	0.8	0.71	0.6	PFMF.110.16.2		2000	2000
PFMF.125.2	1.8	1.63	1.43	1.25	1.08	0.99	0.91	0.81	0.68	PFMF.125.2		2000	2000
PFMF.150.2	2.17	1.95	1.72	1.5	1.3	1.18	1.09	0.97	0.82	PFMF.150.2		2000	2000
PFMF.160.2	2.3	2.2	1.9	1.6	1.45	1.3	1.15	1.03	0.91	PFMF.160.2		2000	2000
PFMF.200.2	3.08	2.71	2.35	2	1.8	1.6	1.5	1.4	1.25	PFMF.200.2		2000	2000
PFMF.250.16.2	3.9	3.42	2.96	2.5	2.24	1.98	1.85	1.29	0.94	PFMF.250.16.2		2000	2000
PFMF.260.2	4	3.52	3.06	2.6	2.34	2.08	1.95	1.39	1.04	PFMF.260.2		2000	2000
█ Most Popular.

Packaging Unit
acc. IEC 60286-3 Type 2a

PFMF.010.2 - PFMF.030.2	1500 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]

PFMF.050.2 + PFMF.260.2	2000 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]

Electrical Characteristics at 23 °C PFMF Open complete table PFMF

V max [VDC]	I max [A]	I hold [A]	Order Number	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	...

60.0	40	0.1	PFMF.010.2	A	...
60.0	40	0.14	PFMF.014.2	A	...
30.0	80	0.2	PFMF.020.2	A	...
30.0	10	0.3	PFMF.030.2	A	...
15.0	100	0.5	PFMF.050.2	A	...
13.2	100	0.75	PFMF.075.2	A	...
24.0	40	0.75	PFMF.075.24.2		...
6.0	100	1.1	PFMF.110.2		...
16.0	100	1.1	PFMF.110.16.2		...
6.0	100	1.25	PFMF.125.2		...
6.0	100	1.5	PFMF.150.2		...
8.0	100	1.6	PFMF.160.2		...
8.0	40	2	PFMF.200.2		...
16.0	100	2.5	PFMF.250.16.2		...
6.0	100	2.6	PFMF.260.2		...
█ Most Popular.

Packaging Unit
acc. IEC 60286-3 Type 2a

PFMF.010.2 - PFMF.030.2	1500 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]

PFMF.050.2 + PFMF.260.2	2000 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]

Electrical Characteristics at 23 °C PFMF

V max [VDC]	I max [A]	I hold [A]	I trip [A]	R initial min [Ω]	R 1hour max [Ω]	Max Time to trip [A]	Max Time to Trip [s]	Tripped Power Dissipation [W]	Order Number	A=Most Popular A=Most Popular Most popular products have the following customer benefits: - previously ordered by multiple customers - generally in stock for immediate delivery - early adoption or mature life cycle Contact us for availability on other product variants, lead-times vary: Contact-Form Availability for all products can be searched real-time. Enter part number and required quantity: Stock Check SCHURTER	MOQ MOQ Minimum order quantity. It is necessary to meet the MOQ when placing orders. Please contact us for assistance: Contact-Form	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact-Form

60.0	40	0.1	0.3	0.7	15	0.5	1.5	0.80	PFMF.010.2	A	1500	1500
60.0	40	0.14	0.34	0.4	6.5	1.5	0.15	0.80	PFMF.014.2	A	1500	1500
30.0	80	0.2	0.4	0.4	6	6	0.06	0.80	PFMF.020.2	A	1500	1500
30.0	10	0.3	0.6	0.3	3	8	0.1	0.80	PFMF.030.2	A	1500	1500
15.0	100	0.5	1	0.15	1	8	0.15	0.80	PFMF.050.2	A	2000	2000
13.2	100	0.75	1.5	0.11	0.45	8	0.2	0.80	PFMF.075.2	A	2000	2000
24.0	40	0.75	1.5	0.11	0.45	8	0.2	0.80	PFMF.075.24.2		2000	2000
6.0	100	1.1	2.2	0.04	0.21	8	0.3	0.80	PFMF.110.2		2000	2000
16.0	100	1.1	2.2	0.04	0.21	8	0.3	0.80	PFMF.110.16.2		2000	2000
6.0	100	1.25	2.5	0.035	0.14	8	0.4	0.80	PFMF.125.2		2000	2000
6.0	100	1.5	3	0.03	0.12	8	0.5	0.80	PFMF.150.2		2000	2000
8.0	100	1.6	2.8	0.035	0.099	8	2	0.80	PFMF.160.2		2000	2000
8.0	40	2	4	0.02	0.08	8	3	0.80	PFMF.200.2		2000	2000
16.0	100	2.5	5	0.015	0.1	8	5	1.20	PFMF.250.16.2		2000	2000
6.0	100	2.6	5.2	0.015	0.08	8	5	0.80	PFMF.260.2		2000	2000
█ Most Popular.

Packaging Unit
acc. IEC 60286-3 Type 2a

PFMF.010.2 - PFMF.030.2	1500 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]

PFMF.050.2 + PFMF.260.2	2000 pcs. in tape [W: 12mm and P1: 8mm] on reel [A: 18cm]
