Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.
2 Variants

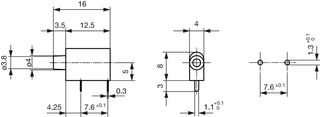

Description
- PCB,:
- Test Jack, Diameter 2.0 mm
- measuring and testing during operation
- Open, close with test probe
- Resilient contacts, gold plated
Diameter
2 mm
Rated current
10 A
Admissible switching power
@ 100 Insertions:
110 W / max. 2 A or 75 VDC
150 W / max. 5 A or 50 VAC
Contact resistance
< 7 mΩ at 20 mV
Insulation Resistance
> 5 MΩ ( 500 VDC: 1 min)
Dielectric strength
> 2 kV ( 50 Hz: 1 min)
Allowable Operation Temperature
-25 °C to 70 °C
Solderability
235 °C / 2 sec acc. to IEC 60068-2-20 , Test Ta, method 1
Resistance to Soldering Heat
260 °C / 5 sec acc. to IEC 60068-2-20 , Test Tb, method 1A
Weight
0.5 g
Material: Housing
Thermoplastic (PC), UL 94V-2
Surface of contacts
gold plated , Thickness 1.0 µm
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Short Table of Variants PB 1111 Open complete table PB 1111
| Product group | Color |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |
|---|---|---|---|---|---|---|
| Test Jack | black | 0040.1111 | ... | |||
| Test Jack | red | 0040.1112 | ... |
| Packaging unit | 100 Pcs |
Mating Inlets/Plugs (1)
