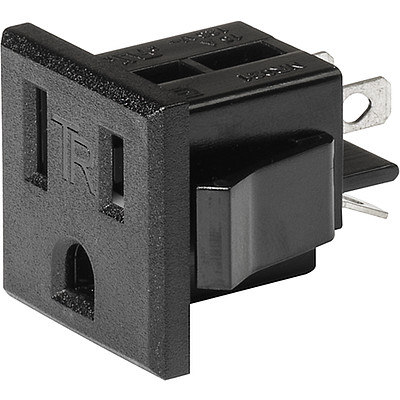

NR021 NEMA line Outlet 5-15R tamper resistant, Snap-in Mounting, Front Side, Solder Terminal

With insulation walls between terminals

Series: NR021

NEMA line Outlet 5-15R tamper resistant, Snap-in Mounting, Front Side, Solder Terminal

6 Variants

Connectors (Inlets/Outlets)

NEMA 5-15R
Connector Logo

Approvals and Compliances

CAD

Description

Panel mount: Snap-in, Front Side
Line Outlet tamper resistant, Protection class I
Version with insulation walls between terminals designed for use in power distribution units for household and commercial furnishings required to meet the UL 962 spill test

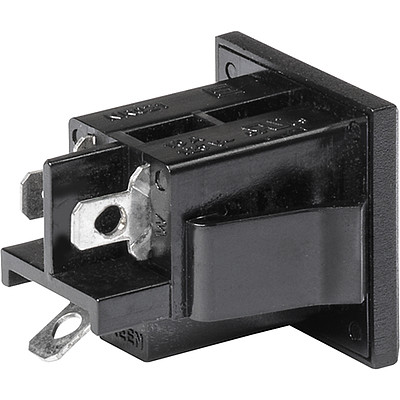

Solder terminals

Characteristics

Designed for standard applications
Suitable for use in equipment according to IEC/UL 62368-1

Other versions on request

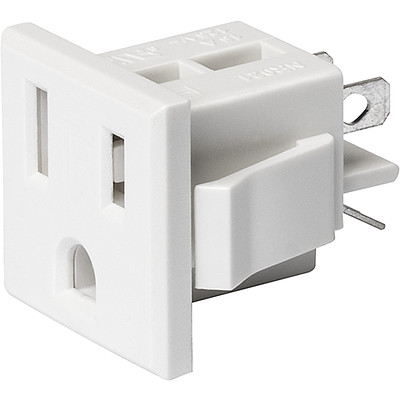

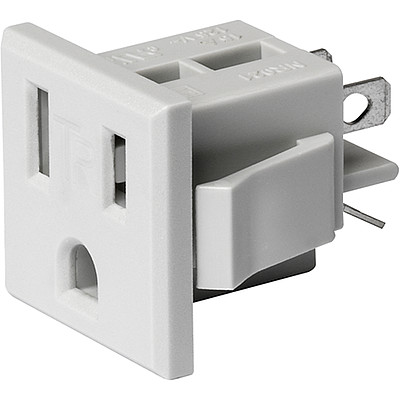

Variants in grey or white

Detailed request for product

Details NR021

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Ratings UL/CSA

Ratings UL

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

15 A / 125 VAC; 60 Hz

Dielectric Strength

Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)

Allowable Operation Temperature

-25 °C to 70 °C

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP20 acc. to IEC 60529

Protection against electric shock

IP-Protection

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals

Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Solder terminals

Panel Thickness S

See details in drawing
Snapper

Snap-in 0.8 mm to 1.6 mm

Material: Housing

Thermoplastic, black, UL 94V-0

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: NR021

Approval Logo	Certificates	Certification Body	Description
	UL Approvals	UL	UR File Number: E502078

Product standards

Product standards that are referenced

Organization	Design	Standard	Description
	Designed according to	UL 498	Standard for Attachment Plugs and Receptacles
	Designed according to	CSA C22.2 no. 42	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

Dimensions [mm]

	Version without insulation walls between teminals L-N

	Panel thickness s␉Length L 0.8 mm␉␉24.0 mm 1.0 mm␉␉24.6 mm 1.2 mm␉␉25.2 mm 1.6 mm␉␉26.2 mm

	Version with insulation walls between teminals L-N

	Panel thickness s␉Length L 0.8 mm␉␉24.0 mm 1.0 mm␉␉24.6 mm 1.2 mm␉␉25.2 mm 1.6 mm␉␉26.2 mm

Short Table of Variants NR021 Open complete table NR021

Type	Protection Class	Panel mounting	Order Number	...

NR021	I	Snap-in	3-119-053	...
NR021	I	Snap-in	3-121-545	...
NR021	I	Snap-in	3-127-323	...
NR021	I	Snap-in	3-119-054	...
NR021	I	Snap-in	3-121-990	...
NR021	I	Snap-in	3-121-991	...

Packaging unit

100 Pcs

Table of Variants NR021

Type	Protection Class	Panel mounting	Panel Thickness s [mm]	Terminal	Insulation wall L - N	Color	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form

NR021	I	Snap-in	0.8 - 1.6	Solder		black	3-119-053	100
NR021	I	Snap-in	0.8 - 1.6	Solder		white	3-121-545	100
NR021	I	Snap-in	0.8 - 1.6	Solder		grey	3-127-323	100
NR021	I	Snap-in	0.8 - 1.6	Solder	•	black	3-119-054	100
NR021	I	Snap-in	0.8 - 1.6	Solder	•	white	3-121-990	100
NR021	I	Snap-in	0.8 - 1.6	Solder	•	grey	3-121-991	100

Packaging unit

100 Pcs
