MTG  Printmount Switches red
Printmount Switches
red

Series: MTG

Printmount Switch Short Stroke 12.7 mm

12 Variants


Description

  • Switches are possible with different heights
  • High-quality gold and silver contacts
  • Solder terminals

Unique Selling Proposition

  • Reliable tactile feedback on input
  • Simple assembly
  • Long life time

Electrical Data

Contact Material Silver

Switching Voltage

max. 48 VDC

Switching current

max. 125 mA

Rated Switching Capacity

2.4 W

Lifetime

> 1 million actuations at Rated Switching Capacity

Contact Resistance

< 50 mΩ

< 50 mΩ after lifetime

Insulation Resistance

> 100 MΩ

Duration of Bounce

typ. 0.1 ms

Contact Material Gold

Switching Voltage

max. 24 VDC

Switching current

max. 50 mA

Rated Switching Capacity

0.48 W

Lifetime

> 1 million actuations at Rated Switching Capacity

Contact Resistance

< 50 mΩ

< 50 mΩ after lifetime

Insulation Resistance

> 100 MΩ

Duration of Bounce

typ. 0.1 ms

Mechanical Data

Actuating Force

2.5 ± 0.5 N

Actuating Travel

0.45 ± 0.1 mm

End Stop Strength

> 50 N

Lifetime

> 1 million actuations

Climatical Data

Operating Temperature

-25 °C to 85 °C

Storage Temperature

-25 °C to 85 °C

IP-Protection

IP40

Other Data

Contact Material

Ag / Au

Soldering Data

Solderability

235 °C / 2 sec (IEC 60068-2-20 Test Ta Method 1)

Resistance to Soldering Heat

260 °C / 5 sec (IEC 60068-2-20 Test Tb Method 1A)

Material

Sealing membrane IP67

VMQ

Contact Material Gold

CuZn37 3μm Ni 2 μm Au

Contact Material Silver

CuZn37 2,5 µm Au passivated

Socket

Thermoplastic (PA 66)

Actuator

Thermoplastic (PC)

Elongated Button

Thermoplastic (PC)

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

030090100000003000
LOADING...

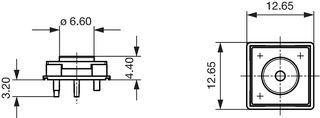

Dimension [mm]

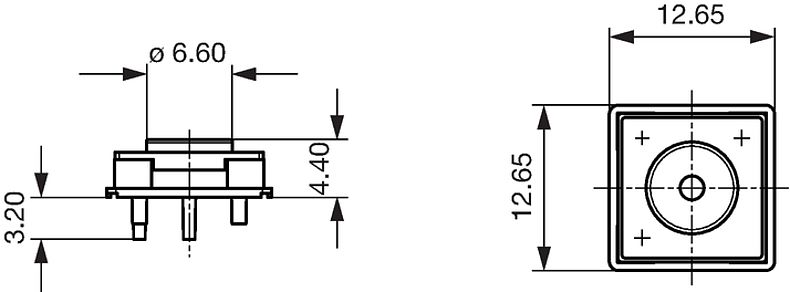

Short actuator

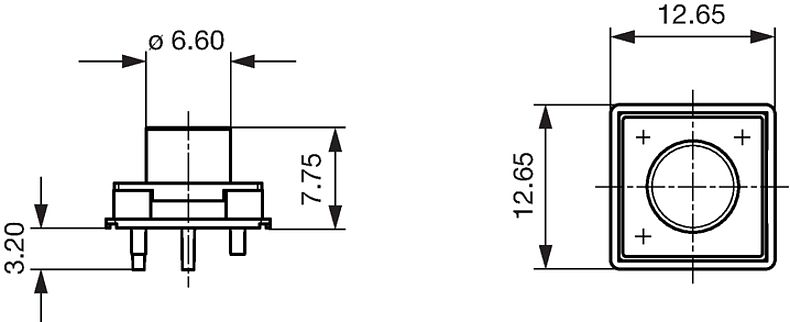

Long actuator

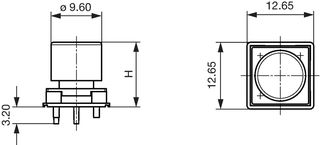

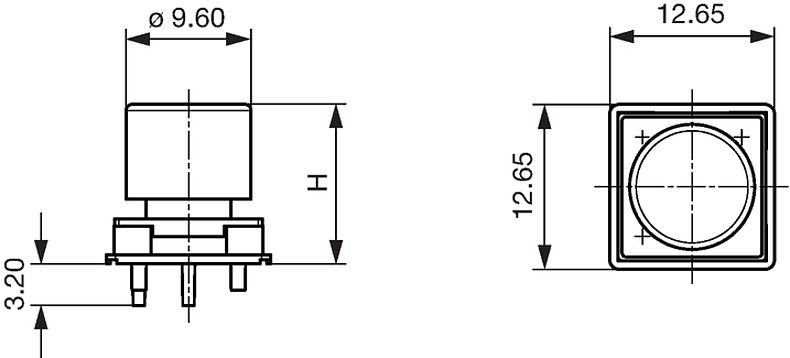

Height variable actuator

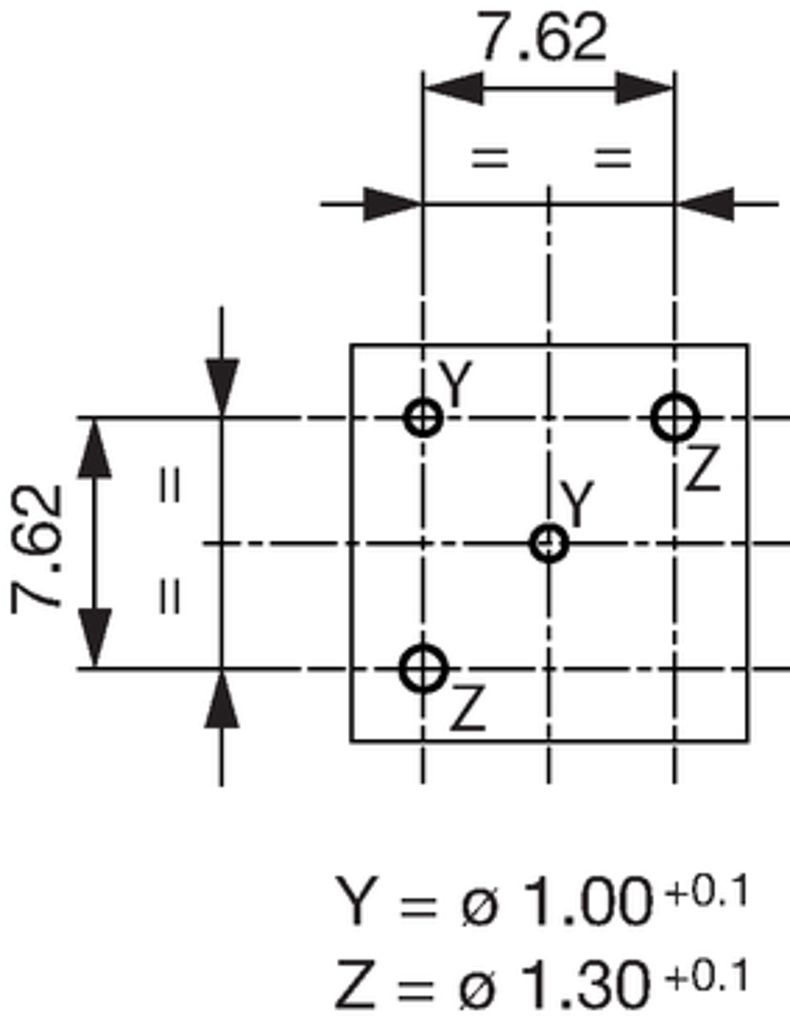

Drilling diagram

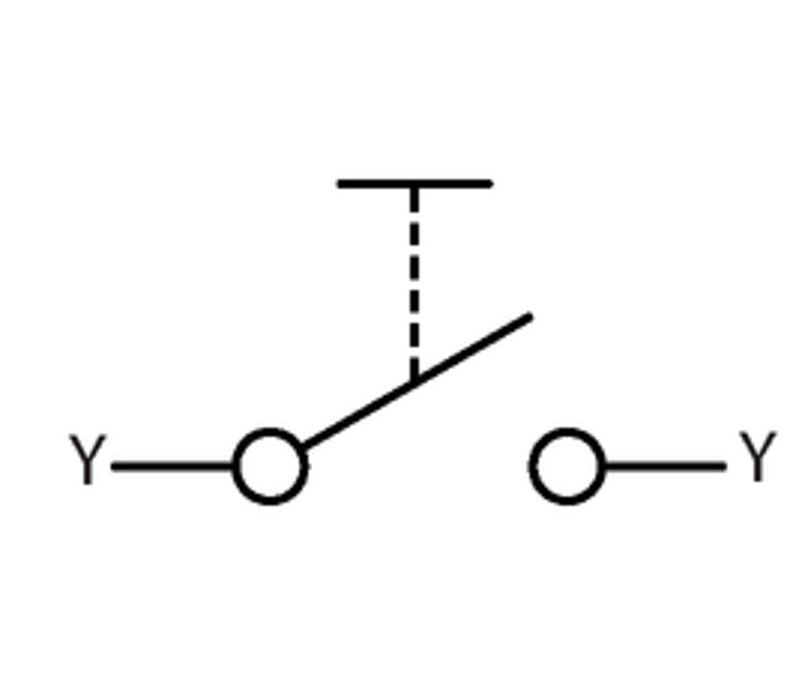

Diagrams


Short Table of Variants MTG Open complete table MTG

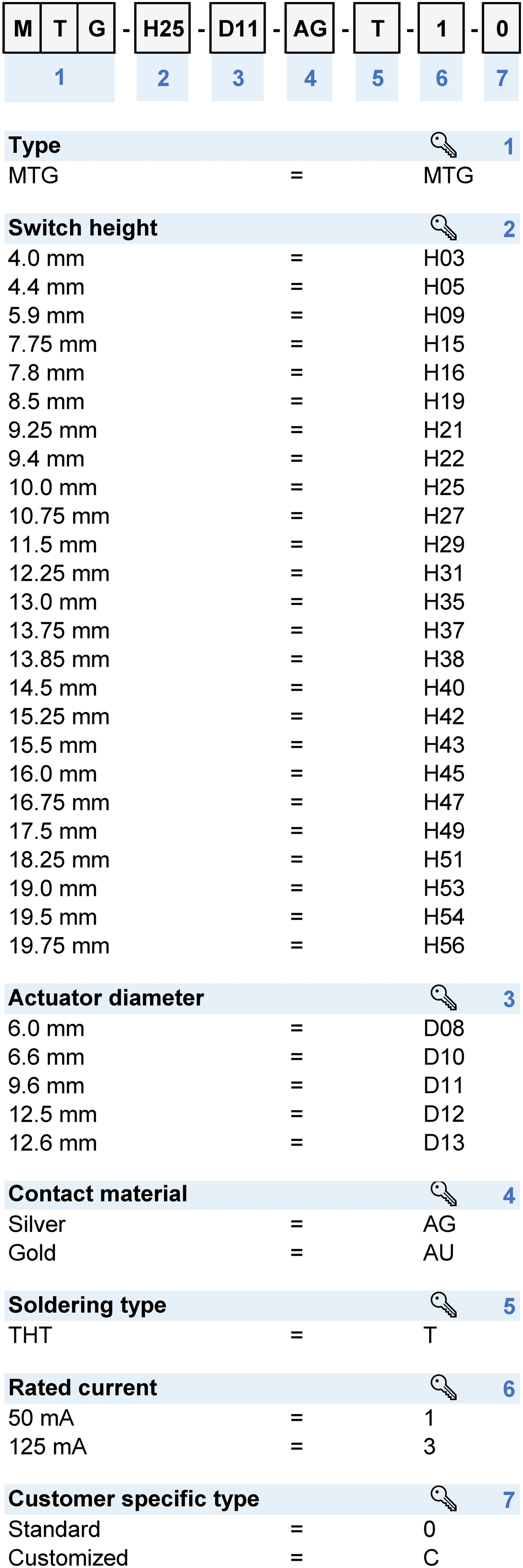

Kontakte Type Overall height / Color Bestellnummer
Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

Au Long actuator - 1241.1022 - ...
Au Height variable 10.75 mm / blue 1241.1032.4 - ...
Ag Short actuator - 1241.1052 - ...
Ag Long actuator - 1241.1072 - ...
Ag Height variable 8.50 mm / yellow 1241.1082.1 - ...
Ag Height variable - 1241.1082.11 - ...
Ag Height variable 9.25 mm / orange 1241.1082.2 - ...
Ag Height variable 10.00 mm / red 1241.1082.3 - ...
Ag Height variable 10.75 mm / blue 1241.1082.4 - ...
Ag Height variable - 1241.1082.41 - ...
Ag Height variable 11.50 mm / green 1241.1082.5 - ...
Ag Height variable 13.75 mm / white 1241.1082.8 - ...
¹⁾ Starting with 14.50 mm the heights are achieved with an additional (second) cap of black color
