Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.
Ring illumination
red
Area illumination
blue
Point Illumination
blue
Area illumination
yellow
81 Variants
Description
- Mechanical switch with stroke LA (Latching)
- With or without illumination
- With torsion protection for easier positioning
- Equipped with quick connect terminals to permit fast connection
- Protection class IP65 frontside
Unique Selling Proposition
- Attractive tactile feedback
- High quality materials
- Long life span
Characteristics
- Housing made from stainless steel
- Variety of design options regarding size, colour, illumination, connection or lettering
- Switching voltage 125 VAC / 250 VAC
Switching current 12 A / 16 A - Actuator in stainless steel or ceramic
Electrical Data
Supply Voltage LED
see table of variants
Micro Switch
see details in table 'Micro Switch'
Impulse Withstand Voltage (ESD)
2 kV
Mechanical Data
Actuating Force
10 N
Actuating Travel
5.2 mm
Lifetime
1.5 million actuations
Shock Protection
IK07
Mounting screw torque Plastic Nut
max. 3.5 Nm
Climatical Data
Operating Temperature
-20 to 85 °C
Storage Temperature
-20 to 85 °C
Salt Spray Test (acc. to IEC 60068-2-11)
24 h / 48 h / 96 h Residence Time
Material
Housing
Stainless Steel
Actuator
Stainless Steel / Ceramics
Seal Ring
NBR70
Plastic Nut
PA, UL94
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: MSM
| Approval Logo | Certificates | Certification Body | Description |
|---|
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Dimension [mm]
| All illuminated products and all non illuminated push buttons with symbols are supplied with anti-rotation protection |
|
Assembly Instructions

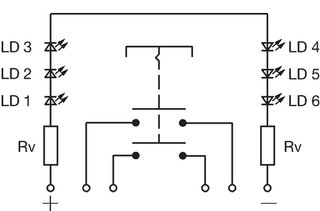

Diagrams

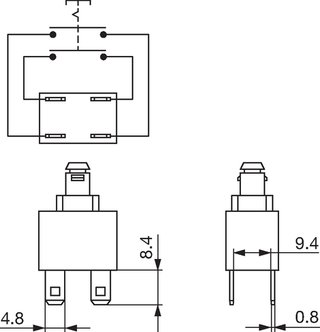

Micro Switch
| Micro Switch | Switch type | Contact Material | Switching Voltage | Switching current | Rated Switching Capacity | Lifetime | Contact Resistance | Insulation Resistance | Duration of Bounce |
| 0.1 A, IP40 | MO | Au | max. 30 VDC | max. 0.1 A | 3 W | 0.2 Mio. | < 50 mΩ | > 100 MΩ | < 5 ms |
| 0.1 A, IP67 | MO | max. 30 VDC | max. 0.1 A | 25 W | 0.05 Mio. | ||||
| 5 A / 125 VAC bzw. 3 A / 250 VAC, IP40 | MO | Ag | max. 125 / 250 VAC | max. 5 / 3 A | 750 W | 0.2 Mio. | < 30 mΩ | > 100 MΩ | < 5 ms |
| 6 A, IP67 | MO | max. 250 VAC | max. 5 A | 1250 W | 0.01 Mio. | ||||
| 10 A, IP40 | MO | Ag | max. 250 VAC | max. 10 A | 2500 W | 0.05 Mio. | < 30 mΩ | > 100 MΩ | < 5 ms |
| 10 A, IP67 | MO | max. 250 VAC | max. 10 A | 2500 W | 0.01 Mio. | ||||
| 12 A, IP40 | LA | Ag | max. 250 VAC | max. 12 A | 3000 W | 0.05 Mio. | < 100 mΩ | ||
| 16 A, IP40 | LA | Ag | max. 250 VAC | max. 16 A | 4000 W | 0.04 Mio. | < 100 mΩ | > 100 MΩ |
Point Illumination
| Operating Data | Forward Current max. | Forward Voltage at 10 mA | Forward Voltage max. |
| LED red | 30 mA | 1.9 VDC | 3.0 VDC |
| LED green | 30 mA | 2.4 VDC | 3.0 VDC |
| LED yellow | 30 mA | 2.4 VDC | 3.0 VDC |
| LED blue | 20 mA | 3.8 VDC | 4.5 VDC |
| LED red/green | 25 mA | 2.0 VDC | 2.5 VDC |
| Attention: Switches with point illumination (PI) are delivered without series resistor. | |||
| The three digits are part of the ordner number key | |
| 000 | No Lettering |
| 001-100 | Standard Lettering |
| 101- | Customized Lettering |
| Laser Marking | |||
| 001 = A | 021 = U | 041 = ÷ | 061 = EIN |
| 002 = B | 022 = V | 042 = ✳ | 062 = AUS |
| 003 = C | 023 = W | 043 = = | 063 = AUF |
| 004 = D | 024 = X | 044 = # | 064 = AB |
| 005 = E | 025 = Y | 045 = ↔ | 065 = ON |
| 006 = F | 026 = Z | 046 = ↕ | 066 = OFF |
| 007 = G | 027 = 0 | 047 = → | 067 = UP |
| 008 = H | 028 = 1 | 048 = ← | 068 = DOWN |
| 009 = I | 029 = 2 | 049 = ↓ | 069 = HIGH |
| 010 = J | 030 = 3 | 050 = ↑ | 070 = LOW |
| 011 = K | 031 = 4 | 051 = % | 071 = ON/OFF |
| 012 = L | 032 = 5 | 052 = √ | 072 = START |
| 013 = M | 033 = 6 | 053 = CTRL | 073 = RESET |
| 014 = N | 034 = 7 | 054 = RETURN | 074 = |
| 015 = O | 035 = 8 | 055 = SHIFT | 075 = |
| 016 = P | 036 = 9 | 056 = LOCK | 076 = |
| 017 = Q | 037 = + | 057 = STOP | 077 = |
| 018 = R | 038 = - | 058 = ENTER | |
| 019 = S | 039 = . | 059 = BACK | |
| 020 = T | 040 = x | 060 = LINE | |
|
Please note that the font size depends on the number of characters
|
|||
The nut with gasket and micro switch are enclosed in the box.
Short Table of Variants MSM LA Open complete table MSM LA
| Diameter | Switch type | Switching current |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |
|---|---|---|---|---|---|---|---|
| 19 | LA | 12 A | 1241.8546 | ... | |||
| 19 | LA | 12 A | 1241.8549 | ... | |||
| 19 | LA | 12 A | 1241.8552 | ... | |||
| 19 | LA | 12 A | 1241.8555 | ... | |||
| 19 | LA | 16 A | 3-100-987 | ... | |||
| 19 | LA | 16 A | 3-100-989 | ... | |||
| 19 | LA | 16 A | 3-100-990 | ... | |||
| 19 | LA | 16 A | 3-100-991 | ... | |||
| 19 | LA | 16 A | 3-100-999 | ... | |||
| 19 | LA | 16 A | 3-101-002 | ... | |||
| 19 | LA | 16 A | 3-101-003 | ... | |||
| 19 | LA | 16 A | 3-101-004 | ... | |||
| 19 | LA | 16 A | 3-101-007 | ... | |||
| 19 | LA | 16 A | 3-101-009 | ... | |||
| 19 | LA | 16 A | 3-101-010 | ... | |||
| 19 | LA | 16 A | 3-101-011 | ... | |||
| 19 | LA | 16 A | 3-101-022 | ... | |||
| 19 | LA | 16 A | 3-101-023 | ... | |||
| 19 | LA | 16 A | 3-101-024 | ... | |||
| 19 | LA | 12 A | 1241.6821.1110000 | ... | |||
| 19 | LA | 12 A | 1241.6823.1111000 | ... | |||
| 19 | LA | 12 A | 1241.8544 | ... | |||
| 19 | LA | 12 A | 1241.6823.1112000 | ... | |||
| 19 | LA | 12 A | 1241.6823.1114000 | ... | |||
| 19 | LA | 12 A | 1241.8545 | ... | |||
| 19 | LA | 12 A | 1241.6824.1111000 | ... | |||
| 19 | LA | 12 A | 1241.6824.1112000 | ... | |||
| 19 | LA | 12 A | 1241.8547 | ... | |||
| 19 | LA | 12 A | 1241.6824.1114000 | ... | |||
| 19 | LA | 12 A | 1241.6824.1115000 | ... | |||
| 19 | LA | 12 A | 1241.8548 | ... | |||
| 19 | LA | 12 A | 1241.6821.1120000 | ... | |||
| 19 | LA | 12 A | 1241.6823.1121000 | ... | |||
| 19 | LA | 12 A | 1241.6823.1122000 | ... | |||
| 19 | LA | 12 A | 1241.6823.1124000 | ... | |||
| 19 | LA | 12 A | 1241.6824.1121000 | ... | |||
| 19 | LA | 12 A | 1241.6824.1122000 | ... | |||
| 19 | LA | 12 A | 1241.6824.1124000 | ... | |||
| 19 | LA | 12 A | 1241.8550 | ... | |||
| 19 | LA | 12 A | 1241.8551 | ... | |||
| 19 | LA | 12 A | 1241.8553 | ... | |||
| 19 | LA | 12 A | 1241.8554 | ... | |||
| 22 | LA | 16 A | 3-100-912 | ... | |||
| 22 | LA | 16 A | 3-101-001 | ... | |||
| 22 | LA | 16 A | 3-101-005 | ... | |||
| 22 | LA | 16 A | 3-101-012 | ... | |||
| 22 | LA | 16 A | 3-101-013 | ... | |||
| 22 | LA | 16 A | 3-101-014 | ... | |||
| 22 | LA | 16 A | 3-101-015 | ... | |||
| 22 | LA | 16 A | 3-101-016 | ... | |||
| 22 | LA | 16 A | 3-101-018 | ... | |||
| 22 | LA | 16 A | 3-101-029 | ... | |||
| 22 | LA | 16 A | 3-101-030 | ... | |||
| 22 | LA | 16 A | 3-101-031 | ... | |||
| 22 | LA | 16 A | 3-101-032 | ... | |||
| 22 | LA | 16 A | 3-101-033 | ... | |||
| 22 | LA | 16 A | 3-101-039 | ... | |||
| 22 | LA | 16 A | 3-101-040 | ... | |||
| 22 | LA | 16 A | 3-101-041 | ... | |||
| 22 | LA | 12 A | 1241.6831.1110000 | ... | |||
| 22 | LA | 12 A | 1241.6833.1111000 | ... | |||
| 22 | LA | 12 A | 1241.6833.1112000 | ... | |||
| 22 | LA | 12 A | 1241.6833.1114000 | ... | |||
| 22 | LA | 12 A | 1241.6834.1111000 | ... | |||
| 22 | LA | 12 A | 1241.6834.1112000 | ... | |||
| 22 | LA | 12 A | 1241.6834.1114000 | ... | |||
| 22 | LA | 12 A | 1241.6831.1120000 | ... | |||
| 22 | LA | 12 A | 1241.6833.1121000 | ... | |||
| 22 | LA | 12 A | 1241.6833.1122000 | ... | |||
| 22 | LA | 12 A | 1241.6833.1124000 | ... | |||
| 22 | LA | 12 A | 1241.6834.1121000 | ... | |||
| 22 | LA | 12 A | 1241.6834.1122000 | ... | |||
| 22 | LA | 12 A | 1241.6834.1124000 | ... | |||
| 22 | LA | 12 A | 1241.8556 | ... | |||
| 22 | LA | 12 A | 1241.8557 | ... | |||
| 22 | LA | 12 A | 1241.8559 | ... | |||
| 22 | LA | 12 A | 1241.8560 | ... | |||
| 22 | LA | 12 A | 1241.8562 | ... | |||
| 22 | LA | 12 A | 1241.8563 | ... | |||
| 22 | LA | 12 A | 1241.8565 | ... | |||
| 22 | LA | 12 A | 1241.8566 | ... |
| Packaging unit |
|
