Series: MSM II

Metal push-button with switching voltage up to 250 VAC and indicator elements with different illumination surfaces

73 Variants

Approvals and Compliances

CAD

Description

Indicator elements in identical design as push buttons
Mechanical switch with stroke MO (Momentary)
With or without illumination
With torsion protection for easier positioning
Equipped with quick connect terminals to permit fast connection

Unique Selling Proposition

Attractive tactile feedback
High quality materials
Long life span
Color marking and variety of design options regarding size, color and illumination

Characteristics

Housing material in stainless steel
Actuator in stainless steel or ceramic
Housing and actuator material of the ring-illuminated RD version in black anodized aluminum
Switching voltage from 30 VDC to 250 VAC
Switching current from 0.1 A to 10 A, with gold 100mA
All laser marked, ring-illuminated and point-illuminated versions have anti-rotation protection for easy mounting

Detailed request for product

Details MSM II

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Switching Function

See table of Subminiature and Microswitch

Supply Voltage LED

5 VDC - 24 VDC, see table of variants

Impulse Withstand Voltage (ESD)

8 kV contact discharge

15 kV air discharge

Mechanical Data

Actuating Force

4.5 N

Actuating Travel

1.0 mm

Lifetime

1.5 million actuations

Shock Protection

IK08 / IK07 (M30)

Mounting screw torque Plastic Nut

max. 3.5 Nm

Climatical Data

Operating Temperature

-30 to 85 °C (Sub. Microswitch to -40°C)

Storage Temperature

-40 to 85 °C

Protection Class

IP66 and IP67 Front Side

Salt Spray Test (acc. to IEC 60068-2-11)

24 h / 48 h / 96 h Residence Time

Material

Housing

Aluminium / Stainless Steel

Actuator

Aluminium / Stainless Steel / Ceramics

Seal Ring

NBR70

Plastic Nut

PA, UL94

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: MSMII

Approval Logo	Certificates	Certification Body	Description

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

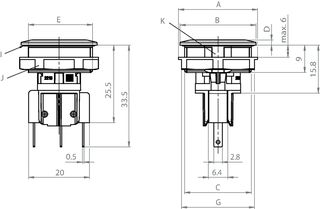

Dimension [mm]

	Non illuminated push buttons

	MSM II SPDT with Microswitch and Quick Connect Terminal

	MSM II SPDT with Subminiature Microswitch and Quick Solder Terminal

	MSM II DPDT Subminiature Microswitch

	Illuminated push buttons

	MSM II PI/RI SPDT with Microswitch and Quick Connect Terminal

	MSM II PI/RI SPDT with Subminiature Microswitch and Quick Solder Terminal

	MSM II PI/RI DPDT with Subminiature Microswitch and Quick Solder Terminal

	MSM II AI SPDT with Microswitch and Quick Connect Terminal

	MSM II AI SPDT with Subminiature Microswitch and Quick Solder Terminal

	MSM II AI DPDT with Subminiature Microswitch and Quick Solder Terminal

	Indicator

	MSM II Indicator with Quick Connect Terminal

	MSM II Indicator with Quick Solder Terminal

	All illuminated products and all non illuminated push buttons with symbols are supplied with anti-rotation protection

	Non-illuminated push-buttons are supplied without anti-rotation protection

Diagrams

	Switching element SPDT

	Switching element DPDT

	Illumination single color Terminal assignment without series resistor

	Illumination RGB Terminal assignment without series resistor

	Illumination single color Terminal assignment with resistors for 5 VDC

	Illumination RGB Terminal assignment with resistors for RGB 5 VDC

	Illumination single color Terminal assignment with resistors for 12 VDC and 24 VDC

	Illumination RGB Terminal assignment with resistors for RGB 12 VDC and 24 VDC

	Illumination options for RGB

Micro Switch

Micro Switch	Contact Material	Switching Voltage	Switching current	Rated Switching Capacity	Lifetime	Contact Resistance	Insulation Resistance	Duration of Bounce
0.1 A, IP40	Au	max. 30 VDC	max. 0.1 A	3 W	0.2 Mio.	< 50 mΩ	> 100 MΩ	< 5 ms
0.1 A, IP67		max. 30 VDC	max. 0.1 A	25 W	0.05 Mio.
5 A / 125 VAC resp. 3 A / 250 VAC, IP40	Ag	max. 125 / 250 VAC	max. 5 / 3 A	750 W	0.2 Mio.	< 30 mΩ	> 100 MΩ	< 5 ms
6 A, IP67		max. 250 VAC	max. 5 A	1250 W	0.01 Mio.
10 A, IP40	Ag	max. 250 VAC	max. 10 A	2500 W	0.05 Mio.	< 30 mΩ	> 100 MΩ	< 5 ms
10 A, IP67		max. 250 VAC	max. 10 A	2500 W	0.01 Mio.

Subminiature Microswitch

Subminiature Microswitch	Contact Material	Switching Voltage	Switching current	Rated Switching Capacity	Lifetime	Contact Resistance	Insulation Resistance	Duration of Bounce
0.1 A, IP40	Au	max. 30 VDC	max. 0.1 A	3 W	0.1 Mio.	< 100 mΩ	> 100 MΩ	< 10 ms
3 A , IP40	Ag	max. 125 VAC	max. 3 A	375 W	0.03 Mio.	< 30 mΩ	> 100 MΩ	< 10 ms

Illumination

Operating Data	Forward Current max.	Forward Voltage at 10 mA	Forward Voltage max.
LED red	25 mA	1,7 VDC	2,4 VDC
LED green	25 mA	2,6 VDC	3,2 VDC
LED blue	25 mA	2,6 VDC	3,2 VDC

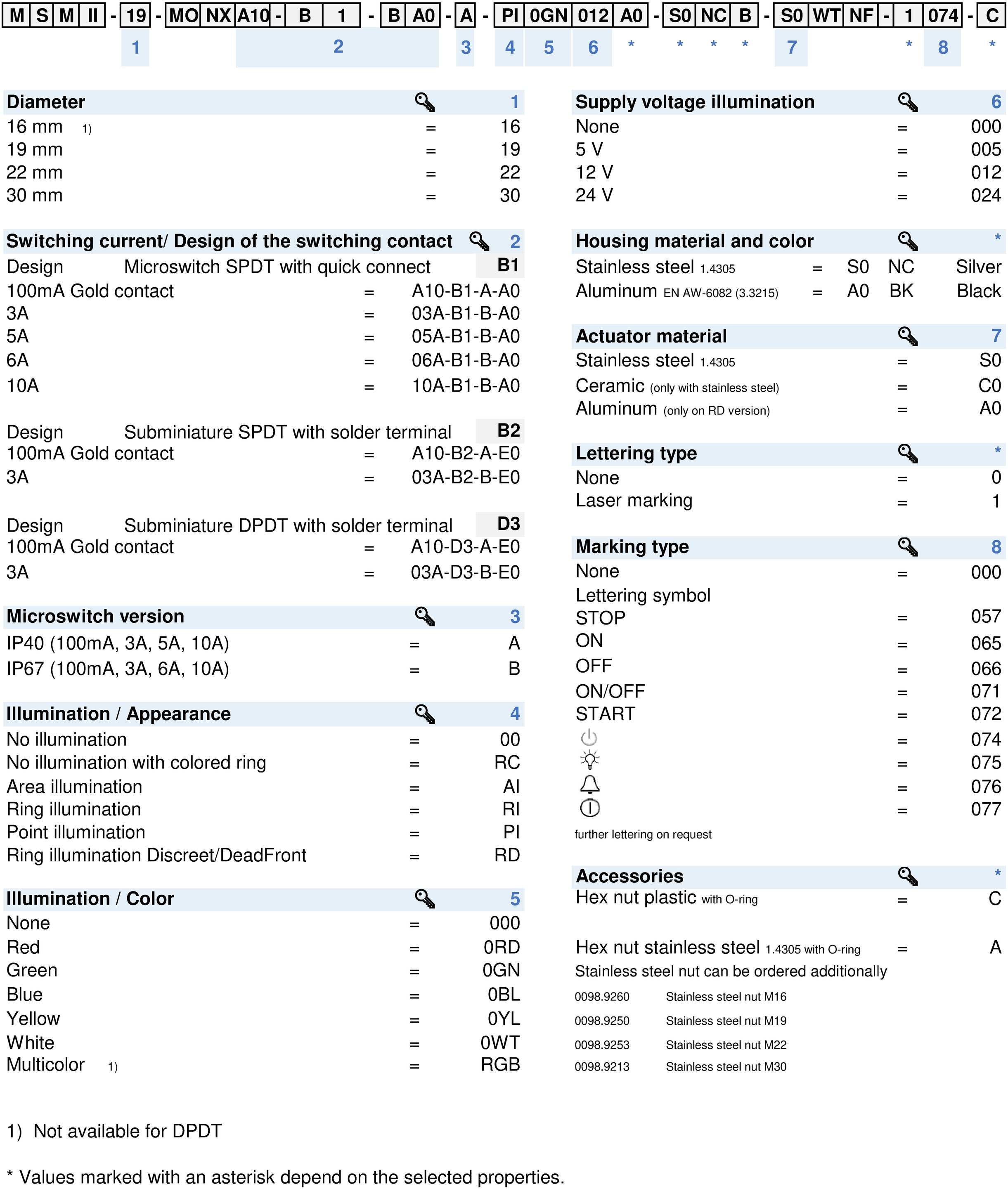

Order number key MSM II

Packaging

The nut with gasket and micro switch are enclosed in the box.

Short Table of Variants MSM II Open complete table MSM II

Diameter	Switching current	Electrical contact	Order Number	...


16	100 mA	SPDT	3-145-122	...
16	5 A	SPDT	3-145-273	...
16	-	-	3-148-084	...
16	-	-	3-148-278	...
16	-	-	3-148-279	...
16	-	-	3-148-339	...
16	-	-	3-148-342	...
16	-	-	3-148-345	...
16	-	-	3-148-355	...
16	-	-	3-148-356	...
16	-	-	3-148-357	...
16	-	-	3-148-372	...
16	-	-	3-148-392	...
16	-	-	3-148-396	...
19	100 mA	SPDT	3-145-448	...
19	100 mA	SPDT	3-145-539	...
19	5 A	SPDT	3-145-556	...
19	5 A	SPDT	3-145-559	...
19	5 A	SPDT	3-145-567	...
19	3 A	DPDT	3-145-766	...
19	3 A	DPDT	3-145-768	...
19	3 A	DPDT	3-146-007	...
19	-	-	3-148-398	...
19	-	-	3-148-400	...
19	-	-	3-148-401	...
19	-	-	3-148-412	...
19	-	-	3-148-413	...
19	-	-	3-148-414	...
19	-	-	3-148-415	...
19	-	-	3-148-416	...
19	-	-	3-148-417	...
19	-	-	3-148-418	...
19	-	-	3-148-419	...
19	-	-	3-148-420	...
22	5 A	SPDT	3-145-478	...
22	10 A	SPDT	3-145-479	...
22	100 mA	SPDT	3-145-527	...
22	100 mA	SPDT	3-145-534	...
22	100 mA	SPDT	3-145-535	...
22	100 mA	SPDT	3-145-546	...
22	100 mA	SPDT	3-145-729	...
22	100 mA	SPDT	3-145-731	...
22	100 mA	SPDT	3-145-742	...
22	100 mA	SPDT	3-145-746	...
22	100 mA	SPDT	3-145-747	...
22	5 A	SPDT	3-145-749	...
22	100 mA	SPDT	3-145-751	...
22	100 mA	SPDT	3-145-777	...
22	3 A	DPDT	3-145-879	...
22	100 mA	SPDT	3-145-891	...
22	3 A	DPDT	3-145-920	...
22	-	-	3-148-421	...
22	-	-	3-148-422	...
22	-	-	3-148-423	...
22	-	-	3-148-424	...
22	-	-	3-148-425	...
22	-	-	3-148-426	...
22	-	-	3-148-427	...
22	-	-	3-148-428	...
22	-	-	3-148-429	...
22	-	-	3-148-430	...
22	-	-	3-148-431	...
22	-	-	3-148-432	...
30	5 A	SPDT	3-145-589	...
30	5 A	SPDT	3-145-657	...
30	3 A	DPDT	3-146-043	...
30	3 A	DPDT	3-146-044	...
30	-	-	3-148-433	...
30	-	-	3-148-434	...
30	-	-	3-148-435	...
30	-	-	3-148-436	...
30	-	-	3-148-437	...
30	-	-	3-148-438	...
