Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.
Blue ring illumination
10 Variants
Description
- Momentary switch available in version ring Illumination and Lettering
- Flexible wire connection
Unique Selling Proposition
- Flat front design metal made
- Switching voltage 48 VDC, switching current 125 mA
- With multicolor ring illumination
Characteristics
- Housing material: aluminum or stainless steel, actuator material types: zinc die-cast or stainless steel
- For use in harsh environments
Electrical Data
Switching Function
N.O.
Switching Voltage
min. 4 VDC , max. 48 VDC
Switching current
max. 125 mA
Rated Switching Capacity
1.2 W
Supply Voltage
5 - 28 VDC
Current Consumption per illumination color
16.5 mA @ 5 VDC
8.2 mA @ 12 VDC
5.2 mA @ 24 VDC
4.8 mA @ 28 VDC
Lifetime
1 million actuations at Rated Switching Capacity
Contact Resistance
< 50 mΩ, < 150 mΩ
Insulation Resistance
> 100 MΩ
Duration of Bounce
< 5 ms
Mechanical Data
Actuating Force
3.7 N
Actuating Travel
0.4 mm
Lifetime
1 million actuations
Shock Protection
IK05
Climatical Data
Operating Temperature
-20 to 60 °C
Storage Temperature
-20 to 60 °C
Protection Class
IP65
Switching Unit
IP65
Salt Spray Test (acc. to DIN 50021-SS)
24 h / 48 h / 96 h Residence Time
Material
Housing
Aluminium anodized
Finger Guide
Zinc Die Casting Nickel Plated
Actuator unlettered
Zinc Die Casting Nickel Plated
Actuator lettered
Stainless Steel
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Diagrams
| MCS 30 RI RGY |
|

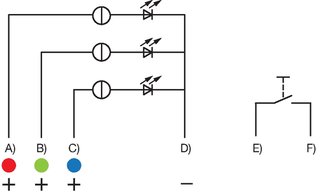

| A) Cable (color of the LED), Supply voltage B) Cable (color of the LED), Supply voltage C) Cable (color of the LED), Supply voltage D) Cable (black), Common mass E) Cable (white), Input and output MCS switch F) Cable (white), Input and output MCS switch |
| MCS 30 RI RGB |
|
| A) Cable (color of the LED), Supply voltage B) Cable (color of the LED), Supply voltage C) Cable (color of the LED), Supply voltage D) Cable (black), Common mass E) Cable (white), Input and output MCS switch F) Cable (white), Input and output MCS switch |
| The last three digits in the order number define the lettering: | |
| 000 | No Lettering |
| 001-074 | Standard Lettering |
| 101- | Customized Lettering |
| Material | Lettering Colour | |
| Stainless Steel | black | Filled letters |
| Laser Marking | |||
| 001 = A | 021 = U | 041 = ÷ | 061 = EIN |
| 002 = B | 022 = V | 042 = ✳ | 062 = AUS |
| 003 = C | 023 = W | 043 = = | 063 = AUF |
| 004 = D | 024 = X | 044 = # | 064 = AB |
| 005 = E | 025 = Y | 045 = ↔ | 065 = ON |
| 006 = F | 026 = Z | 046 = ↕ | 066 = OFF |
| 007 = G | 027 = 0 | 047 = → | 067 = UP |
| 008 = H | 028 = 1 | 048 = ← | 068 = DOWN |
| 009 = I | 029 = 2 | 049 = ↓ | 069 = HIGH |
| 010 = J | 030 = 3 | 050 = ↑ | 070 = LOW |
| 011 = K | 031 = 4 | 051 = % | 071 = ON/OFF |
| 012 = L | 032 = 5 | 052 = √ | 072 = START |
| 013 = M | 033 = 6 | 053 = CTRL | 073 = RESET |
| 014 = N | 034 = 7 | 054 = RETURN | 074 = |
| 015 = O | 035 = 8 | 055 = SHIFT | 075 = |
| 016 = P | 036 = 9 | 056 = LOCK | 076 = |
| 017 = Q | 037 = + | 057 = STOP | 077 = |
| 018 = R | 038 = - | 058 = ENTER | |
| 019 = S | 039 = . | 059 = BACK | |
| 020 = T | 040 = x | 060 = LINE | |
|
Please note that the font size depends on the number of characters
|
|||
- Actuating elements in ESD safe packaging
- Screw nuts and sealing O-ring in a bag (enclosed in the box)
Short Table of Variants MCS 30 Open complete table MCS 30
| Housing Material | Finger guide Material | Actuator Material |
Bestellnummer
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Aluminum | Zinc Diecasting | Zinc Diecasting | 1241.6400 | ... | ||||||||
| Aluminum | Zinc Diecasting | Zinc Diecasting | 1241.6401 | ... | ||||||||
| Aluminum | Zinc Diecasting | Zinc Diecasting | 1241.6402 | ... | ||||||||
| Aluminum | Zinc Diecasting | Zinc Diecasting | 1241.6403 | ... | ||||||||
| Aluminum | Zinc Diecasting | Zinc Diecasting | 1241.6404 | ... | ||||||||
| Aluminum | Zinc Diecasting | Stainless Steel | 1241.6405 | ... | ||||||||
| Aluminum | Zinc Diecasting | Stainless Steel | 1241.6408 | ... | ||||||||
| Aluminum | Zinc Diecasting | Zinc Diecasting | 1241.6454 | ... | ||||||||
| Aluminum | Zinc Diecasting | Zinc Diecasting | 1241.6455 | ... | ||||||||
| Stainless Steel | Stainless Steel | Stainless Steel | 1241.6456 | ... | ||||||||
| The MCS 30 switch versions "Lettering possible" can be lettered according to the lettering indices. |
||||||||||||
| The MOQ for standard laser lettering on standard variants is a packing unit. |
||||||||||||
| The contact material is silver |
||||||||||||
| Terminal: wire 200 mm |
||||||||||||
| Nut with gasket are enclosed in the box. |
||||||||||||
| Packaging unit | 20 in cardboard box packed in air cushion bag |
Accessories (1)
Power Supply
Power Supply IP42 for LED- and Illumination applications indoor 90~264 VAC => 24 VDC 0.34 A 8 W
