Series: MCS 18 Print

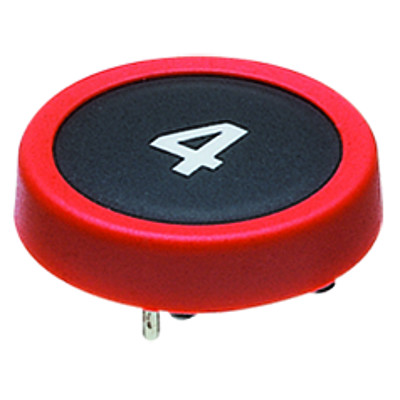

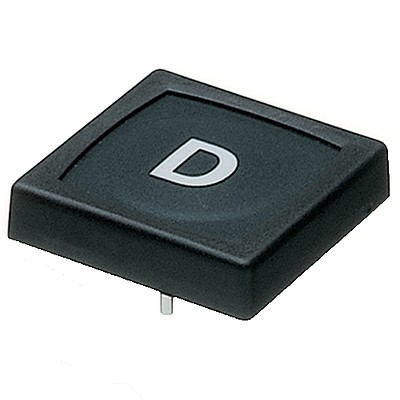

Membrane Switch Printmount Short Stroke 18mm

4 Variants


Description

  • Momentary action switch available in version square or round in different colours
  • High-quality gold and silver contacts
  • Ideal switch for applications with multiple key points
  • Solder terminals

Unique Selling Proposition

  • Unique mechanical switches with tactile feedback
  • Extremely low design
  • Various lettering options
  • Long life time

Electrical Data

Contact Material Silver

Switching Voltage

min. 5 VDC ,  max. 48 VDC

Switching current

max. 125 mA

Rated Switching Capacity

0.72 W

Lifetime

> 1 million at Rated Switching Capacity

Contact Resistance

< 50 mΩ

< 150 mΩ after lifetime

Insulation Resistance

> 100 MΩ

Duration of Bounce

typ. 0.1 ms

Contact Material Gold

Switching Voltage

min. 50 mVDC,  max. 24 VDC

Switching current

max. 80 mA

Rated Switching Capacity

0.36 W

Lifetime

> 1 million at Rated Switching Capacity

Contact Resistance

< 50 mΩ

< 150 mΩ after lifetime

Insulation Resistance

> 100 MΩ

Duration of Bounce

typ. 0.1 ms

Mechanical Data

Actuating Force

3 ± 1 N

Actuating Travel

0.5 ± 0.1 mm

End Stop Strength

> 50 N

Lifetime

> 1 million actuations

Climatical Data

Operating Temperature

-25 °C to 60 °C

Storage Temperature

-25 °C to 60 °C

IP-Protection

IP65

Other Data

Contact Material

Ag / Au

Soldering Data

Solderability

235 °C / 2 sec (IEC 60068-2-20 Test Ta Method 1)

Resistance to Soldering Heat

260 °C / 5 sec (IEC 60068-2-20 Test Tb Method 1A)

Material

Housing

Thermoplastic (PES)

Socket

Thermoplastic (PES)

Bezel

Thermoplastic (PBT)

Contact

CuZn37 3 μm Ni 2 μm Au; CuZn37 2.5 μm Ag

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_50_non_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

030090100000003006
LOADING...

Dimension [mm]

Drilling diagram
Drilling diagram

Diagrams


Laser Marking
001 = A 021 = U 041 = ÷ 061 = EIN
002 = B 022 = V 042 = ✳ 062 = AUS
003 = C 023 = W 043 = = 063 = AUF
004 = D 024 = X 044 = # 064 = AB
005 = E 025 = Y 045 = ↔ 065 = ON
006 = F 026 = Z 046 = ↕ 066 = OFF
007 = G 027 = 0 047 = → 067 = UP
008 = H 028 = 1 048 = ← 068 = DOWN
009 = I 029 = 2 049 = ↓ 069 = HIGH
010 = J 030 = 3 050 = ↑ 070 = LOW
011 = K 031 = 4 051 = % 071 = ON/OFF
012 = L 032 = 5 052 = √ 072 = START
013 = M 033 = 6 053 = CTRL 073 = RESET
014 = N 034 = 7 054 = RETURN 074 =
015 = O 035 = 8 055 = SHIFT 075 =
016 = P 036 = 9 056 = LOCK 076 =
017 = Q 037 = + 057 = STOP 077 =
018 = R 038 = - 058 = ENTER
019 = S 039 = . 059 = BACK
020 = T 040 = x 060 = LINE
Please note that the font size depends on the number of characters
- Single characters, Univers 65 - Legends max. 6 characters in line, Univers 65 - Insert label and front foil anthracite, RAO 7016 - Characters and symbols light grey, RAL 7035

Short Table of Variants MCS 18 Print Open complete table MCS 18 Print

Kontakte Form Color Bezel Bestellnummer
Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

Ag round black 1241.1110.7091 - ...
Ag round black 1241.1110.7093 - ...
Ag round black 1241.1110.7097 - ...
Au round black 1241.1111.7093 - ...
For Lettering versions see tables "Lettering" and "Order Index Lettering" to determine the symbol

Packaging unit 100 pcs
