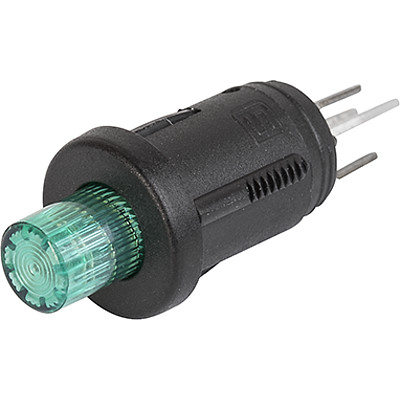

LDT/LDS  Frontpanel Switch 10 mm green round, illuminated
Frontpanel Switch 10 mm
green
round, illuminated

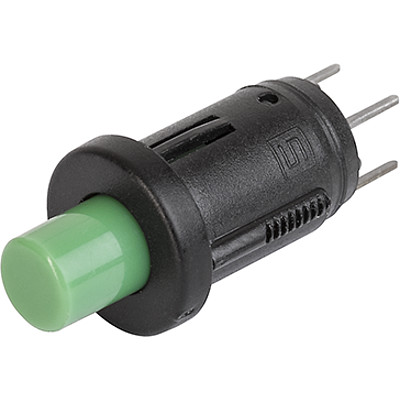

LDT/LDS  Frontpanel Switch 10 mm green round
Frontpanel Switch 10 mm
green
round

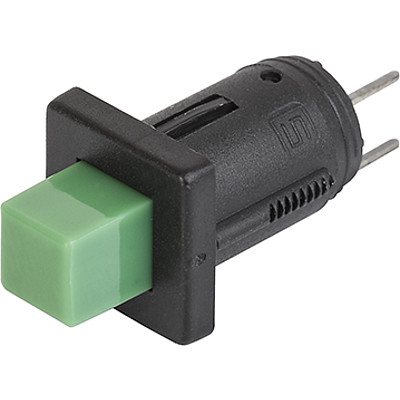

LDT/LDS  Frontpanel Switch 10 mm green square
Frontpanel Switch 10 mm
green
square
LDT/LDS  Frontpanel Switch 10 mm green round, illuminated
LDT/LDS  Frontpanel Switch 10 mm green round
LDT/LDS  Frontpanel Switch 10 mm green square

Series: LDT/LDS

Frontpanel Switch / Momentary or Latching, Medium Stroke, 10 mm

10 Variants


Description

  • Available in version square or round in different colours
  • non-illuminated or illuminated
  • 1  or 2 pole
  • Solder / THT / solder lugs

Unique Selling Proposition

  • Absolute reliability and simple assembly
  • Compact design with very small mounting depth
  • Good illumination

Electrical Data

Switching Voltage

min. 100 mVAC/DC ,  max. 48 VAC / 48 VDC

Switching current

max. 200 mA

Lifetime

> 100'000 actuations at Rated Switching Capacity 1.2 W

Contact Resistance

< 20 mΩ

< 25 mΩ after lifetime

Insulation Resistance

> 10'000 MΩ

Duration of Bounce

typ. 0.5 ms

Mechanical Data

Actuating Force

1.2 ± 0.6 N

Actuating Travel

1.3 ± 0.5 mm

End Actuating Travel

2.9 ± 0.5 mm

End Stop Strength

> 50 N

Lifetime

> 100'000 actuations

Climatical Data

Operating Temperature

illuminated -25 °C to 60 °C

Non-illuminated -25 °C to 85 °C

Storage Temperature

illuminated -25 °C to 60 °C

Non-illuminated -25 °C to 85 °C

IP-Protection

IP40

Other Data

Solderability

235 °C / 2 sec (IEC 60068-2-20 Test Ta Method 1)

Resistance to Soldering Heat

260 °C / 5 sec (IEC 60068-2-20 Test Tb Method 1A)

Material

Socket

Thermoplastic (PES)

Button

Thermoplastic (PC)

Contact

CuZn37 5 µm Ag

Contact spring

CuBe37 5 µm Ag

Terminals

CuZn37 4 µm SN Pb 40

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

030090110000003100
LOADING...

Dimension [mm]

Small button

Small button with solder lugs

Small button
Small button with solder lugs
Small button
Small button with solder lugs

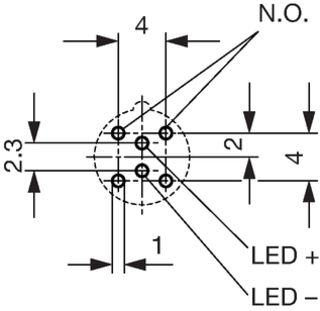

Drilling diagram / Wiring diagram
Drilling diagram / Wiring diagram
Front panel drilling
Front panel drilling

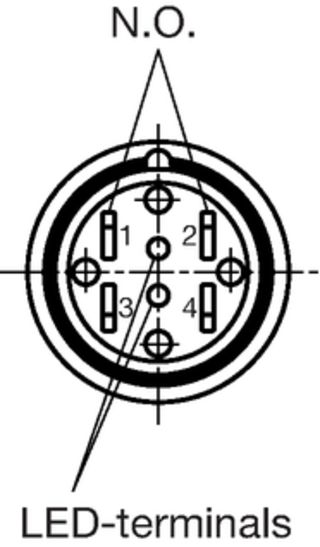

Solder lug version
Solder lug version

Assembly Instructions

Securing clip, round bezel button, square betel button

Necessary for front panel mounting
Securing clip, round bezel button, square betel button

Necessary for front panel mounting

Diagrams

NO 1 pole

NO 2 pole

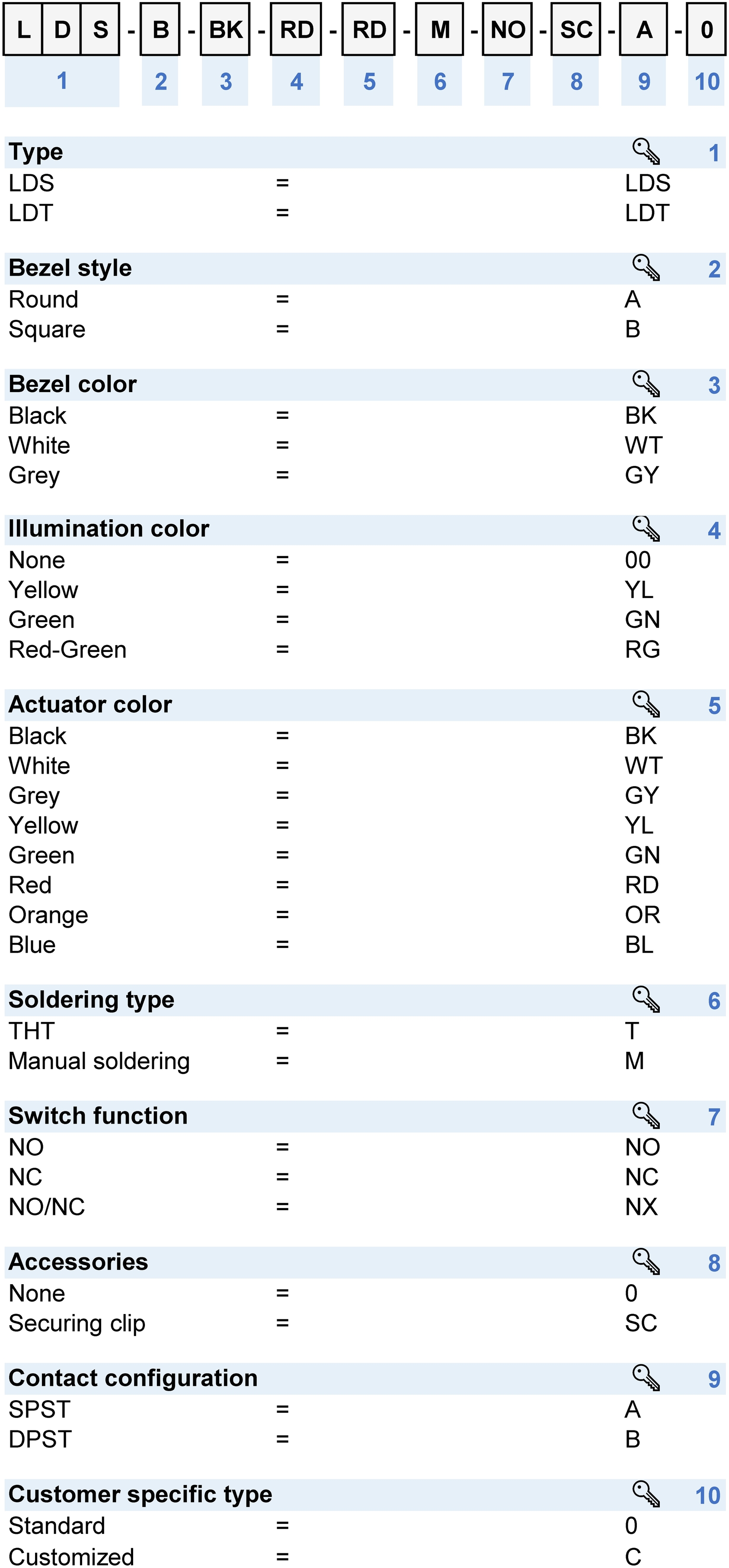

Short Table of Variants LDT/LDS Open complete table LDT/LDS

Type Number of Poles Terminal Bestellnummer
Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

Momentary 1-pole Solder lugs 0041.8841.3107 - ...
Momentary 1-pole Solder lugs 0041.8841.7107 - ...
Latching 2-pole Solder lugs 0041.8857.3117 - ...
Latching 2-pole Solder lugs 0041.8857.5127 - ...
Momentary 1-pole Solder / THT 0041.9141.3107 - ...
Momentary 1-pole Solder / THT 0041.9146.3117 - ...
Momentary 1-pole Solder / THT 0041.9146.5127 - ...
Latching 1-pole Solder / THT 0041.9156.3117 - ...
Latching 1-pole Solder / THT 0041.9156.5127 - ...
Securing clip - - 0850.9242 - ...
With the illuminated version, the small button is transparent
¹⁾Securing clip is included for solder lug version

Packaging unit 100 pcs
