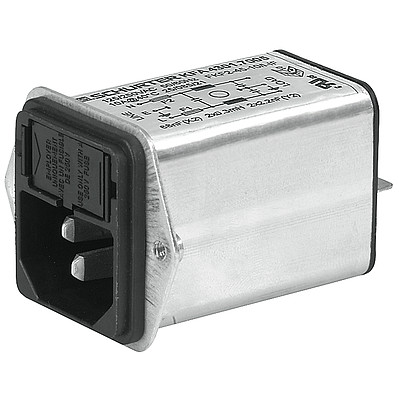

KFA Screw-on mounting from front side Version with ground line choke without voltage selector
Screw-on mounting from front side
Version with ground line choke
without voltage selector

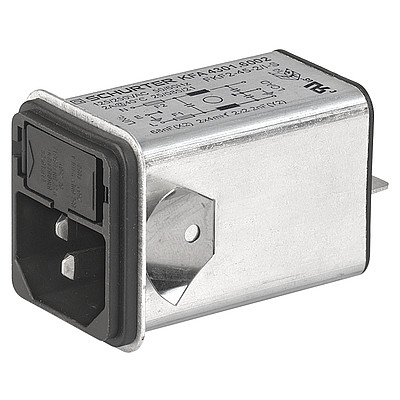

KFA Snap-in mounting from front side without voltage selector
Snap-in mounting from front side
without voltage selector

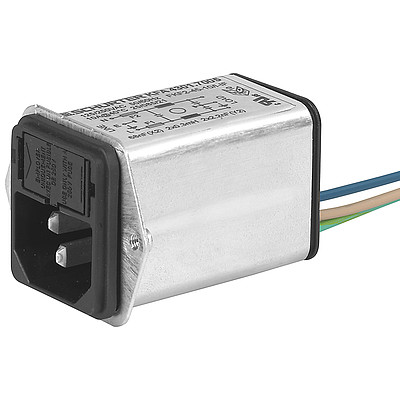

KFA Screw-on mounting from rear side without voltage selector Flexible wire AWG18
Screw-on mounting from rear side
without voltage selector
Flexible wire AWG18

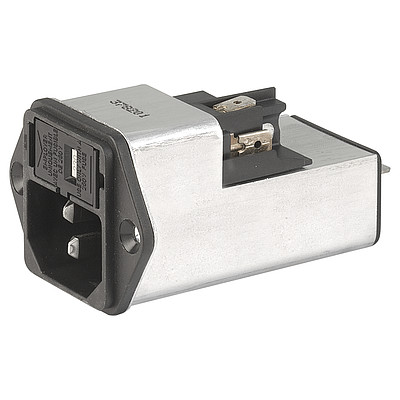

KFA Screw-on mounting from front side with voltage selector
Screw-on mounting from front side
with voltage selector

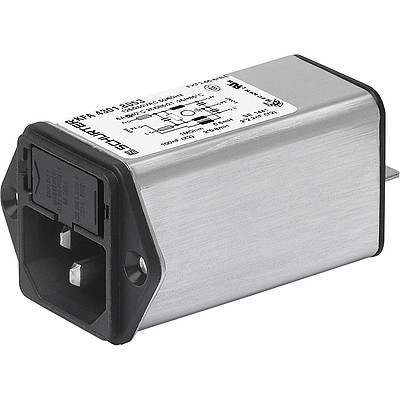

KFA Screw-on mounting from rear side without voltage selector
Screw-on mounting from rear side
without voltage selector

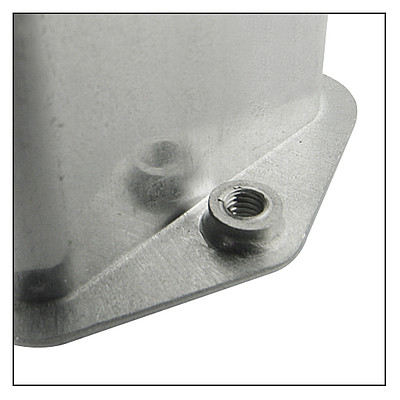

KFA Screw-on mounting from rear side without voltage selector
Screw-on mounting from rear side
without voltage selector
KFA IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole, optional Voltage Selector (step switch)
KFA Screw-on mounting from front side Version with ground line choke without voltage selector
KFA Snap-in mounting from front side without voltage selector
KFA Screw-on mounting from rear side without voltage selector Flexible wire AWG18
KFA Screw-on mounting from front side with voltage selector
KFA Screw-on mounting from rear side without voltage selector
KFA Screw-on mounting from rear side without voltage selector
KFA IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole, optional Voltage Selector (step switch)

Series

KFA

IEC Appliance Inlet C14 with Filter, Fuseholder 1- or 2-pole, optional Voltage Selector (step switch)

Free Sample Request

80 Variants

Connectors (Inlets/Outlets)

C14
Connector Logo
70° C

Approvals and Compliances
CAD
Audio Products

Description KFA

Description

  • Panel mount: Screw-on version from front or rear side, snap-in version front side
  • 4 Functions: Appliance Inlet Protection class I, Fuseholder for fuse-links 5 x 20 mm 1  or 2 pole, with or without voltage selector (step switch), Line filter in standard and medical version
  • V-Lock notch standard
  • Quick connect terminals / wires

Unique Selling Proposition

  • Reduces noise on the ground wire
  • Interrupts ground loops
  • High asymmetrical attenuation
  • V-Lock cord retaining

Characteristics

  • Rear side mounting for efficient costsaving assembly
    Suitable for assembly in metal plated plastic housings
  • All single elements are already wired
  • Plug removal necessary for fuse-link replacement
  • Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)
    For applications according IEC/UL 62368-1 we recommend variants with bleed resistor

Other versions on request

  • Capacity CX 100 nF
Detailed request for product

Details KFA

detailsTechnical Data detailsApprovals and Compliances detailsCAD-Drawings detailsDimension detailsElectrical Data

Ratings IEC

Ratings IEC


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

1 - 10 A @ Ta 40 °C / 250 VAC; 60 Hz

Leakage Current

Leakage Current


The leakage current is an electric current flowing in an undesirable current path.
In EMC filters this is done by the applied Y-capacitors, which are used for noise suppression. Information on the amount and classification of leakage currents are explained in detail and are listed in the data sheets.
Leakage Current

standard < 0.5 mA (250 V / 60 Hz)
medical < 5 µA (250 V / 60 Hz)

Dielectric Strength

Dielectric Strength


Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)

Allowable Operation Temperature

-25 °C to 85 °C

Climatic Category

Climatic Category


Disposition of components in categories for the assessment of mechanical and electrical properties.
Climatic Category

25/085/21 acc. to IEC 60068-1

IP-Protection

IP-Protection


The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP40 acc. to IEC 60529

Protection Class

Protection Class


Class I: with ground; Class II: without ground

Detailed information relating to protection class can also be found in the general product information
Protection against electric shock

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals


Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Quick connect terminals 6.3 x 0.8 mm
Flexible wire AWG18, 150 mm

Panel Thickness S

Panel Thickness S


See details in drawing
Snapper

Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Snap-in: 0.8 mm to 3 mm

Material

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

Appliance inlet/-outlet


Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42
Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

C14 acc. to IEC 60320-1,
UL 498, CSA C22.2 no. 42 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I

Fuseholder

Fuseholder



1.) fuse holder does not include circuit breakers
2.) Details about fuse-links can be found in the catalog under
FusesDetailed information on the fuse holder and fuse drawers can be found in the general product information.
Fuse drawer

1-/2-pole, Shocksafe category PC2 acc. to IEC 60127-6,
for fuse-links 5 x 20 mm

Rated Power Acceptance @ Ta 23 °C

5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per pole

Power Acceptance @ Ta > 23°C

Admissible power acceptance at higher ambient temperature see derating curves

Voltage Selector

Voltage Selector


You can refer to different input voltages
Details about the voltage selector can also be found in the general product information
Voltage Selector

optional, step, 3 pos.

Line Filter

Filter Type


Filter classification according leakage current for easy reading:
Standard: < 0.5 mA
Medizinal: < 0.1 mA
Leakage Current

Standard and Medical Version, IEC 60939, UL 1283, CSA C22.2 no. 8
Technical Details

MTBF

MTBF


The term MTBF is the English acronym Mean Time Between Failure and describes reliability of a component. The operating time of a system can be calculated based on thementioned value of the component. - The higher this value, the more reliable the component.
MTBF

> 1'700'000 h acc. to MIL-HB-217 F

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: KFA

Approval Logo Certificates Certification Body Description
Approval marks ENEC_10
VDE Approvals
VDE Certificate Number: 40004665 (FKE, FKF, FKV, FKW)
Approval marks cURus
UL Approvals
UL UR File Number: E72928 (FKE, FKF, FKV, FKW)
Approval marks CQC
CQC Approvals
CQC CQC Certificate Number: 18001188536, 22001355038

Product standards

Product standards that are referenced

Organization Design Standard Description
Approval marks IEC_Certification_Body Designed according to IEC 60320-1 Appliance couplers for household and similar general purposes
Approval marks IEC_Certification_Body Designed according to IEC 60939 Passive filters for suppressing electromagnetic interference
Approval marks IEC_Certification_Body Designed according to IEC 60127-6 Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Approval marks UL Designed according to UL 498 Standard for Attachment Plugs and Receptacles
Approval marks UL Designed according to UL 1283 Passive filters for suppressing electromagnetic interference
Approval marks CSA_Certification_Body Designed according to CSA C22.2 no. 42 General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Approval marks CSA_Certification_Body Designed according to CSA C22.2 no. 8 Electromagnetic interference (EMI) filters

Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements
Approval marks IEC_Certification_Body Suitable for applications acc. IEC 60601-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance
Approval marks IEC_Certification_Body Suitable for applications acc. IEC 60335-1 Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13.

Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE
CE declaration of conformity
SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA
UKCA declaration of conformity
SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif
RoHS
SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps
China RoHS
SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH
REACH
SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Components V_Lock_Logo SCHURTER AG V-Lock system are based on a matching plug-dose combination. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
Environment_Safety Glow_Wire_Proof
White Paper Glow wire test
SCHURTER AG Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.
Environment_Safety Medical
Medical Equipment
SCHURTER AG Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

020060160000001509
LOADING...

Dimension [mm]

Filter with voltage selector
KFA_Massbild_Mehransicht
Screw-on mounting from rear side
KFA_Massbild_Schraub_Rückseite
Snap-in mounting
KFA_snap_Massbild
Screw-on mounting from front side with ground line choke
KFA_Massbild_Schraubbefestigung_von_Frontseite_mit_Erdleiterdrossel
Screw-on mounting from front side
KFA_Massbild_Schraubmontage_von_Frontseite_neu

Diagrams

Standard version
with voltage selector
KFA_KFC_Schaltbild_Standard_mit_SPW
x) external connection to be made by the customer


1) Line
2) Load
Standard version
without voltage selector
KFA_Schaltbild_Standard_ohne_SPW
1) Line
2) Load
Medical Version (M5)
with voltage selector
KFA_KFC_Schaltbild_M5_mit_SPW
x) external connection to be made by the customer


1) Line
2) Load
Medical Version (M5)
without voltage selector
KFA_ohne_SPW_Schaltbild_medical (M5)
1) Line
2) Load
Medical Version (M80)
with voltage selector
KFA_Schaltbild_mit_SPW_M80
x) external connection to be made by the customer


1) Line
2) Load
Medical Version (M80)
without voltage selector
KFA_Schaltbild_ohne_SPW_M80
1) Line
2) Load
Standard version with ground line choke
KFA_Schaltbild_Standard_mit_Erdleiterdrossel
1) Line
2) Load
Medical Version (M5) with ground line choke
KFA_Schaltbild_Medizinal_(M5)_mit_Erdleiterdrossel
1) Line
2) Load
Medical Version (M80) with ground line choke
KFA_Schaltbild_Medizinalversion_(M80)_mit_Erdleiterdrossel
1) Line
2) Load

Derating Curves

1-pole
Admissible power acceptance in Watt
Derating_2W_1pol_GST
Ambient air temperature Ta °C
2-pole
Admissible power acceptance in Watt per pole
Derating_1.6W_2pol_GST
Ambient air temperature Ta °C

Technical Data of Filter-Components

Rated Current [A] Filter-Type Inductance L1/L2 [mH] Inductance L3 [mH] Capacitance CX [nF] Capacitance CY [nF] R [MΩ]
1 Standard version 2 x 10 - 68 2.2 -
2 Standard version 2 x 4 - 68 2.2 -
4 Standard version 2 x 1.5 - 68 2.2 -
6 Standard version 2 x 0.8 - 68 2.2 -
10 Standard version 2 x 0.3 - 68 2.2 -
1 Standard Version with Ground Line Choke 2 x 10 0.6 100 2.2 -
2 Standard Version with Ground Line Choke 2 x 4 0.6 100 2.2 -
4 Standard Version with Ground Line Choke 2 x 1.5 0.6 100 2.2 -
6 Standard Version with Ground Line Choke 2 x 0.8 0.6 100 2.2 -
10 Standard Version with Ground Line Choke 2 x 0.3 0.15 100 2.2 -
1 Medical Version (M5) 2 x 10 - 68 - 1
2 Medical Version (M5) 2 x 4 - 68 - 1
4 Medical Version (M5) 2 x 1.5 - 68 - 1
6 Medical Version (M5) 2 x 0.8 - 68 - 1
10 Medical Version (M5) 2 x 0.3 - 68 - 1
1 Medical Version (M80) 2 x 10 - 68 0.47 1
2 Medical Version (M80) 2 x 4 - 68 0.47 1
4 Medical Version (M80) 2 x 1.5 - 68 0.47 1
6 Medical Version (M80) 2 x 0.8 - 68 0.47 1
10 Medical Version (M80) 2 x 0.3 - 68 0.47 1
1 Medical Version (M5) with Ground Line Choke 2 x 10 0.6 100 - 1
2 Medical Version (M5) with Ground Line Choke 2 x 4 0.6 100 - 1
4 Medical Version (M5) with Ground Line Choke 2 x 1.5 0.6 100 - 1
6 Medical Version (M5) with Ground Line Choke 2 x 0.8 0.6 100 - 1
10 Medical Version (M5) with Ground Line Choke 2 x 0.3 0.15 100 - 1

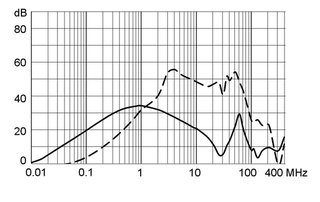

Attenuation Loss

Standard version

1 A
KFA_KFB1_KFB2_CD_CE_CG_KFC_01_st
2 A
KFA_KFB1_KFB2_CD_CE_CG_KFC_02_st
4 A
KFB1_KFA_KFB2_CD_CE_CG_KFC_04_st
6 A
KFA_KFB1_KFB2_CD_CE_CG_KFC_06_st
10 A
KFA_KFB1_KFB2_CD_CE_CG_KFC_10_st

Medical version (M5)

1 A
KFA_KFB2_CD_CE_CG_KFC_01_m
2 A
KFA_KFB2_CD_CE_CG_KFC_02_m
4 A
KFA_KFB1_KFB2_CD_CE_CG_KFC_04_m
6 A
KFA_KFB2_CD_CE_CG_KFC_06_m
10 A
KFA_KFB2_CD_CE_CG_KFC_10_m

Medical version (M80)

1 A
KFA_Einfügungsdämpfung_Medical_M80_1A
2 A
KFA_Einfügungsdämpfung_Medical_M80_2A
4 A
KFA_Einfügungsdämpfung_M80_4A
6 A
KFA_Einfügungsdämpfung_M80_6A
10 A
KFA_Einfügungsdämpfung_M80_10A

Standard with Earth Line Choke

1 A
KFA_Einfügungsdämpfungskurve_Standard_mit_EDL_1A
2 A
KFA_Einfügungsdämpfungskurve_Standard_mit_EDL_2A
4 A
KFA_Einfügungsdämpfungskurve_Standard_mit_EDL_4A
6 A
KFA_Einfügungsdämpfungskurve_Standard_mit_EDL_6A
10 A
KFA_Einfügungsdämpfungskurve_Standard_mit_EDL_10A

Medical (M5) with Earth Line Choke

1 A
KFA_Einfügungsdämpfungskurve_M5_mit_EDL_1A
2 A
KFA_Einfügungsdämpfungskurve_M5_mit_EDL_2A
4 A
KFA_Einfügungsdämpfungskurve_M5_mit_EDL_4A
6 A
KFA_Einfügungsdämpfungskurve_M5_mit_EDL_6A
10 A
KFA_Einfügungsdämpfungskurve_M5_mit_EDL_10A

Short Table of Variants KFA Open complete table KFA

Rated Current [A] Filter-Type Panel mounting Order Number
Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

 Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

1 Standard version Snap-in 4301.6011 ...
1 Standard version Snap-in 4301.6001 ...
2 Standard version Snap-in 4301.6012 ...
2 Standard version Snap-in 4301.6002 ...
4 Standard version Snap-in 4301.6013 ...
4 Standard version Snap-in 4301.6003 ...
6 Standard version Snap-in 4301.6014 ...
6 Standard version Snap-in 4301.6004 ...
10 Standard version Snap-in 4301.6015 ...
10 Standard version Snap-in 4301.6005 ...
1 Standard version Screw 4301.7311 ...
1 Standard version Screw 4301.7301 ...
1 Standard version Screw 4301.7001 ...
1 Standard version Screw 4301.5011 ...
1 Standard version Screw 4301.5051 ...
1 Standard version Screw 4301.5001 ...
1 Standard version Screw 4301.5041 ...
2 Standard version Screw 4301.7002 ...
2 Standard version Screw 4301.5012 ...
2 Standard version Screw 4301.5052 ...
2 Standard version Screw 4301.5002 ...
2 Standard version Screw 4301.5042 ...
4 Standard version Screw 4301.7013 ...
4 Standard version Screw 4301.7003 ...
4 Standard version Screw 4301.5013 ...
4 Standard version Screw 4301.5053 ...
4 Standard version Screw 4301.5003 ...
4 Standard version Screw 4301.5043 ...
6 Standard version Screw 4301.7014 ...
6 Standard version Screw 4301.7004 ...
6 Standard version Screw 4301.5014 ...
6 Standard version Screw 4301.5054 ...
6 Standard version Screw 4301.5004 ...
6 Standard version Screw 4301.5044 ...
10 Standard version Screw 4301.7015 ...
10 Standard version Screw 4301.7005 ...
10 Standard version Screw 4301.5015 ...
10 Standard version Screw 4301.5055 ...
10 Standard version Screw 4301.5005 ...
10 Standard version Screw 4301.5045 ...
1 Standard Version with Ground Line Choke Screw 4301.8050 ...
2 Standard Version with Ground Line Choke Screw 4301.8051 ...
4 Standard Version with Ground Line Choke Screw 4301.8052 ...
6 Standard Version with Ground Line Choke Screw 4301.8053 ...
10 Standard Version with Ground Line Choke Screw 4301.8054 ...
1 Medical Version (M5) Snap-in 4301.6201 ...
2 Medical Version (M5) Snap-in 4301.6203 ...
4 Medical Version (M5) Snap-in 4301.6205 ...
6 Medical Version (M5) Snap-in 4301.6307 ...
6 Medical Version (M5) Snap-in 4301.6207 ...
1 Medical Version (M5) Screw 4301.7201 ...
1 Medical Version (M5) Screw 4301.5241 ...
2 Medical Version (M5) Screw 4301.7203 ...
2 Medical Version (M5) Screw 4301.5203 ...
2 Medical Version (M5) Screw 4301.5243 ...
4 Medical Version (M5) Screw 4301.7205 ...
4 Medical Version (M5) Screw 4301.5205 ...
4 Medical Version (M5) Screw 4301.5245 ...
6 Medical Version (M5) Screw 4301.7207 ...
6 Medical Version (M5) Screw 4301.5217 ...
6 Medical Version (M5) Screw 4301.5207 ...
6 Medical Version (M5) Screw 4301.5247 ...
10 Medical Version (M5) Screw 4301.7209 ...
10 Medical Version (M5) Screw 4301.5209 ...
4 Medical Version (M80) Snap-in 4301.6206 ...
1 Medical Version (M80) Screw 4301.7202 ...
2 Medical Version (M80) Screw 4301.7204 ...
2 Medical Version (M80) Screw 4301.5204 ...
2 Medical Version (M80) Screw 4301.5244 ...
4 Medical Version (M80) Screw 4301.7206 ...
4 Medical Version (M80) Screw 4301.5206 ...
6 Medical Version (M80) Screw 4301.7208 ...
6 Medical Version (M80) Screw 4301.5208 ...
10 Medical Version (M80) Screw 4301.7200 ...
10 Medical Version (M80) Screw 4301.5200 ...
1 Medical Version (M5) with Ground Line Choke Screw 4301.8055 ...
2 Medical Version (M5) with Ground Line Choke Screw 4301.8056 ...
4 Medical Version (M5) with Ground Line Choke Screw 4301.8057 ...
6 Medical Version (M5) with Ground Line Choke Screw 4301.8058 ...
10 Medical Version (M5) with Ground Line Choke Screw 4301.8059 ...

Wire length: 150 mm

The fuse drawer is not included and must be ordered separately (see required accessory).
020060160000001509

References / Document Downloads

LOADING...

References KFA

Alternative: version without line filter (1)

[Swipe to the left and right for more options]

Mating Components KFA

Mating Outlets/Connectors (7)

[Swipe to the left and right for more options]

4787
4787_s_w

4787, Mounting: Screw-on mounting, Appliance Outlet: IEC Solder terminals, 10 A, Suitable for appliances with protection class I

5091
5091_Katalogbild_1

IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal

4782
4782_Katalogbild

4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4785
4785_Katalogbild_01

4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4300-06
4300-06_Katalogbild_1

4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4781
4781_Katalogbild_01

4781 Mounting: Power Cord, Cable, Connector: IEC C15

4784
4784_Katalogbild_01

4784 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C15

Mating Outlets/Connectors shuttered (2)

[Swipe to the left and right for more options]

4783
4783_Rewireable_Connector_C13_black_Katalogbild

4783 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

VAC13KS
V-Lock_Geraetesteckdose

VAC13KS, Overview, V-Lock cord retaining, diverse Connector IEC C13, diverse, black

Accessories KFA

Required Accessory (1)

[Swipe to the left and right for more options]

Fusedrawer 2
KEA_KFA_KM_Schublade_Fingergrip_mit_SPW

Fusedrawer for Fuse Links 5x20 mm, with or without Voltage Selector Insert

Accessories (3)

[Swipe to the left and right for more options]

Wire Harness
Kabelende_EC11_Ring_M4_M5

Wire harness for SCHURTER products

RC320
RC320-13_Rear_Cover_DG12_Katalogbild_16

Rear Cover for Power Entry Module

Cord retaining kits
Sicherungsbuegel_Set

Cord retaining strain relief


27.02.2025

en prod By changing the catalog version (Desktop <> Mobile), the system is resetting the chosen filters
