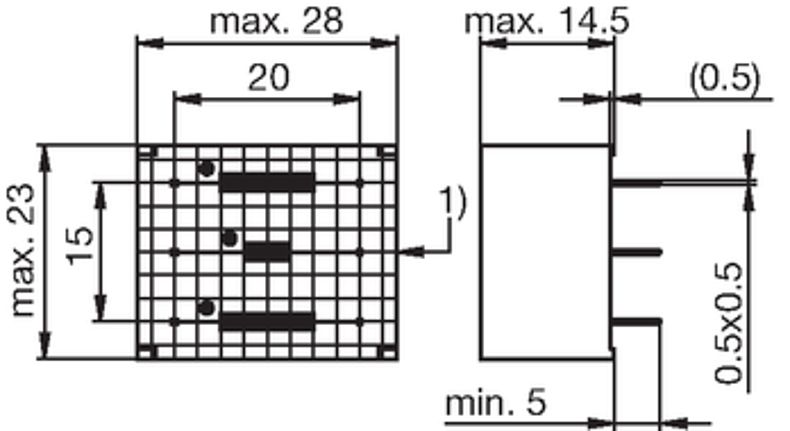

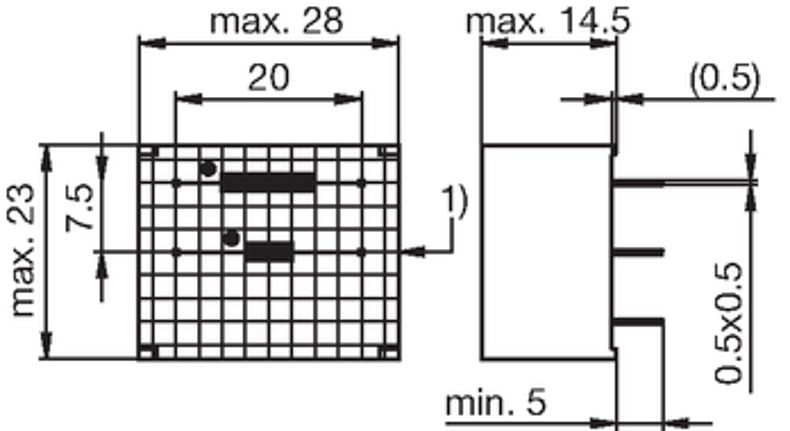

Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.
7 Variants
Description
- High insulation rating (>2.2 kVAC) between the primary and the secondary windings
- Small coupling capacitances between primary and secondary windings limit transient feedback from the power supply side to the control electronics
- Cost optimized design
- The defined partial discharge voltage guarantees an effecively unlimited serviceable live
Applications
- Galvanic separation of drive- and power-circuit
- Mainly used in ignition circuits with Thyristors, Triacs, power transistors and IGBT's
- DC/DC Converters
- Line coupling transformers in high speed data transmission
Rated voltage
up to 500 VAC
Voltage Time Integral
200 - 500 Vµs
Pulse Rise Time
0.5 - 1.5 µs
Turns Ratio
1:1, 1:1:1, 3:1:1
Terminal Type
THT
Weight
7 - 15 g
Material
UL 94V-0
Sealing Compound
UL 94V-0
Climatic Category
25/100/21 acc. to IEC 60068-1
Allowable Operation Temp.
-25 °C to 70 °C
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Short Table of Variants IL Open complete table IL
| Turns Ratio | Tr [μs] | Iign [A] |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |
|---|---|---|---|---|---|---|---|
| 1:1 | 1 | 0.1 | IL-11-0001 | ... | |||
| 1:1 | 1 | 0.25 | IL-11-0002 | ... | |||
| 1:1 | 1 | 0.25 | IL-21-0001 | ... | |||
| 1:1:1 | 0.5 | 0.1 | IL-10-0001 | ... | |||
| 1:1:1 | 1 | 0.25 | IL-10-0003 | ... | |||
| 1:1:1 | 1.5 | 0.25 | IL-20-0001 | ... | |||
| 3:1:1 | 0.7 | 0.1 | IL-10-0002 | ... |
30.09.2024
