Description

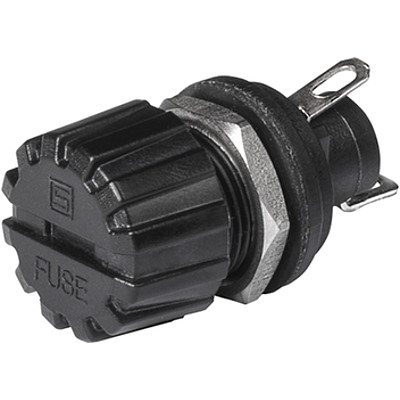

- Screw type fuse carrier
Unique Selling Proposition
- Very compact size
- Robust construction for harsh environment
- High ingress protection rating
- Qualified for high altitude operation
Applications
- Applications where high reliability and availability is required
- Avionics
- Offshore
- Ground Equipment
- Industrial appliances
Shock-Safe Category
PC1
Fuse-Link
3 x 10 mm (DRM-A)
Mounting
Panel mount, Rear Side
Attachment
Fixing Nut
Terminal
Solder
Rated Voltage
250 VAC/VDC (up to 2'000m a.s.l.), 125VAC/VDC (up to 15'240m a.s.l.)
Rated current
8 A (UL/CSA)
Rated Power Acceptance IEC
1.6 W / 6.3 A @ Ta 23 °C
Admissible current consumption at higher ambient temperature see derating curve
Degree of Protection
IP67 (requires tightening torque of ≥ 80 Ncm for the fixing nut and ≥ 40 Ncm for the fuse carrier)
Protection Class
Suitable for appliances with protection class I acc. to IEC 61140
Admissible Ambient Temp.
-55 °C to 85 °C
Climatic Category
55/085/21 acc. to IEC 60068-1
Material: Socket
Thermoplastic, black, UL 94V-0
Material: Terminals
Tin-Plated Copper
Unit Weight
6.5 g
Storage Conditions
0 °C to 60 °C, max. 70% r.h.
Product Marking
, Type, Certification marks
Soldering Methods
Iron
Soldering Profile
Solderability
350 °C / 3 sec acc. to IEC 60068-2-20
Resistance to Soldering Heat
350 °C / 5 sec based on IEC 60068-2-20
Contact Resistance
≤ 10 mΩ at 100 mA acc. to IEC 60127-6
Dielectric Strength
> 1.5 kV between live parts
(50 Hz: 1 min)
Impulse Withstand Voltage
> 2.5 kV between live parts
Insulation Resistance
≥ 20 MΩ between live parts
(500 VDC: 1 min)
Overvoltage Category
II acc. to IEC 60664-1
Pollution Degree
2 acc. to IEC 60664-1
Resistance to Vibration
acc. to IEC 60068-2-6, test Fc, (Shock 10 g, 1.5 mm, 10-2000 Hz, 10 cyc.), (NF C 20-706)
Mechanical Shock
acc. to IEC 60068-2-27, (Shock 100 g, half-sine, 2 ms, each direction 3 times)
Mechanical Shock (Bump)
acc. to IEC 60068-2-29, (Shock 40 g, half-sine, 2 ms, 1000 repetition)
Salt Mist
acc. to IEC 60068-2-11, (96 h)
Damp Heat
acc. to IEC 60068-2-78, (40 °C, 93% r.h., 21 days)
Admissible Torque on Fixing Nut
max 600 Ncm
Panel Thickness
1.0 - 2.0 mm
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: FRM-A
| Approval Logo | Certificates | Certification Body | Description |
|---|---|---|---|
|
UL | UR File Number: E39328 |
Product standards
Product standards that are referenced
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Designed according to | UL 4248-1 | Industrial Control Equipment |
|
Designed according to | CSA C22.2 no. 4248.1 | Industrial Control Equipment |
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
|
|
Suitable for applications acc. | IEC 60335-1 | Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13. |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. | |
|
SCHURTER AG | The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. | |
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | SCHURTER strives to offer our customers halogen free products. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. | |
|
SCHURTER AG | Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13. |
