FMBC EP 2-stage filter for 3-phase systems

Series: FMBC EP

2-stage filter for 3-phase systems

56 Variants

Approvals and Compliances

CAD

Microsite EMC-Service

Description

Terminals for three phases and ground
2 stage
Very high attenuation
Industrial or low leakage current versions

Unique Selling Proposition

Compact design with small footprint
Double-stage filter for high attenuation
High voltage versions
Wide temperature range

Applications

Voltage rating 520 or 760 VAC for various applications
Protection against interference voltage from the mains
Especially designed for industrial applications such as: Frequency Converters, Stepper Motor Drives, UPS-Systems, Inverters
Variants Machine Safety suitable for machine applications according to IEC 60204-1
Suitable for use in equipment according to IEC/UL 62368-1

Detailed request for product

Details FMBC EP

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Rated Current

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

16 - 230 A

Rated voltage

Rated Current

520/760 VAC, 50/60 Hz

Approval for

Approvals indicate the conformity of the products with the national testing institution requirements by listing of the relevant approval logos.
The link leads you to the search mask where you can query for certificates of the selected products.
Approvals
Detailed information about Approvals will be documented in the general product informations.
Details about Approvals

16 - 230 A @ 40 °C / 520/760 VAC; 50/60 Hz

Overload Current

1.5 x Ir for 1 minute, per hour

Dielectric Strength

Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 520V / 2.25 kVDC between L-L
> 520V / 2.75 kVDC between L-PE

Test voltage 2 sec

Number of Filter Stages

Filter Stages

Quality of a filter

2-stage

Weight

1 - 5.4 kg

Material: Housing

Metal

Sealing Compound

UL 94V-0

Mounting

Screw-on mounting on chassis

Terminal

Screw clamps

Operating Temperature

-40 °C to 100 °C

Climatic Category

Disposition of components in categories for the assessment of mechanical and electrical properties.
Climatic Category

40/100/21 acc. to IEC 60068-1

Degree of Protection

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

IP20 acc. to IEC 60529

Protection Class

Class I: with ground; Class II: without ground

Detailed information relating to protection class can also be found in the general product information
Protection against electric shock

Suitable for appliances with protection class I acc. to IEC 61140

MTBF

The term MTBF is the English acronym Mean Time Between Failure and describes reliability of a component. The operating time of a system can be calculated based on thementioned value of the component. - The higher this value, the more reliable the component.
MTBF

> 200'000 h acc. to MIL-HB-217 F

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: FMBC EP

Approval Logo	Certificates	Certification Body	Description
	VDE Approvals	VDE	Certificate Number: 40052415
	UL Approvals	UL	UR File Number: E495089

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60939	Passive filters for suppressing electromagnetic interference
Designed according to	UL 60939-3	Passive filters for suppressing electromagnetic interference
Designed according to	CSA C22.2 no. 8	Electromagnetic interference (EMI) filters

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

Dimension [mm]

	Case 5A-4

	Case 5A-10

	Case 5B-10

	Case 5B-16

	Case 4C-25

	Case 4C-50

	Case 4D

Diagrams

	Industrial version

	1) Line 2) Load

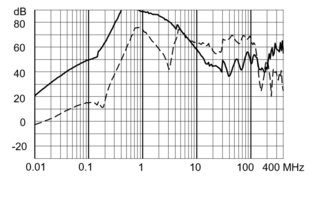

Attenuation Loss

Industrial version

	16 A / 520 V

	25 A / 520 V

	36 A / 520 V

	50 A / 520 V

	64 A / 520 V

	80 A / 520 V

	110 A / 520 V

	180 A / 520 V

	230 A / 520 V

	16 A / 760 V

	25 A / 760 V

	36 A / 760 V

	50 A / 760 V

	64 A / 760 V

	80 A / 760 V

	110 A / 760 V

	180 A / 760 V

	230 A / 760 V

Low leakage current version

	16 A / 520 V

	25 A / 520 V

	36 A / 520 V

	50 A / 520 V

	64 A / 520 V

	16 A / 760 V

	25 A / 760 V

	36 A / 760 V

	50 A / 760 V

	64 A / 760 V

Short Table of Variants FMBC EP Open complete table FMBC EP

Rated Current @ Ta 40°C [A]	Rated Voltage [VAC]	Filter Type	Order Number	...

16	520	Industrial version	3-123-459	...
25	520	Industrial version	3-123-460	...
36	520	Industrial version	3-123-461	...
50	520	Industrial version	3-123-482	...
64	520	Industrial version	3-123-483	...
80	520	Industrial version	3-123-484	...
110	520	Industrial version	3-123-485	...
180	520	Industrial version	3-123-486	...
230	520	Industrial version	3-123-487	...
16	520	Low leakage current version	3-123-488	...
25	520	Low leakage current version	3-123-489	...
36	520	Low leakage current version	3-123-490	...
50	520	Low leakage current version	3-123-491	...
64	520	Low leakage current version	3-123-492	...
16	760	Industrial version	3-123-493	...
25	760	Industrial version	3-123-494	...
36	760	Industrial version	3-123-495	...
50	760	Industrial version	3-123-496	...
64	760	Industrial version	3-123-497	...
80	760	Industrial version	3-123-498	...
110	760	Industrial version	3-123-499	...
180	760	Industrial version	3-123-500	...
230	760	Industrial version	3-123-501	...
16	760	Low leakage current version	3-123-502	...
25	760	Low leakage current version	3-123-503	...
36	760	Low leakage current version	3-123-504	...
50	760	Low leakage current version	3-123-505	...
64	760	Low leakage current version	3-123-506	...
16	520	Industrial version	3-138-321	...
25	520	Industrial version	3-138-322	...
36	520	Industrial version	3-138-323	...
50	520	Industrial version	3-138-324	...
64	520	Industrial version	3-138-325	...
80	520	Industrial version	3-138-326	...
110	520	Industrial version	3-138-327	...
180	520	Industrial version	3-138-328	...
230	520	Industrial version	3-138-329	...
16	520	Low leakage current version	3-138-330	...
25	520	Low leakage current version	3-138-331	...
36	520	Low leakage current version	3-138-332	...
50	520	Low leakage current version	3-138-333	...
64	520	Low leakage current version	3-138-334	...
16	760	Industrial version	3-138-335	...
25	760	Industrial version	3-138-336	...
36	760	Industrial version	3-138-337	...
50	760	Industrial version	3-138-338	...
64	760	Industrial version	3-138-339	...
80	760	Industrial version	3-138-340	...
110	760	Industrial version	3-138-341	...
180	760	Industrial version	3-138-342	...
230	760	Industrial version	3-138-343	...
16	760	Low leakage current version	3-138-344	...
25	760	Low leakage current version	3-138-345	...
36	760	Low leakage current version	3-138-346	...
50	760	Low leakage current version	3-138-347	...
64	760	Low leakage current version	3-138-348	...
1) Leakage current according IEC 60939-1 2) Maximum conductor cross section (wire gauge) to be used; a comparative table for AWG and mm² values can be found in the general product information␍https://www.schurter.com/en/FAQ#10

Packaging unit

1 Pcs

Table of Variants FMBC EP

Rated Current @ Ta 40°C [A]	Rated Voltage [VAC]	Filter Type	Machine Safety	Power Dissipation [W]	Contact Resistance [mΩ]	Leakage Current [mA] @ 440V, 60Hz 1)	Weight [kg]	Screw clamps [mm2] 2)	Housing	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form

16	520	Industrial version		1.6	6.2	2.88	1 kg	4	5A-4	3-123-459	1
25	520	Industrial version		2.1	3.4	3.58	1.2 kg	10	5A-10	3-123-460	1
36	520	Industrial version		2.2	1.7	3.75	1.4 kg	10	5B-10	3-123-461	1
50	520	Industrial version		4.2	1.7	3.75	1.4 kg	10	5B-10	3-123-482	1
64	520	Industrial version		6.9	1.7	3.75	1.7 kg	16	5B-16	3-123-483	1
80	520	Industrial version		7.7	1.2	3.77	2.2 kg	25	4C-25	3-123-484	1
110	520	Industrial version		6.1	0.5	3.77	2.7 kg	50	4C-50	3-123-485	1
180	520	Industrial version		12.9	0.4	3.91	4.6 kg	95	4D	3-123-486	1
230	520	Industrial version		15.8	0.3	3.91	5.4 kg	95	4D	3-123-487	1
16	520	Low leakage current version		1.6	6.2	0.8	1 kg	4	5A-4	3-123-488	1
25	520	Low leakage current version		2.1	3	0.8	1.2 kg	10	5A-10	3-123-489	1
36	520	Low leakage current version		2.2	2.4	0.8	1.4 kg	10	5B-10	3-123-490	1
50	520	Low leakage current version		4.2	2.4	0.8	1.4 kg	10	5B-10	3-123-491	1
64	520	Low leakage current version		6.9	0.9	0.8	1.7 kg	16	5B-16	3-123-492	1
16	760	Industrial version		1.6	6.2	1.64	1 kg	4	5A-4	3-123-493	1
25	760	Industrial version		2.1	3.4	1.64	1.2 kg	10	5A-10	3-123-494	1
36	760	Industrial version		2.2	1.7	1.64	1.4 kg	10	5B-10	3-123-495	1
50	760	Industrial version		4.2	1.7	1.64	1.4 kg	10	5B-10	3-123-496	1
64	760	Industrial version		6.9	1.7	1.64	1.7 kg	16	5B-16	3-123-497	1
80	760	Industrial version		7.7	1.2	2.21	2.2 kg	25	4C-25	3-123-498	1
110	760	Industrial version		6.1	0.5	2.21	2.7 kg	50	4C-50	3-123-499	1
180	760	Industrial version		12.9	0.4	3.03	4.6 kg	95	4D	3-123-500	1
230	760	Industrial version		15.8	0.3	3.03	5.1 kg	95	4D	3-123-501	1
16	760	Low leakage current version		1.6	6.2	1.1	1 kg	4	5A-4	3-123-502	1
25	760	Low leakage current version		2.1	3	1.1	1.2 kg	10	5A-10	3-123-503	1
36	760	Low leakage current version		2.2	2.4	1.1	1.4 kg	10	5B-10	3-123-504	1
50	760	Low leakage current version		4.2	2.4	1.1	1.4 kg	10	5B-10	3-123-505	1
64	760	Low leakage current version		6.9	0.9	1.1	1.7 kg	16	5B-16	3-123-506	1
16	520	Industrial version	•	1.6	6.2	2.88	1 kg	4	5A-4	3-138-321	1
25	520	Industrial version	•	2.1	3.4	3.58	1.2 kg	10	5A-10	3-138-322	1
36	520	Industrial version	•	2.2	1.7	3.75	1.4 kg	10	5B-10	3-138-323	1
50	520	Industrial version	•	4.2	1.7	3.75	1.4 kg	10	5B-10	3-138-324	1
64	520	Industrial version	•	6.9	1.7	3.75	1.7 kg	16	5B-16	3-138-325	1
80	520	Industrial version	•	7.7	1.2	3.77	2.2 kg	25	4C-25	3-138-326	1
110	520	Industrial version	•	6.1	0.5	3.77	2.7 kg	50	4C-50	3-138-327	1
180	520	Industrial version	•	12.9	0.4	3.91	4.6 kg	95	4D	3-138-328	1
230	520	Industrial version	•	15.8	0.3	3.91	5.4 kg	95	4D	3-138-329	1
16	520	Low leakage current version	•	1.6	6.2	0.8	1 kg	4	5A-4	3-138-330	1
25	520	Low leakage current version	•	2.1	3	0.8	1.2 kg	10	5A-10	3-138-331	1
36	520	Low leakage current version	•	2.2	2.4	0.8	1.4 kg	10	5B-10	3-138-332	1
50	520	Low leakage current version	•	4.2	2.4	0.8	1.4 kg	10	5B-10	3-138-333	1
64	520	Low leakage current version	•	6.9	0.9	0.8	1.7 kg	16	5B-16	3-138-334	1
16	760	Industrial version	•	1.6	6.2	1.64	1 kg	4	5A-4	3-138-335	1
25	760	Industrial version	•	2.1	3.4	1.64	1.2 kg	10	5A-10	3-138-336	1
36	760	Industrial version	•	2.2	1.7	1.64	1.4 kg	10	5B-10	3-138-337	1
50	760	Industrial version	•	4.2	1.7	1.64	1.4 kg	10	5B-10	3-138-338	1
64	760	Industrial version	•	6.9	1.7	1.64	1.7 kg	16	5B-16	3-138-339	1
80	760	Industrial version	•	7.7	1.2	2.21	2.2 kg	25	4C-25	3-138-340	1
110	760	Industrial version	•	6.1	0.5	2.21	2.7 kg	50	4C-50	3-138-341	1
180	760	Industrial version	•	12.9	0.4	3.03	4.6 kg	95	4D	3-138-342	1
230	760	Industrial version	•	15.8	0.3	3.03	5.1 kg	95	4D	3-138-343	1
16	760	Low leakage current version	•	1.6	6.2	1.1	1 kg	4	5A-4	3-138-344	1
25	760	Low leakage current version	•	2.1	3	1.1	1.2 kg	10	5A-10	3-138-345	1
36	760	Low leakage current version	•	2.2	2.4	1.1	1.4 kg	10	5B-10	3-138-346	1
50	760	Low leakage current version	•	4.2	2.4	1.1	1.4 kg	10	5B-10	3-138-347	1
64	760	Low leakage current version	•	6.9	0.9	1.1	1.7 kg	16	5B-16	3-138-348	1
1) Leakage current according IEC 60939-1 2) Maximum conductor cross section (wire gauge) to be used; a comparative table for AWG and mm² values can be found in the general product information␍https://www.schurter.com/en/FAQ#10
