Description FMBB EP

Description

  • Line filter in standard and medical version
  • 2 stage
  • Compact design
  • Very light due to partial potting

Unique Selling Proposition

  • Excellent differential and common-mode attenuation
  • Broad band attenuation
  • Completely closed steel housing
  • Wide temperature range

Characteristics

  • Designed for current applications of 1 - 36 A
  • Protection against interference voltage from the mains
    Possible interferences generated in the equipment are strongly attenuated
  • Especially designed for industrial applications such as: Frequency Converters, Stepper Motor Drives, UPS-Systems, Inverters
  • Suitable for use in equipment according to IEC/UL 62368-1
    Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)
Detailed request for product

Details FMBB EP

detailsTechnical Data detailsApprovals and Compliances detailsDimension detailsElectrical Data

Ratings IEC

Ratings IEC


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

1 - 36 A @ Ta 40 °C / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL


The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

1 - 36 A @ Ta 40 °C / 125/250 VAC; 60 Hz

Leakage Current

Leakage Current


The leakage current is an electric current flowing in an undesirable current path.
In EMC filters this is done by the applied Y-capacitors, which are used for noise suppression. Information on the amount and classification of leakage currents are explained in detail and are listed in the data sheets.
Leakage Current

standard < 6.9 mA (250 V / 50 Hz)
low leakage current < 0.15 mA (250 V / 50 Hz)
medical (M5) < 5 µA (250 V / 50 Hz)
medical (M80) < 80 µA (250 V / 50 Hz)

Dielectric Strength

Dielectric Strength


Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

1.7 kVDC between L-N
2.7 kVDC between L/N-PE
Test voltage (2 sec)

Allowable Operation Temperature

-40 °C to 100 °C

Climatic Category

Climatic Category


Disposition of components in categories for the assessment of mechanical and electrical properties.
Climatic Category

40/100/21 acc. to IEC 60068-1

IP-Protection

IP-Protection


The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

rear-side IP20 IEC 60529

Protection Class

Protection Class


Class I: with ground; Class II: without ground

Detailed information relating to protection class can also be found in the general product information
Protection against electric shock

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals


Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Quick connect terminal 6.3 x 0.8 mm
Bolt and nut M4

Material

Nickel plated steel

Line Filter

Filter Type


Filter classification according leakage current for easy reading:
Standard: < 0.5 mA
Medizinal: < 0.1 mA
Leakage Current

Standard and Medical Version, IEC 60939, UL 60939-3, CSA C22.2 no. 8
Technical Details

MTBF

MTBF


The term MTBF is the English acronym Mean Time Between Failure and describes reliability of a component. The operating time of a system can be calculated based on thementioned value of the component. - The higher this value, the more reliable the component.
MTBF

> 200'000 h acc. to MIL-HB-217 F

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.


Approval Reference Type: FMBB EP

Approval Logo Certificates Certification Body Description
Approval marks ENEC_10
VDE Approvals
VDE Certificate Number: 40051449
Approval marks cURus
UL Approvals
UL UR File Number: E495089

Product standards

Product standards that are referenced

Organization Design Standard Description
Approval marks IEC_Certification_Body Designed according to IEC 60939 Passive filters for suppressing electromagnetic interference
Approval marks IEC_Certification_Body Designed according to IEC 60127-6 Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Approval marks UL Designed according to UL 60939-3 Passive filters for suppressing electromagnetic interference
Approval marks CSA_Certification_Body Designed according to CSA C22.2 no. 42 General Use Receptacles, Attachment Plugs, and Similar Wiring Devices
Approval marks CSA_Certification_Body Designed according to CSA C22.2 no. 8 Electromagnetic interference (EMI) filters

Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements
Approval marks IEC_Certification_Body Suitable for applications acc. IEC 60601-1 Medical electrical equipment - Part 1: General requirements for basic safety and essential performance

Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Approval marks CE
CE declaration of conformity
SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
Approval marks Zulassung_Symbol_UKCA
UKCA declaration of conformity
SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
Environment_Safety RoHS_Logo_color_CMYK_tif
RoHS
SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps
China RoHS
SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH
REACH
SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
Environment_Safety Medical
Medical Equipment
SCHURTER AG Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

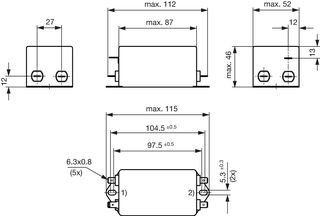

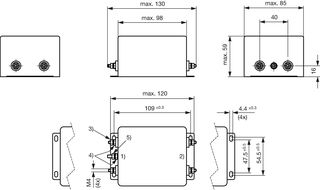

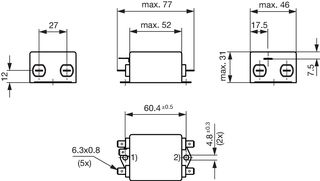

Dimension [mm]

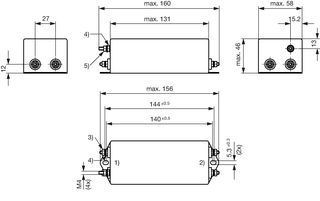

Case 09 with quick connect terminals
FMBB_NEO_Massbild_Gehäuse_09_Steck
1) Line
2) Load

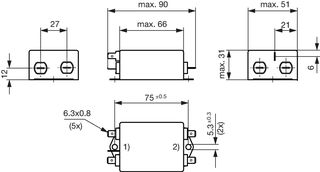

Case MB with bolt and nut M4
FMBB_NEO_Massbild_Gehäuse_MB_Schraub
1) Line
2) Load
3) Nut torque 0.8...1 Nm, keep lock-nut fastened
4) Lock-nut do not unscrew
5) PE: M4x16, 1.2...1.5 Nm, keep lock-nut fastened
Case MC with quick connect terminals
FMBB_NEO_Massbild_Gehäuse_MC_Steck
1) Line
2) Load
Case UB with quick connect terminals
FMBB_NEO_Massbild_Gehäuse_UB_Steck
1) Line
2) Load

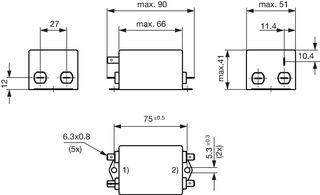

Case ME with quick connect terminals
FMBB_NEO_Massbild_Gehäuse_ME_Steck
1) Line
2) Load
Case MF with bolt and nut M4
FMBB_NEO_Massbild_Gehäuse_MF_Schraub
1) Line
2) Load
3) Nut torque 0.8...1 Nm, keep lock-nut fastened
4) Lock-nut do not unscrew
5) PE: M4x16, 1.2...1.5 Nm, keep lock-nut fastened

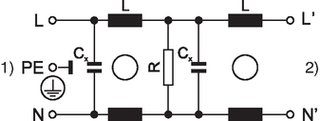

Diagrams

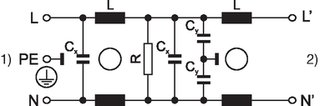

Design C, D Standard and medical M80

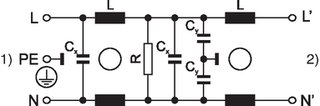

FMBB_NEO_Schaltbild_Design_C_Standard
1) Line, 2) Load
Design C, D Medical M5
FMBB_NEO_Schaltbild_Design_C_M5
1) Line, 2) Load
Medical M80
FMBB_EP_Schaltbild_M80
1) Line, 2) Load

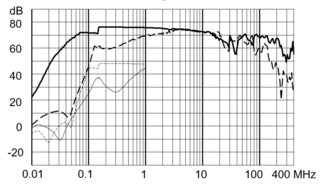

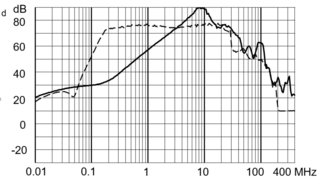

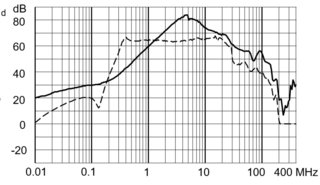

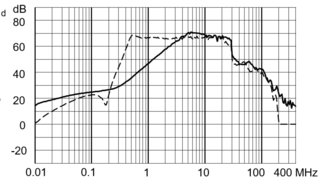

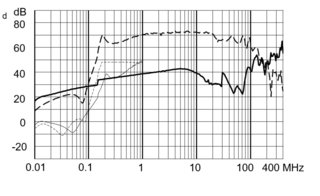

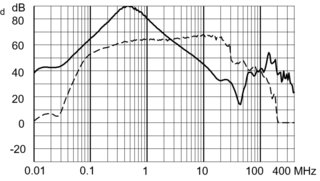

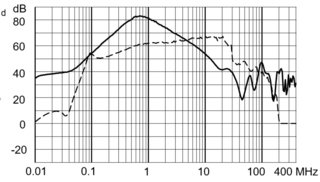

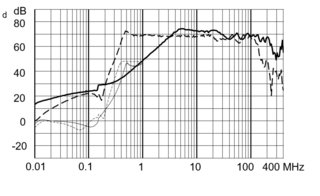

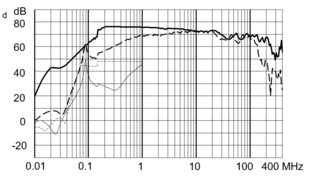

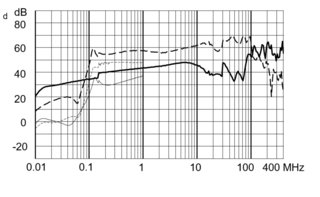

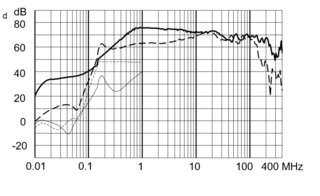

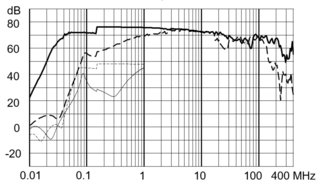

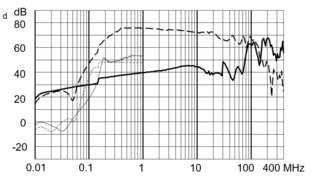

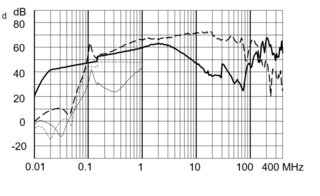

Attenuation Loss

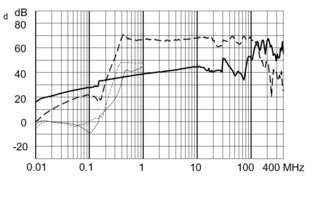

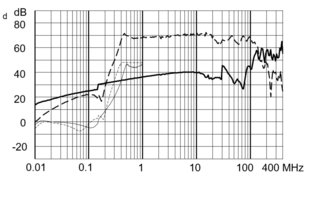

Standard version

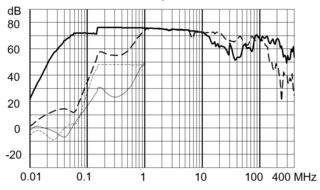

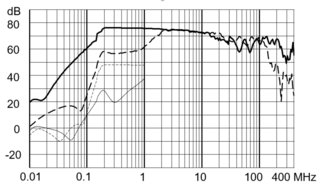

1A
FMBB-EP_Einfügungsdämpfungskurve_01A

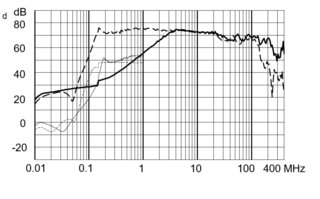

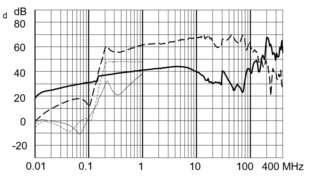

3 A
FMBB_EP_Einfügungsdämpfungskurve_SE_03A

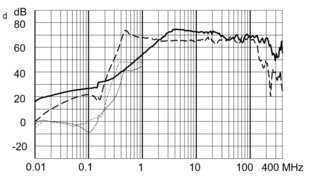

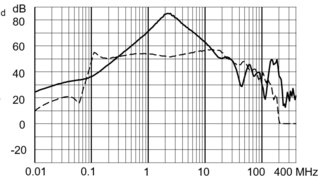

6 A
FMBB_EP_Einfügungsdämpfungskurve_SE_06A

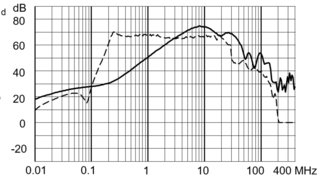

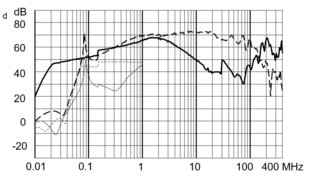

10 A
FMBB_EP_Einfügungsdämpfungskurve_SE_10A

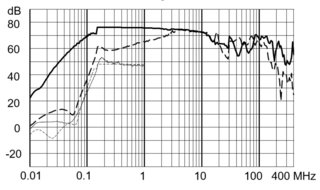

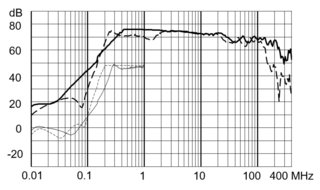

12 A
FMBB_EP_Einfügungsdämpfungskurve_SE_12A

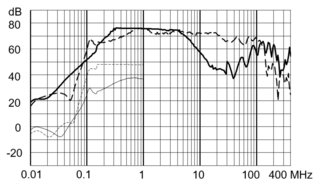

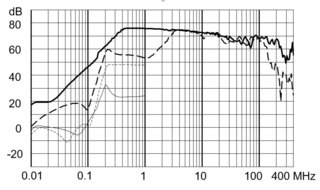

16 A
FMBB_EP_Einfügungsdämpfungskurve_SE_16A

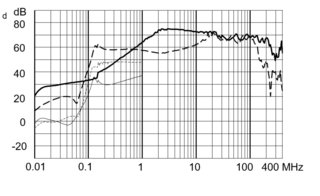

20 A
FMBB_EP_Einfügungsdämpfungskurve_SE_20A

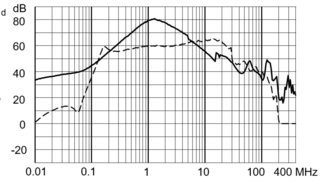

30 A
FMBB_EP_Einfügungsdämpfungskurve_SE_30A
36 A
FMBB_EP_Einfügungsdämpfungskurve_SE_36A

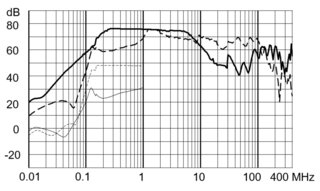

Medical version (M5)

1 A
FMBB_EP_Einfügungsdämpfungskurve_M5_3609_0140
3 A
FMBB_EP_Einfügungsdämpfungskurve_M5_3609_0340
6 A
FMBB_EP_Einfügungsdämpfungskurve_M5_3609_0640
10 A
FMBB_EP_Einfügungsdämpfungskurve_M5_36MC_1040
12 A
FMBB_EP_Einfügungsdämpfungskurve_M5_36MC_1240
16 A
FMBB_EP_Einfügungsdämpfungskurve_M5_36MD_1640
20 A
FMBB_EP_Einfügungsdämpfungskurve_M5_36ME_2040
30 A
FMBB_EP_Einfügungsdämpfungskurve_M5_36MF_3030
36 A
FMBB_EP_Einfügungsdämpfungskurve_M5_36MB_3630

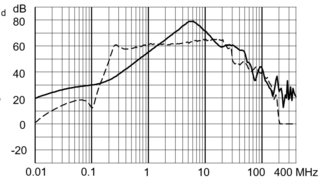

Medical version (M80)

1 A
FMBB_EP_Einfügungsdämpfungskurve_M80_3709_0140
3 A
FMBB_EP_Einfügungsdämpfungskurve_M80_3709_0340
6 A
FMBB_EP_Einfügungsdämpfungskurve_M80_3709_0640
10 A
FMBB_EP_Einfügungsdämpfungskurve_M80_37MC_1040
12 A
FMBB_EP_Einfügungsdämpfungskurve_M80_37MC_1240
16 A
FMBB_EP_Einfügungsdämpfungskurve_M80_37MD_1640
20 A
FMBB_EP_Einfügungsdämpfungskurve_M80_37ME_2040
30 A
FMBB_EP_Einfügungsdämpfungskurve_M80_37MF_3030
36 A
FMBB_EP_Einfügungsdämpfungskurve_M80_37MB_3630

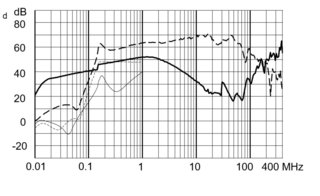

Low leakage current version

1 A
FMBB_EP_Einfügungsdämpfungskurve_LL_3709_0140
3 A
FMBB_EP_Einfügungsdämpfungskurve_LL_3709_0340
6 A
FMBB_EP_Einfügungsdämpfungskurve_LL_3709_0640
10 A
FMBB_EP_Einfügungsdämpfungskurve_LL_37MC_1040
12 A
FMBB_EP_Einfügungsdämpfungskurve_LL_37MC_1240
16 A
FMBB_EP_Einfügungsdämpfungskurve_LL_37MD_1640
20 A
FMBB_EP_Einfügungsdämpfungskurve_LL_37ME_2040
30 A
FMBB_EP_Einfügungsdämpfungskurve_LL_37MF_3030
36 A
FMBB_EP_Einfügungsdämpfungskurve_LL_37MB_3630

Short Table of Variants FMBB EP Open complete table FMBB EP

Rated current Filter-Type Terminal Order Number
Symbols, Footprints, 3D-Models Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

 Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...
[A]

1 Standard version Quick connect terminal 6.3 x 0.8 mm 3-123-509 ...
3 Standard version Quick connect terminal 6.3 x 0.8 mm 3-123-510 ...
6 Standard version Quick connect terminal 6.3 x 0.8 mm 3-123-511 ...
10 Standard version Quick connect terminal 6.3 x 0.8 mm 3-123-522 ...
12 Standard version Quick connect terminal 6.3 x 0.8 mm 3-123-523 ...
16 Standard version Quick connect terminal 6.3 x 0.8 mm 3-123-524 ...
20 Standard version Quick connect terminal 6.3 x 0.8 mm 3-123-525 ...
30 Standard version Bolt and nut M4 3-123-526 ...
36 Standard version Bolt and nut M4 3-123-527 ...
1 Low leakage current version Quick connect terminal 6.3 x 0.8 mm 3-123-537 ...
3 Low leakage current version Quick connect terminal 6.3 x 0.8 mm 3-123-538 ...
6 Low leakage current version Quick connect terminal 6.3 x 0.8 mm 3-123-539 ...
10 Low leakage current version Quick connect terminal 6.3 x 0.8 mm 3-123-540 ...
12 Low leakage current version Quick connect terminal 6.3 x 0.8 mm 3-123-541 ...
16 Low leakage current version Quick connect terminal 6.3 x 0.8 mm 3-123-542 ...
20 Low leakage current version Quick connect terminal 6.3 x 0.8 mm 3-123-543 ...
30 Low leakage current version Bolt and nut M4 3-123-544 ...
36 Low leakage current version Bolt and nut M4 3-123-545 ...
1 Medical Version (M5) Quick connect terminal 6.3 x 0.8 mm 3-123-528 ...
3 Medical Version (M5) Quick connect terminal 6.3 x 0.8 mm 3-123-529 ...
6 Medical Version (M5) Quick connect terminal 6.3 x 0.8 mm 3-123-530 ...
10 Medical Version (M5) Quick connect terminal 6.3 x 0.8 mm 3-123-531 ...
12 Medical Version (M5) Quick connect terminal 6.3 x 0.8 mm 3-123-532 ...
16 Medical Version (M5) Quick connect terminal 6.3 x 0.8 mm 3-123-533 ...
20 Medical Version (M5) Quick connect terminal 6.3 x 0.8 mm 3-123-534 ...
30 Medical Version (M5) Bolt and nut M4 3-123-535 ...
36 Medical Version (M5) Bolt and nut M4 3-123-536 ...
1 Medical Version (M80) Quick connect terminal 6.3 x 0.8 mm 3-142-126 ...
3 Medical Version (M80) Quick connect terminal 6.3 x 0.8 mm 3-142-127 ...
6 Medical Version (M80) Quick connect terminal 6.3 x 0.8 mm 3-142-128 ...
10 Medical Version (M80) Quick connect terminal 6.3 x 0.8 mm 3-142-129 ...
12 Medical Version (M80) Quick connect terminal 6.3 x 0.8 mm 3-142-130 ...
16 Medical Version (M80) Quick connect terminal 6.3 x 0.8 mm 3-142-131 ...
20 Medical Version (M80) Quick connect terminal 6.3 x 0.8 mm 3-142-132 ...
30 Medical Version (M80) Bolt and nut M4 3-142-133 ...
36 Medical Version (M80) Bolt and nut M4 3-142-134 ...

Leakage current according IEC 60939-1

20A, 30A and 36A medical filter M5 and M80, are only suitable for medical equipment intended for permanently connection to the mains.
800840020000006525

References / Document Downloads

LOADING...

References FMBB EP

Alternative: High attenuation version (1)

[Swipe to the left and right for more options]

Accessories FMBB EP

Accessories (1)

[Swipe to the left and right for more options]

DIN Rail Kit
DIN-Rail_Kit_Katalogbild

Mounting accessory for compact 1- and 3-phase filters


02.04.2025

en prod By changing the catalog version (Desktop <> Mobile), the system is resetting the chosen filters
