Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

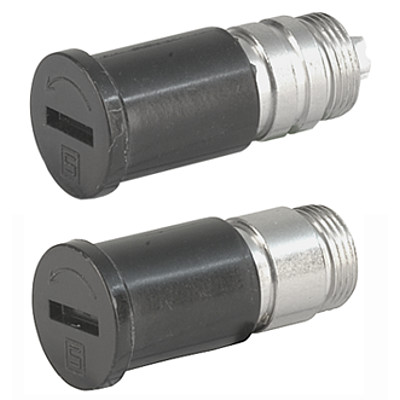

Carrier 6.3x32
Carrier 5x20
2 Variants
Fuse-Link
5 x 20 / 6.3 x 32 mm
Rated Voltage
500 VAC (VDE), 600 VAC/DC (UL/CSA)
Rated current
16 A (VDE), 30 A (UL/CSA)
Rated Power Acceptance IEC
4 W / 16 A @ Ta 23 °C
Degree of Protection
IP40
Admissible Ambient Temp.
-40 °C to 85 °C
Material: Cap
Thermoplastic, UL 94V-0
Storage Conditions
0 °C to 60 °C, max. 70% r.h.
Product Marking
,
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Product standards
Product standards that are referenced
| Organization | Design | Standard | Description |
|---|---|---|---|
|
Designed according to | IEC 60127-6 | Miniature fuses. Part 6. Fuse-holders for miniature fuse-links |
|
Designed according to | UL 4248-1 | Industrial Control Equipment |
|
Designed according to | CSA C22.2 no. 4248.1 | Industrial Control Equipment |
Application standards
Application standards where the product can be used
| Organization | Design | Standard | Description |
|---|---|---|---|
|
|
Suitable for applications acc. | IEC/UL 62368-1 | Audio/video, information and communication technology equipment - Part 1: Safety requirements |
|
|
Suitable for applications acc. | IEC 60335-1 | Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13. |
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. | |
|
SCHURTER AG | Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13. |
LOADING...
Short Table of Variants Caps to FUL, FUP, FUA Open complete table Caps to FUL, FUP, FUA
| Cap | Fuse-Link (mm) | Color |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... |
|---|---|---|---|---|---|---|
| slotted | 6.3 x 32 | black | 0031.2321 | ... | ||
| slotted | 5 x 20 | black | 0031.2323 | ... |
| Packaging Unit | Plastic Bag (25 pcs.) |
01.10.2024
