Technical Data
Free Sample
Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

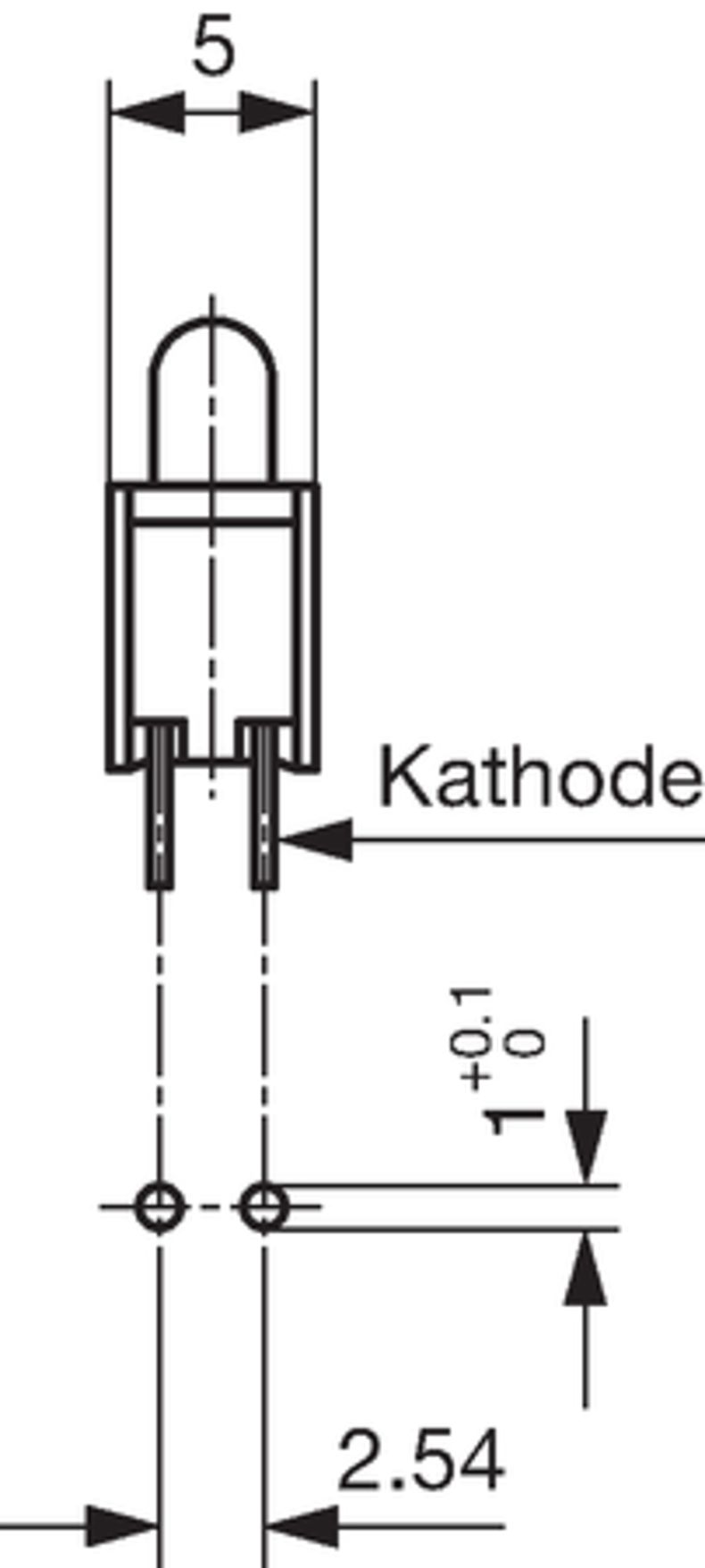

LED Holder with 3 mm LED
1 Indicator

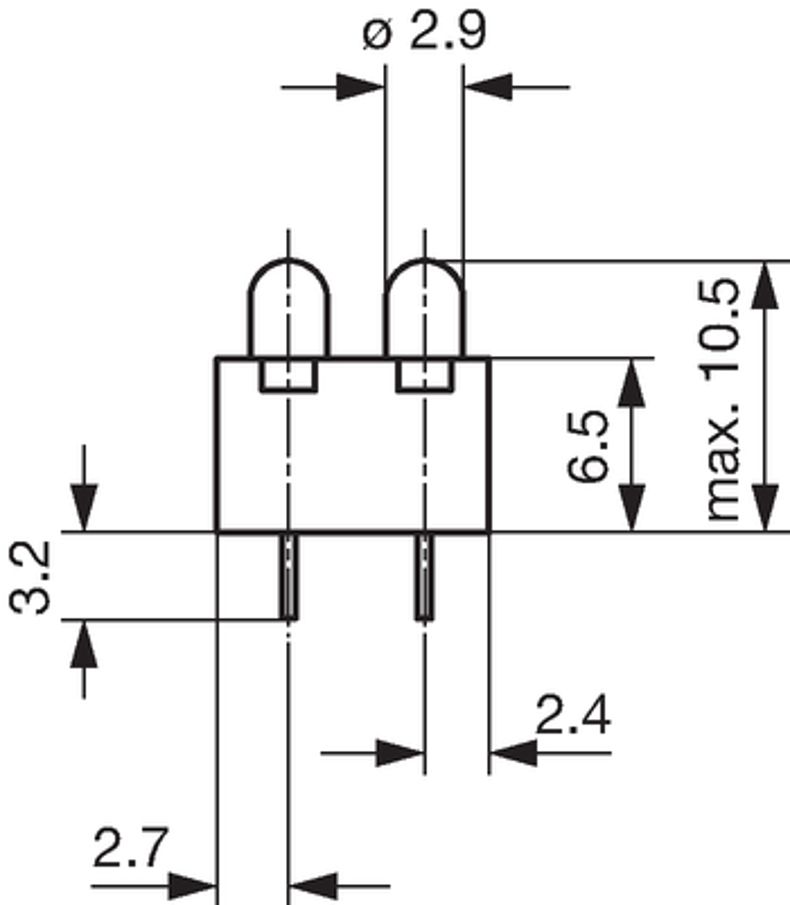

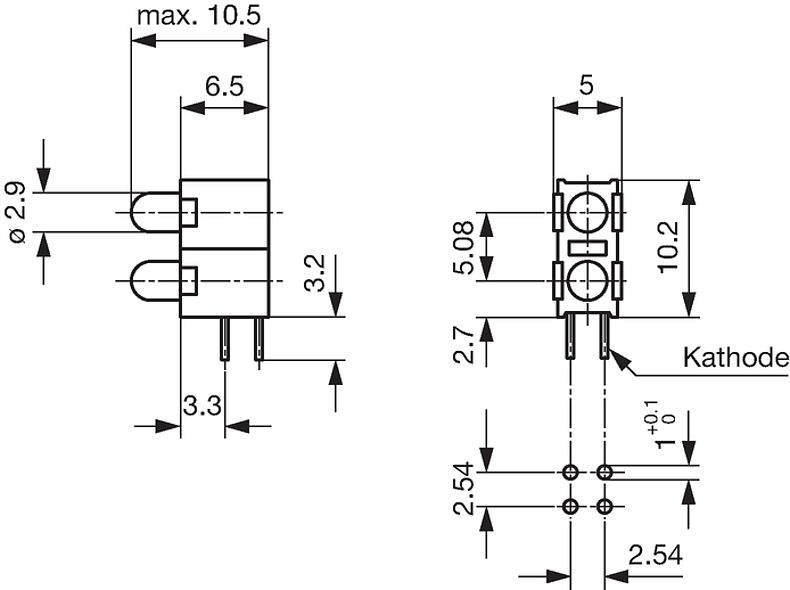

LED Holder with 3 mm LED
2 Indicator
LED yellow
Description
- PCB,:
- Up to 8 holders possible
- Arrangement in-line and in blocks
- Illumination with 3 mm LED

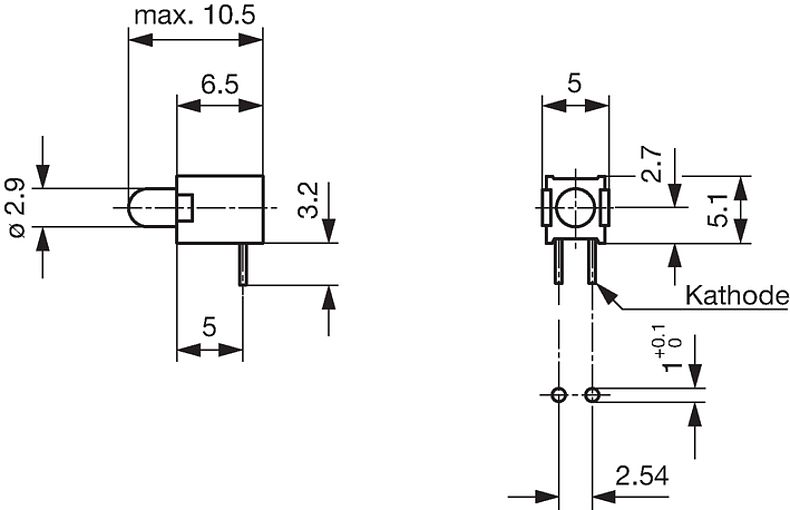

- Terminals angled or straight
Climatical Data
Allowable Operation Temp.
-25 to 85 °C
Storage Temperature
-55 to 100 °C
Soldering Data
Solderability
235 °C / 2 sec acc. to IEC 60068-2-20 , Test Ta, method 1
Resistance to Soldering Heat
260 °C / 5 sec acc. to IEC 60068-2-20 , Test Tb, method 1A
Material
Socket
Thermoplastic
LED
LED
Technical data LED see separate table
Technical Data LED
| LED red | LED green | LED yellow | |
| Let-through courrent DC␉IF max. | 30 mA | 30 mA | 30 mA |
| Power Loss␉PV max. | 100 mW | 100 mW | 100 mW |
| Forward voltage | typ. 2.0 V; max. 3.0 V | typ. 2.4 V; max. 3.0 V | typ. 2.4 V; max. 3.0 V |
| Luminous intensity | min. 6.3 mcd; typ. 10 mcd | min. 6.3 mcd; typ. 10 mcd | min. 6.3 mcd; typ. 12 mcd |
| Viewing angle | 60° | 60° | 60° |
| Peak wave lenght | typ. 635 nm | typ. 565 nm | typ. 585 nm |
| Reverse voltage | typ. 15 V | typ. 15 V | typ. 15 V |
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.
Compliances
The product complies with following Guide Lines
| Identification | Details | Initiator | Description |
|---|---|---|---|
|
SCHURTER AG | Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 | |
|
SCHURTER AG | On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. |
LOADING...
Short Table of Variants ASL Open complete table ASL
| Terminal direction | Type | Color LED |
Order Number
|
Free Sample |
Distributor Stock Check Distributor Stock Check
|
... | |||
|---|---|---|---|---|---|---|---|---|---|
| angled | 1x1 Array | green¹ | 0035.9640.4 | ... | |||||
| angled | 1x1 Array | yellow¹ | 0035.9640.7 | ... | |||||
| angled | 2x4 Array | green¹ / yellow² | 0035.9678.6666 | ... | |||||

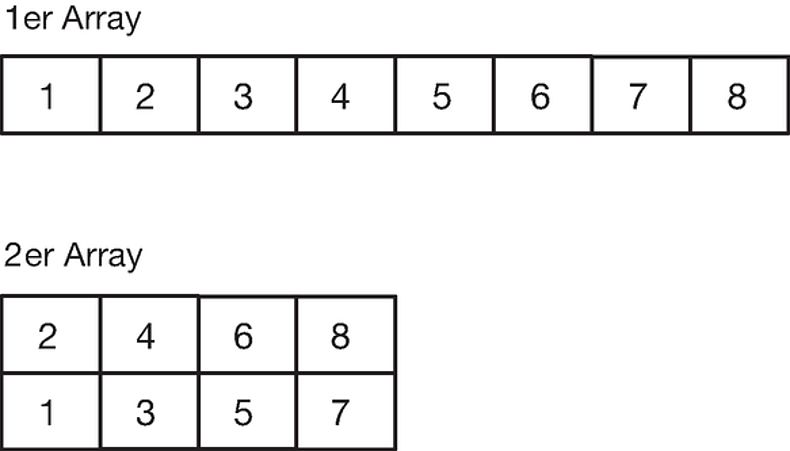

| In-line: The color is advised from the left to the right side. If the number of LED's is uneven the last index must be 1, 4 or 7. |
|||||||||
| In blocks: The color is advised from the buttom to the top (from the left to the right). |
|||||||||
| Packaging unit | 100 pcs |
