Series: 6250 / 6255

IEC Appliance Inlet C14 with Fuseholder 1- or 2-pole, mates to Felcom

12 Variants

Connectors (Inlets/Outlets)

C14

70° C

Approvals and Compliances

CAD

Description

Component: Snap-in version front side
2 Functions: Appliance Inlet Protection class I, Fuseholder for fuse-links 5 x 20 mm 1 or 2 pole
Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.
For PCB mounting, fits to Felcom

Characteristics

Individual components soldered on a printed circuit board
Plug removal necessary for fuse-link replacement
Suitable for use in equipment according to IEC/UL 62368-1

Detailed request for product

Details 6250 / 6255

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Electrical Data

Ratings IEC

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

10 A / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL

10 A / 250 VAC; 60 Hz

Allowable Operation Temperature

-25 °C to 70 °C

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP40 acc. to IEC 60529

Protection against electric shock

IP-Protection

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals

Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

For PCB mounting

Panel Thickness S

See details in drawing
Snapper

Snap-in: 1/1.2/1.5/2/2.5/3 mm

Material: Housing

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42
Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

C14 acc. to IEC 60320-1,
UL 60320-1, CSA C22.2 no. 60320-1 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I

Fuseholder

1.) fuse holder does not include circuit breakers
2.) Details about fuse-links can be found in the catalog under
FusesDetailed information on the fuse holder and fuse drawers can be found in the general product information.
Fuse drawer

1-/2-pole, Shocksafe category PC2 acc. to IEC 60127-6, UL 498,
for fuse-links 5 x 20 mm

Rated Power Acceptance @ Ta 23 °C

5 x 20: 2 W (1 pole)/ 1.6 W (2-pole) per pole

Power Acceptance @ Ta > 23°C

Admissible power acceptance at higher ambient temperature see derating curves

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: 6250 / 6255

Certificates	Certification Body	Description
VDE Approvals	VDE	Certificate Number: 40046421
UL Approvals	UL	UR File Number: E93617
CCC Approvals	CCC	CCC Certificate Number: 2018180204007242

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60320-1	Appliance couplers for household and similar general purposes
Designed according to	IEC 60127-6	Miniature fuses. Part 6. Fuse-holders for miniature fuse-links
Designed according to	IEC 61058-1	Switches for appliances. Part 1. General requirements
Designed according to	UL 60320-1	Standard for Attachment Plugs and Receptacles
Designed according to	CSA C22.2 no. 60320-1	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices

Application standards

Application standards where the product can be used

Design	Standard	Description
Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements
Suitable for applications acc.	IEC 60601-1	Medical electrical equipment - Part 1: General requirements for basic safety and essential performance
Suitable for applications acc.	IEC 60335-1	Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13.

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
White Paper Glow wire test	SCHURTER AG	Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.
Medical Equipment	SCHURTER AG	Suitable for use in medical equipment according to IEC/UL 60601-1 (1 MOOP, 1 MOPP)

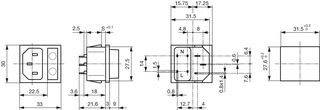

Dimensions [mm]

	Appliance inlet with fuseholder

	Appliance inlet with fuseholder

Derating Curves

	1-pole
Admissible power acceptance in Watt
	Ambient air temperature Ta °C

	2-pole
Admissible power acceptance in Watt per pole
	Ambient air temperature Ta °C

Short Table of Variants 6250 / 6255 Open complete table 6250 / 6255

Type	Panel Thickness s [mm]	Line Switch	Order Number	...

6250 / 6255	1	-	6250.5510	...
6250 / 6255	1	-	6255.5510	...
6250 / 6255	1.2	-	6250.5512	...
6250 / 6255	1.2	-	6255.5512	...
6250 / 6255	1.5	-	6250.5515	...
6250 / 6255	1.5	-	6255.5515	...
6250 / 6255	2	-	6250.5520	...
6250 / 6255	2	-	6255.5520	...
6250 / 6255	2.5	-	6250.5525	...
6250 / 6255	2.5	-	6255.5525	...
6250 / 6255	3	-	6250.5530	...
6250 / 6255	3	-	6255.5530	...

Packaging unit

50 Pcs

Table of Variants 6250 / 6255

Type	Panel Thickness s [mm]	Line Switch	Fuseholder	Connectors	Outlet	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form

6250 / 6255	1	-	1-pole	C14	-	6250.5510	50
6250 / 6255	1	-	2-pole	C14	-	6255.5510	50
6250 / 6255	1.2	-	1-pole	C14	-	6250.5512	50
6250 / 6255	1.2	-	2-pole	C14	-	6255.5512	50
6250 / 6255	1.5	-	1-pole	C14	-	6250.5515	50
6250 / 6255	1.5	-	2-pole	C14	-	6255.5515	50
6250 / 6255	2	-	1-pole	C14	-	6250.5520	50
6250 / 6255	2	-	2-pole	C14	-	6255.5520	50
6250 / 6255	2.5	-	1-pole	C14	-	6250.5525	50
6250 / 6255	2.5	-	2-pole	C14	-	6255.5525	50
6250 / 6255	3	-	1-pole	C14	-	6250.5530	50
6250 / 6255	3	-	2-pole	C14	-	6255.5530	50

Packaging unit

50 Pcs

References / Document Downloads

Mating Components 6250 / 6255

Mating Outlets/Connectors (7)

[Swipe to the left and right for more options]

4787

4787, Mounting: Screw-on mounting, Appliance Outlet: IEC Solder terminals, 10 A, Suitable for appliances with protection class I

5091

IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal

4782

4782 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4785

4785 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4300-06

4300-06 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C13

4781

4781 Mounting: Power Cord, Cable, Connector: IEC C15

4784

4784 Mounting: Power Cord, 3 x 1 mm² / 3 x 18 AWG, Cable, Connector: IEC C15
