4750 Strip Block for Snap-in Mounting with up to 7 IEC Appliance Outlets F

Series: 4750

Strip Block for Snap-in Mounting with up to 7 IEC Appliance Outlets F

38 Variants

Connectors (Inlets/Outlets)

70° C

Approvals and Compliances

CAD

Video

Power Distribution Units

Description

Panel mount
Snap-in version front side (1.2 / 1.5 / 1.7 mm)

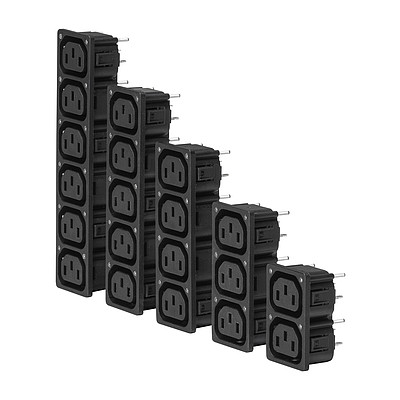

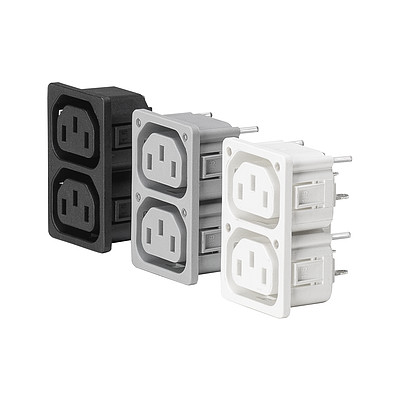

Configurable Strip block from 2 up to 7 outlets type F
Cord retention for cordsets with V-Lock, Twylock or P-Lock
Pre-assembled Light Pipe for status indication

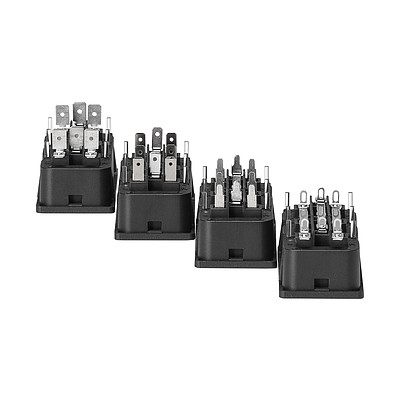

Solder / PCB / QC (4.8 / 6.3 x 0.8) mm

Unique Selling Proposition

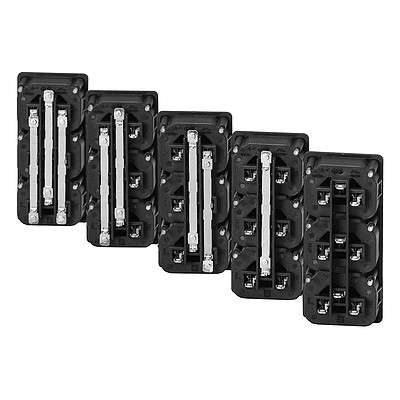

Configurable Bus bar (L, N, PE)
Optionally with or without light pipes on L or N side
Color coding in black (grey and white upon request)
Solder / PCB / QC (4.8 / 6.3 x 0.8 mm)

Characteristics

Compact solution for intelligent PDU applications
Suitable for use in equipment according to IEC/UL 62368-1

Other versions on request

Other panel thickness
Other Light Pipe lengths
Color coding in White and Grey
Other terminals on request

Detailed request for product

The integration of light pipes in the appliance outlet provides status indication in smart PDUs. See PDU Landing Page for more information. Power Distribution Units

Details 4750

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Ratings IEC

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

10 A / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL

15 A / 250 VAC; 60 Hz

Dielectric Strength

Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 2 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)

Allowable Operation Temperature

-25 °C to 70 °C pin temperatur

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP20 acc. to IEC 60529

Protection against electric shock

IP-Protection

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals

Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

Solder / PCB / QC (4.8 / 6.3 x 0.8) mm

Panel Thickness S

See details in drawing
Snapper

Snap-in (1.2 / 1.5 / 1.7) mm
tolerance +0.0/-0.1

Light Pipe Length L

24.5 / 27.5 / 28.5 / 32.7 / 37.4 / 50.0 mm

Material: Housing

Thermoplastic, black / grey / white, UL 94V-0

Appliance inlet/-outlet

Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42
Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

F acc. to IEC 60320-3
UL 60320-1 CSA C22.2 no. 60320-1 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type:

Certificates	Certification Body	Description
VDE Approvals	VDE	VDE Certificate Number: 40048640
UL Approvals	UL	UR File Number: E502078
CCC Approvals	CCC	CCC Certificate Number: 2018180204005769

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60320-1	Appliance couplers for household and similar general purposes
Designed according to	IEC 60320-3	Appliance couplers for household and similar general purposes
Designed according to	UL 60320-1	Standard for Attachment Plugs and Receptacles
Designed according to	CSA C22.2 no. 60320-1	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

Dimensions [mm]

	Socket Length

	Max. Hight Socket + Terminal

	Snap-In and Light-Pipes

	Drilling diagram for PCB terminals: All bussed [mm]

	Drilling diagram for PCB terminals: L individua andl N/PE bussed [mm]

	Drilling diagram for PCB terminals: L/N individual and PE bussed [mm]

	Drilling diagram for PCB terminals: L/N/PE individual [mm]

Short Table of Variants 4750 Open complete table 4750

Outlets	Panel Thickness [mm]	Light pipe L side	Order Number	...


2	1.5 mm	L=27.5 mm	3-135-277	...
2	1.5 mm	L=27.5 mm	3-135-278	...
2	1.5 mm	-	3-135-157	...
2	1.5 mm	-	3-124-296	...
3	1.5 mm	L=27.5 mm	3-124-314	...
3	1.5 mm	L=27.5 mm	3-135-586	...
3	1.5 mm	L=27.5 mm	3-135-539	...
3	1.7 mm	-	3-104-399	...
3	1.5 mm	-	3-124-302	...
3	1.5 mm	-	3-135-537	...
4	1.5 mm	-	3-104-370	...
4	1.5 mm	-	3-104-412	...
4	1.5 mm	L=27.5 mm	3-124-315	...
4	1.5 mm	L=27.5 mm	3-135-540	...
4	1.5 mm	L=27.5 mm	3-135-541	...
4	1.5 mm	L=27.5 mm	3-128-802	...
4	1.5 mm	-	3-104-400	...
4	1.5 mm	-	3-124-303	...
5	1.5 mm	-	3-135-284	...
5	1.5 mm	L=27.5 mm	3-135-292	...
5	1.5 mm	L=27.5 mm	3-135-293	...
5	1.5 mm	-	3-124-304	...
6	1.5 mm	-	3-104-371	...
6	1.5 mm	L=27.5 mm	3-120-308	...
6	1.5 mm	L=27.5 mm	3-120-309	...
6	1.7 mm	L=27.5 mm	3-128-805	...
6	1.5 mm	L=27.5 mm	3-124-317	...
6	1.5 mm	L=27.5 mm	3-124-308	...
6	1.5 mm	L=27.5 mm	3-135-552	...
6	1.5 mm	L=27.5 mm	3-135-553	...
6	1.5 mm	-	3-120-305	...
6	1.5 mm	-	3-104-402	...
6	1.7 mm	-	3-128-806	...
6	1.5 mm	-	3-124-305	...
7	1.5 mm	-	3-135-294	...
7	1.5 mm	L=27.5 mm	3-135-295	...
7	1.5 mm	L=27.5 mm	3-135-296	...
7	1.5 mm	-	3-124-306	...

Table of Variants 4750

Outlets	Panel Thickness [mm]	Light pipe L side	Light pipe N side	Color	Hard-Wired Bus	Position of Terminal on bus	Terminal type	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form
							(L/N/PE)

2	1.5 mm	L=27.5 mm	-	black	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-277	120
2	1.5 mm	L=27.5 mm	-	white	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-278	120
2	1.5 mm	-	-	black	L/N/PE bussed	Top and bottom	Solder	3-135-157	120
2	1.5 mm	-	-	black	L/N/PE bussed	Bottom	Solder	3-124-296	120
3	1.5 mm	L=27.5 mm	L=27.5 mm	black	L individual, N/PE bussed	Bottom	PCB	3-124-314	80
3	1.5 mm	L=27.5 mm	-	black	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-586	80
3	1.5 mm	L=27.5 mm	-	white	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-539	80
3	1.7 mm	-	-	black	L/N/PE bussed	Top	Solder	3-104-399	80
3	1.5 mm	-	-	black	L/N/PE bussed	Bottom	Solder	3-124-302	80
3	1.5 mm	-	-	black	L/N/PE bussed	Top and bottom	Solder	3-135-537	80
4	1.5 mm	-	-	black	L/N/PE individual	Not bussed	PCB	3-104-370	60
4	1.5 mm	-	L=27.5 mm	black	L individual, N/PE bussed	Top	PCB	3-104-412	60
4	1.5 mm	L=27.5 mm	L=27.5 mm	black	L individual, N/PE bussed	Bottom	PCB	3-124-315	60
4	1.5 mm	L=27.5 mm	-	black	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-540	60
4	1.5 mm	L=27.5 mm	-	white	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-541	60
4	1.5 mm	L=27.5 mm	L=27.5 mm	white	L/N/PE bussed	Top	QC 6.3 x 0.8 mm	3-128-802	60
4	1.5 mm	-	-	black	L/N/PE bussed	Top	Solder	3-104-400	60
4	1.5 mm	-	-	black	L/N/PE bussed	Bottom	Solder	3-124-303	60
5	1.5 mm	-	-	black	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-284	40
5	1.5 mm	L=27.5 mm	-	black	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-292	40
5	1.5 mm	L=27.5 mm	-	white	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-293	40
5	1.5 mm	-	-	black	L/N/PE bussed	Bottom	Solder	3-124-304	40
6	1.5 mm	-	-	black	L/N/PE individual	Not bussed	PCB	3-104-371	40
6	1.5 mm	L=27.5 mm	L=27.5 mm	black	N individual, L/PE bussed	Top	PCB	3-120-308	40
6	1.5 mm	L=27.5 mm	L=27.5 mm	black	L/N individual, PE bussed	Top	PCB	3-120-309	40
6	1.7 mm	L=27.5 mm	L=27.5 mm	black	L/N individual, PE bussed	Bottom	PCB	3-128-805	40
6	1.5 mm	L=27.5 mm	L=27.5 mm	black	L individual, N/PE bussed	Bottom	PCB	3-124-317	40
6	1.5 mm	L=27.5 mm	L=27.5 mm	black	L/N individual, PE bussed	Bottom	PCB	3-124-308	40
6	1.5 mm	L=27.5 mm	-	black	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-552	40
6	1.5 mm	L=27.5 mm	-	white	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-553	40
6	1.5 mm	-	-	black	L/N/PE bussed	Top and bottom	QC 6.3 x 0.8 mm	3-120-305	40
6	1.5 mm	-	-	black	L/N/PE bussed	Top	Solder	3-104-402	40
6	1.7 mm	-	-	black	L/N/PE bussed	Top and bottom	Solder	3-128-806	40
6	1.5 mm	-	-	black	L/N/PE bussed	Bottom	Solder	3-124-305	40
7	1.5 mm	-	-	black	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-294	32
7	1.5 mm	L=27.5 mm	-	black	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-295	32
7	1.5 mm	L=27.5 mm	-	white	L individual, N/PE bussed	Top and bottom	QC 4.8 x 0.8 mm	3-135-296	32
7	1.5 mm	-	-	black	L/N/PE bussed	Bottom	Solder	3-124-306	32
