Adapter to OGN  Plugging aid
Plugging aid

Series: Adapter to OGN

Fuse Carriage with Handle for OGN

Free Sample Request

2 Variants


Description

  • Better access to fuse-links on PCB's

Applications

  • Printed circuit boards with tightly packed components. Colour coding allows for quick and safe replacement of fuses.

Fuse-Link

5 x 20 mm

Rated Power Acceptance IEC

2.5 W / 10 A @ Ta 23 °C

Admissible Ambient Temp.

-40 °C to 85 °C

Material: Cover

Thermoplastic black / white UL 94V-0

Storage Conditions

0 °C to 60 °C, max. 70% r.h.

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.


Application standards

Application standards where the product can be used

Organization Design Standard Description
Approval marks IEC_Certification_Body Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements


Compliances

The product complies with following Guide Lines

Identification Details Initiator Description
Environment_Safety RoHS_Logo_color_CMYK_tif SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
Environment_Safety China_RoHS_e_konform_eps SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
Environment_Safety REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.

010020600000000674
LOADING...

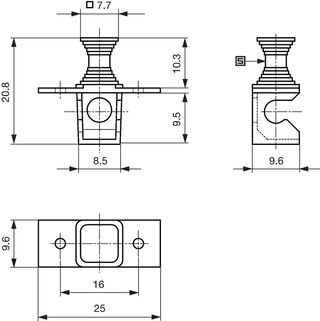

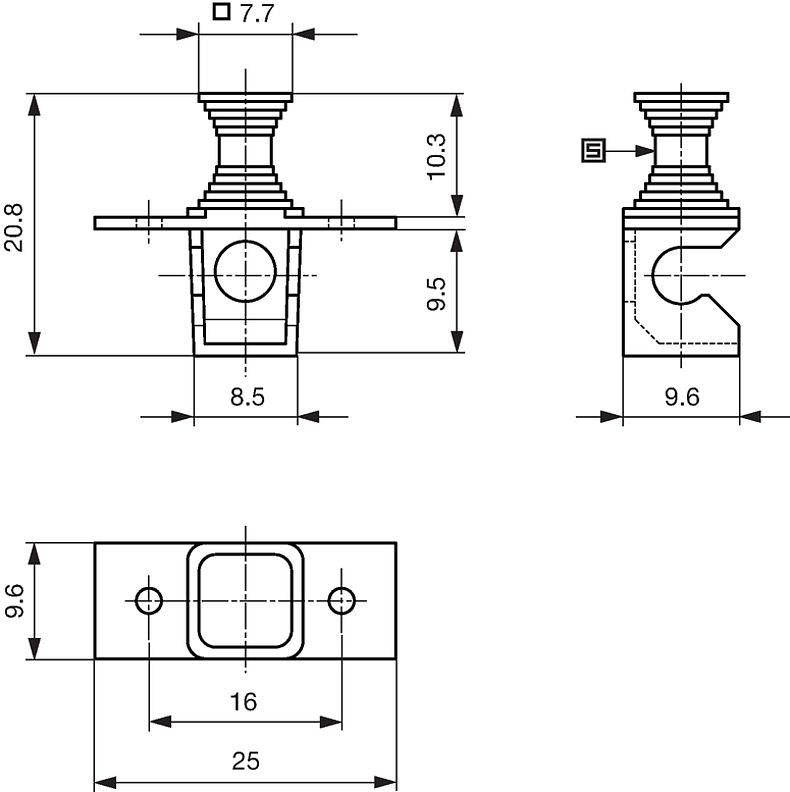

Dimension [mm]


Short Table of Variants Adapter to OGN Open complete table Adapter to OGN

Accessories Description Color Order Number
Free Sample

Free Sample


Please ask for free sample in order to check if the products meets your requirement for your application.
Send your delivery adress and your specific requirements.

Distributor Stock Check

Distributor Stock Check


The following links refers to the inquiry form for distributors stock information of the selected products. It allows checking for the available amount and optionally to place an order at your selected partner.
The stock availability at the distributors may also be called up separately and the desired product manually entered.
Stock Check Distributor

...

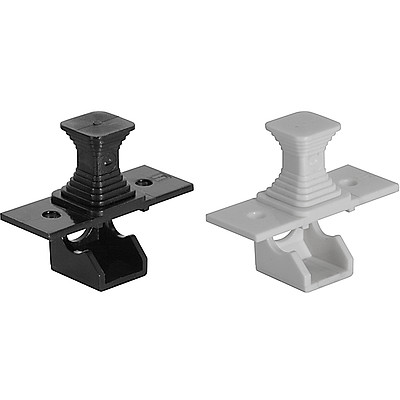

Pluggin aid - black 0853.1201 ...
Pluggin aid - white 0853.1202 ...

Packaging Unit    Bulk (100 pcs.)

010020600000000674
LOADING...
Mating adapter to (2)
