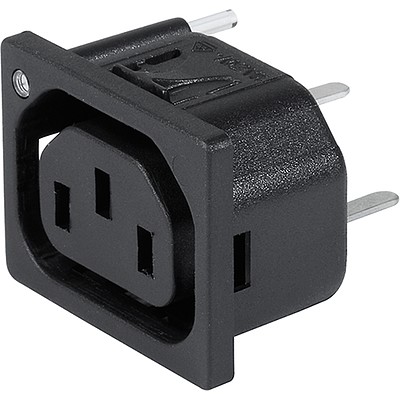

Light Pipes on N side

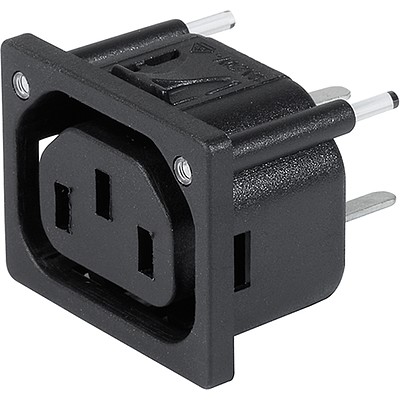

Light Pipes N and L side

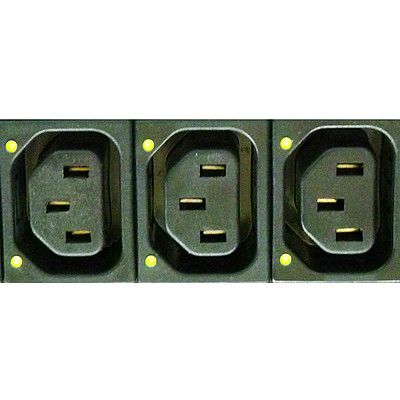

Example PDU with integrated light Pipes

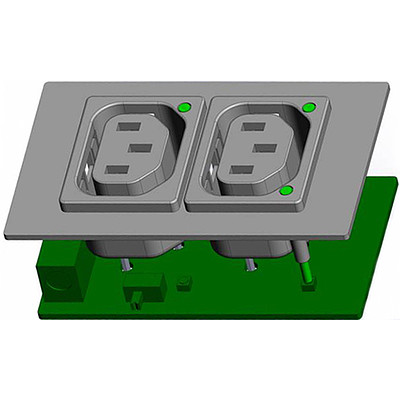

10A outlet on PCB with Light Pipes

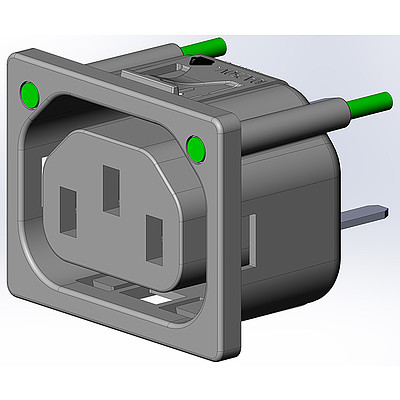

Snap-In Version with assembled Light Pipes

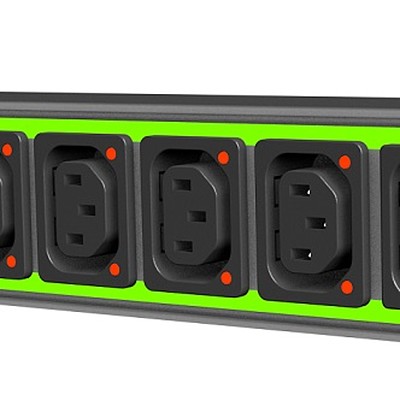

Power Distribution Unit (PDU) with integrated light pipes

Series: 6600-5

IEC Appliance Outlet F, Integrated Light Pipes, PCB terminals, Color Coding

8 Variants

Connectors (Inlets/Outlets)

70° C

Approvals and Compliances

CAD

Power Distribution Units

Description

Panel mount: Snap-in version front side
Connector, Pin temperature 70 °C, Protection class I
Pre-assembled light pipes
For PCB mounting

Unique Selling Proposition

Variants made from plant-based plastics
Bio-plastic with 2.75 kg CO2 reduction per packaging unit

Other versions on request

Other panel thickness
Other lenghts on terminals and light pipes
Quick connect or solder terminals (incl. different terminals on L, N, PE)

Detailed request for product

See PDU Landing Page for more information to status indication with Light pipes. Power Distribution Units

Details 6600-5

Technical Data

Approvals and Compliances

CAD-Drawings

Dimension

Ratings IEC

The electrical characteristics describe the approved operating values for the state of rated current and rated voltage considering the mentioned conditions.
General information on electrical characteristics colors of fuses
Ratings IEC, UL/CSA General information on the rated current and the rated voltage at EMC products
Rated Voltage Rated current The values are different depending on the approval body and therefore are referenced in the corresponding admission cards for the respective product families. Details about the approvals and ratings are listed in the data sheets.
Search approval information for different families
Approvals

10 A / 250 VAC; 50 Hz

Ratings UL/CSA

Ratings UL

15 A / 250 VAC; 60 Hz

Dielectric Strength

Information about the maximum permissible voltage, to avoid a voltage breakdown due to insulation damage.
Dielectric Strength

> 1.5 kVAC between L-N
> 3 kVAC between L/N-PE
(1 min/50 Hz)

Allowable Operation Temperature

-25 °C to 70 °C

IP-Protection

The IP code consists of a two-digit number, which indicates the respective degree of protection.
The first digit specifies the protection from the penetration of foreign objects, the second digit the protection from water penetration with harmful effects. Details about IP protection degree can be looked up in the general product information
IP-Protection

front side IP20 acc. to IEC 60529

Protection against electric shock

IP-Protection

Suitable for appliances with protection class I acc. to IEC 61140

Terminal

Terminals

Terminals according IEC Standard.
Detailed information about terminals can be looked up in the date sheet or in the general product information.
Terminal

For PCB mounting

Panel Thickness S

See details in drawing
Snapper

Snap-in: 1.7 / 2 mm

Material: Housing

Thermoplastic, black, UL 94V-0

Appliance inlet/-outlet

Connector type according to IEC 60320-1 resp. IEC 60320-2-2, UL498, CSA C22.2 no.42
Details on connectors and their names can be found in the general product information
Appliance Couplers Mating Connectors Term explanation Special Connector Designs

F acc. to IEC 60320-3
UL 60320-1, CSA C22.2 no. 60320-1 (for cold conditions) pin-temperature 70 °C, 10 A, Protection Class I

Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in Details about Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER.

Approvals

The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.

Approval Reference Type: 6600-5

Certificates	Certification Body	Description
VDE Approvals	VDE	Certificate Number: 40035679
UL Approvals	UL	UR File Number: E103791
CCC Approvals	CCC	CCC Certificate Number: 2018180204005386

Product standards

Product standards that are referenced

Design	Standard	Description
Designed according to	IEC 60320-3	Appliance couplers for household and similar general purposes
Designed according to	UL 60320-1	Standard for Attachment Plugs and Receptacles
Designed according to	CSA C22.2 no. 60320-1	General Use Receptacles, Attachment Plugs, and Similar Wiring Devices

Application standards

Application standards where the product can be used

Organization	Design	Standard	Description
	Suitable for applications acc.	IEC/UL 62368-1	Audio/video, information and communication technology equipment - Part 1: Safety requirements
	Suitable for applications acc.	IEC 60335-1	Safety of electrical appliances for household and similar purposes. Meets the requirements for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 & -13.

Compliances

The product complies with following Guide Lines

Details	Initiator	Description
CE declaration of conformity	SCHURTER AG	The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008.
UKCA declaration of conformity	SCHURTER AG	The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008.
RoHS	SCHURTER AG	Directive RoHS 2011/65/EU, Amendment (EU) 2015/863
China RoHS	SCHURTER AG	The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS.
REACH	SCHURTER AG	On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force.
	SCHURTER AG	V-Lock system are based on a matching plug-dose combination. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset.
White Paper Glow wire test	SCHURTER AG	Meets the requirements of IEC 60335-1 for appliances in unattended use. This includes the enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12 &-13.

Dimensions [mm]



	Terminal: X QC 4.8x0.8: 26.2 QC 6.3x0.8: 27.2 Solder: 23.8 PCB: 29.8 A: Light pipe position A B: Light pipe position B Light pipe length: L Panel thickness: S

See Application Note for more information to status indication with Light pipes.
Application Note

Short Table of Variants 6600-5 Open complete table 6600-5

Panel Thickness	Terminal	Light pipe N side	Order Number	...

2.0	PCB		3-101-689	...
2.0	PCB		3-101-686	...
2.0	PCB	•	3-101-687	...
2.0	PCB	•	3-101-685	...
1.7	PCB		3-100-406	...
1.7	PCB		3-100-404	...
1.7	PCB	•	3-100-405	...
1.7	PCB	•	3-100-403	...

Packaging unit

50 Pcs

Table of Variants 6600-5

Panel Thickness	Terminal	Light pipe N side	Light pipe L side	Order Number	PU Packaging unit The packaging unit is the amount of parts in a standard package. Please contact SCHURTER for further assistance: Contact Form

2.0	PCB			3-101-689	50
2.0	PCB		•	3-101-686	50
2.0	PCB	•		3-101-687	50
2.0	PCB	•	•	3-101-685	50
1.7	PCB			3-100-406	50
1.7	PCB		•	3-100-404	50
1.7	PCB	•		3-100-405	50
1.7	PCB	•	•	3-100-403	50

Packaging unit

50 Pcs

References / Document Downloads

References 6600-5

Mating Components 6600-5

Mating Inlets/Plugs (5)

[Swipe to the left and right for more options]

4732

4732, Mounting: Power Cord, Plug: IEC E, Cable

4735

4735, Mounting: Power Cord, Plug: IEC E, Cable

9009

9009, Mounting: Plug: IEC E, Screw clamps

4733

4733, Mounting: Power Cord, Plug: IEC E, Cable

4736

4736, Mounting: Power Cord, Plug: IEC E, Cable

Mating Inlets/Plugs shuttered (5)

[Swipe to the left and right for more options]

3-100-354

VAC13KS, Interconnection, V-Lock cord retaining, 0.6 m, Connector IEC C13, H05VV-F3G0.75 / SVT 3x18 AWG, black

3-100-361

VAC13KS, Interconnection, V-Lock cord retaining, 3.0 m, Connector IEC C13, SVT 3x18 AWG, black

3-100-734

VAC13KS, Interconnection, V-Lock cord retaining, 1.8 m, Connector IEC C13, H05VV-F3G0.75 / SVT 3x18 AWG, black

6051.2007

VAC13KS, Interconnection, V-Lock cord retaining, 2.0 m, Connector IEC C13, H05VV-F3G0.75 / SVT 3x18 AWG, black

6051.2027

VAC13KS, Interconnection, V-Lock cord retaining, 1.2 m, Connector IEC C13, H05VV-F3G0.75, black
